1 2

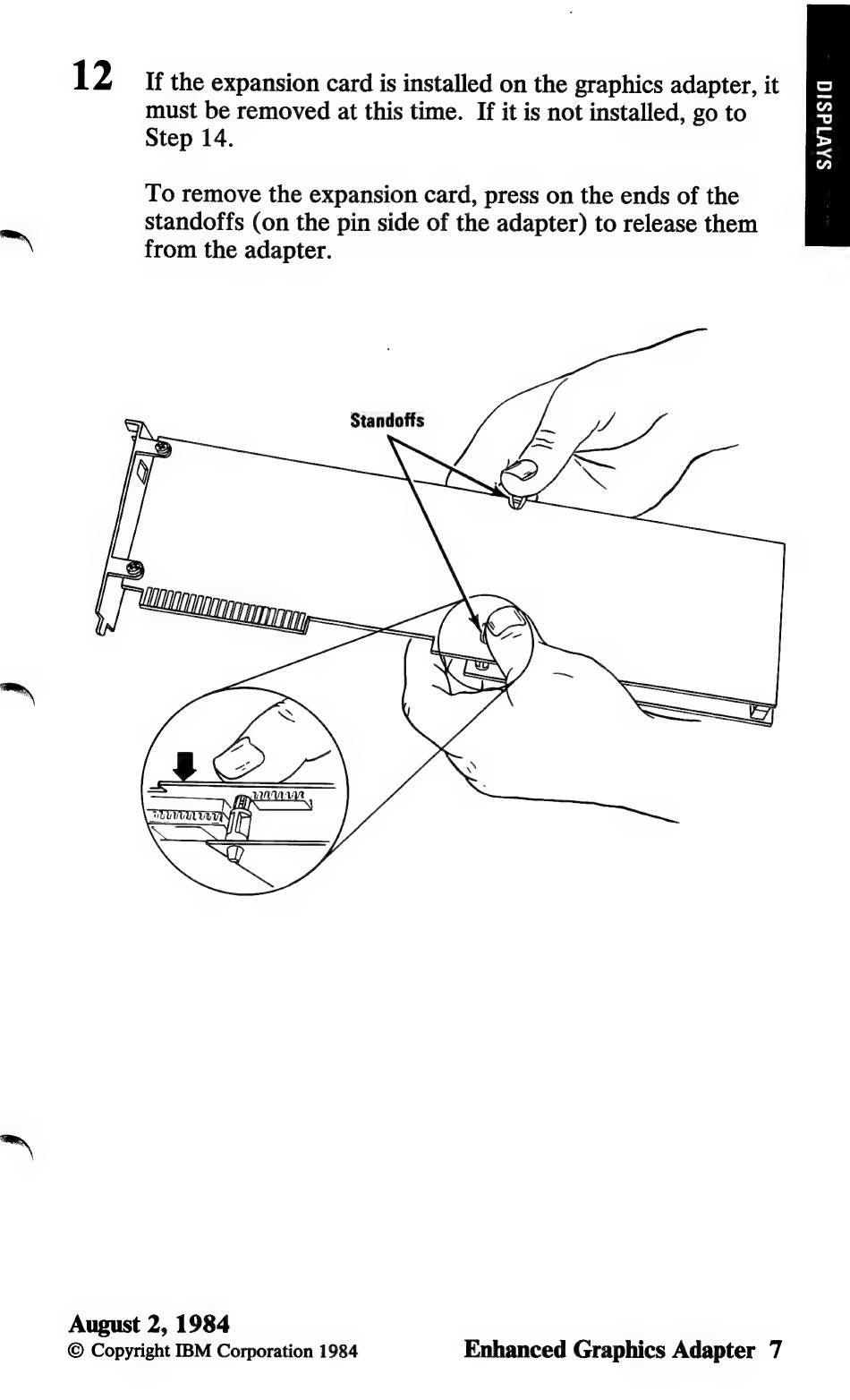

If the expansion card is installed on the graphics adapter, it
must be removed at this time. If it is not installed, go to
Step 14.
om
"
©
|
re
>
=<
"
To remove the expansion card, press on the ends of the
standoffs (on the pin side of the adapter) to release them
from the adapter.
Standoffs
August 2, 1984
© Copyright IBM Corporation 1984
Enhanced Graphics Adapter 7
