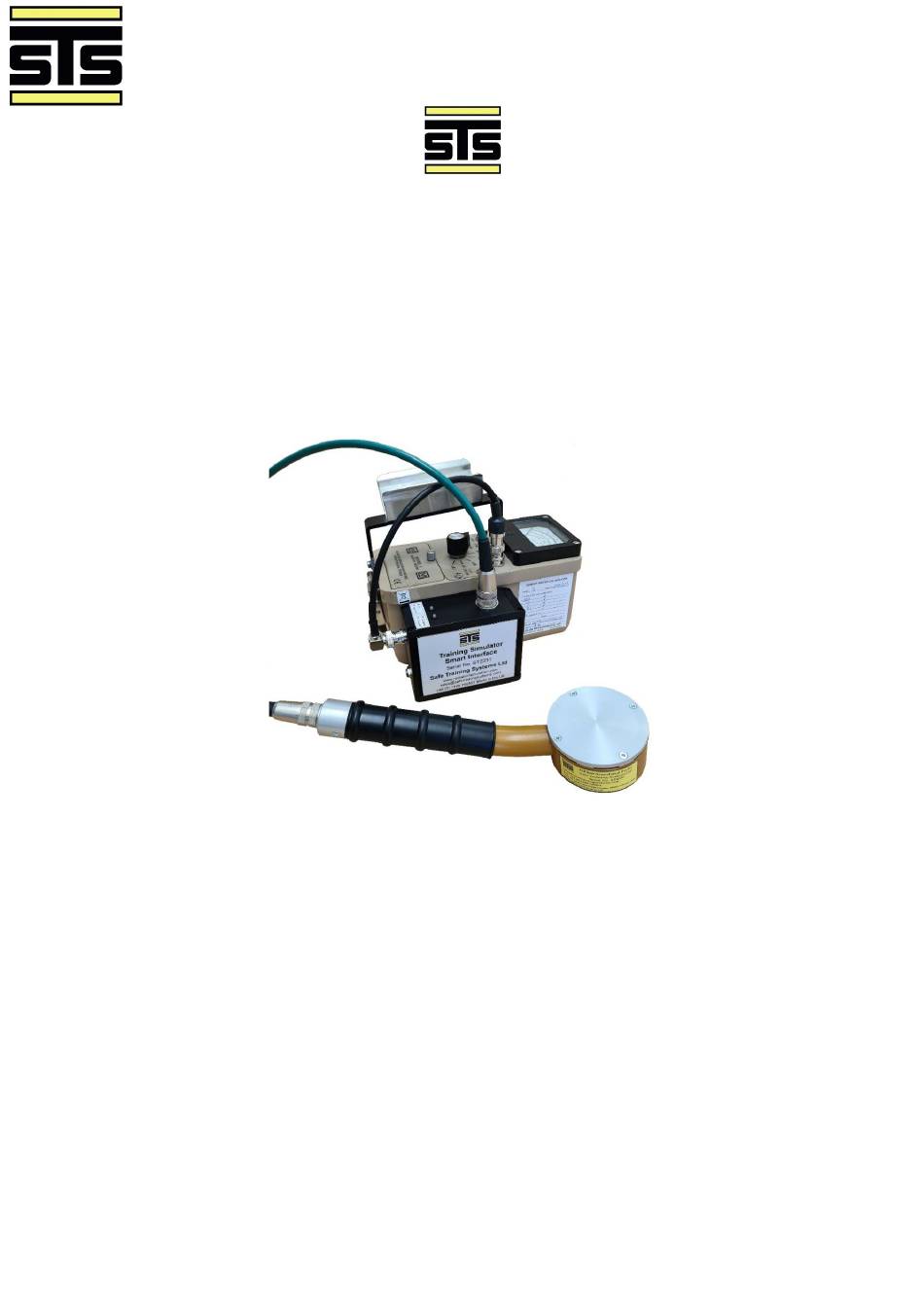

Version No. 1.0
MANUAL
Safe Training Systems Ltd
STS Smart Interface for Ludlum 3/12
and HP260 Probe
Ionising Radiation Simulator
Distributed by:
Radiation Safety & Control Services, Inc.
93 Ledge road, Seabrook,
New Hampshire, 03874, USA
Tel 1 800 525 8339
Website: www.radsafety.com
e-mail : info@radsafety.com
Manufactured by:
Safe Training Systems Ltd,
Unit 33 Space Business Centre, Molly Millars Lane,
Wokingham, RG41 2PQ, UK
Revised May 2023
User Manual STS Smart Interface for Ludlum 3/12 and HP260 Probe 2023
Page 1 of 17
Advertisement
Table of Contents
Related Manuals for STS Smart Interface 800 Series
Summary of Contents for STS Smart Interface 800 Series
- Page 1 : info@radsafety.com Manufactured by: Safe Training Systems Ltd, Unit 33 Space Business Centre, Molly Millars Lane, Wokingham, RG41 2PQ, UK Revised May 2023 User Manual STS Smart Interface for Ludlum 3/12 and HP260 Probe 2023 Page 1 of 17...
- Page 2 Thank you for purchasing a Safe Training Systems simulator which we expect will give you many years of service. Established in 1991 Safe Training Systems Ltd (STS) specialises in the design & manufacture of simulators for realistic training within industries using hazardous materials.
-
Page 3: Table Of Contents
Use of Radiation Simulants Liquid Source LS1 Solid Source SS4 Detector Cleaning Potential interferences with STS Systems SECTION 3 ____________________________________________________________________________________________ TECHNICAL INFORMATION Set up Response Maintenance Warranty User Manual STS Smart Interface for Ludlum 3/12 and HP260 Probe 2023 Page 3 of 17... -
Page 4: Warning Notices
1.1 Control of Simulators STS aims to make simulators that are indistinguishable from real instruments, so that the person being instructed experiences the best possible training. A consequence of this is that there is a possibility that the simulator could be mistaken for a real instrument, and then used for a real monitoring task, when, obviously, no readings would result. -
Page 5: Intrinsic Safety
In particular, STS systems allow the trainee to master the skill of probe manipulation and also to develop an understanding of the ease with which contamination spreads. -
Page 6: Liquid Source Ls1
The discipline of good probe manipulation near surfaces is thus instilled by the system, resulting in good practice by the trainee when set to work. User Manual STS Smart Interface for Ludlum 3/12 and HP260 Probe 2023 Page 6 of 17... -
Page 7: Solid Source Ss4
The useful training period by SS4 is about 2 hours for a 0.3g pile of material, after which the signal will decrease, reaching zero cps after about 4 hours. An inert powder will remain after the signal has completely disappeared. User Manual STS Smart Interface for Ludlum 3/12 and HP260 Probe 2023 Page 7 of 17... -
Page 8: Detector Cleaning
These problems can usually be identified by moving the instrument to another location. SECTION 3 ____________________________________________________________________________________________ TECHNICAL INFORMATION User Manual STS Smart Interface for Ludlum 3/12 and HP260 Probe 2023 Page 8 of 17... - Page 9 Display. This box is ideal for the use of smaller probes such as the STS HP260 and HP210 probes Dimensions (mm)
-
Page 10: Set Up
– These are different style connectors and will not reliably mate the other way round. The STS probe should then be connector to the 5 pin connector on the top of the interface box. The STS circuit is automatically switched on from the HV line in the Ludlum, so turning on the Ludlum will start the STS circuit and the probe detector and fan will initialise (please wait approx. -
Page 11: Maintenance
– fully charged (green) charging (red). It should be remembered the Ludlum instrument also contains batteries and the battery level indicator will show when these require changing. User Manual STS Smart Interface for Ludlum 3/12 and HP260 Probe 2023 Page 11 of 17... - Page 12 Carefully lift the detector plate from the probe body care must be taken not to remove this by pulling on the wires which may cause damage. User Manual STS Smart Interface for Ludlum 3/12 and HP260 Probe 2023 Page 12 of 17...
- Page 13 Screw the brass fitting in slowly making sure that the spring doesn’t deform and get trapped. User Manual STS Smart Interface for Ludlum 3/12 and HP260 Probe 2023 Page 13 of 17...
- Page 14 There is an arrow on the fan body indicating the direction of air flow. This should be pointing towards the detector block. User Manual STS Smart Interface for Ludlum 3/12 and HP260 Probe 2023 Page 14 of 17...
- Page 15 Version No. 1.0 Remount the assembly onto the detector plate with the two screws. User Manual STS Smart Interface for Ludlum 3/12 and HP260 Probe 2023 Page 15 of 17...
-
Page 16: Warranty
Align the face plate with the holes in the probe body and replace the 4 screws. 3.4 Warranty All STS instruments are covered automatically by a 1 year warranty from the date of receipt of the instrument by the customer. The warranty covers the failure of the instrument due to component breakdown. - Page 17 Product: STS Instruments Simulated Smart Interface for Ludlum 3 & 12 & HP260 800 Series Equipment type: Training Simulator The STS 800 Series Smart Interface for Ludlum 3 & 12 & HP260 Simulator as described in the Full Manual is in conformity with the relevant Union Harmonisation Legislation:...
