apexcam K20 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
K20
ACTION CAMERA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K20 and is the answer not in the manual?

Questions and answers

Related Manuals for apexcam K20

Summary of Contents for apexcam K20

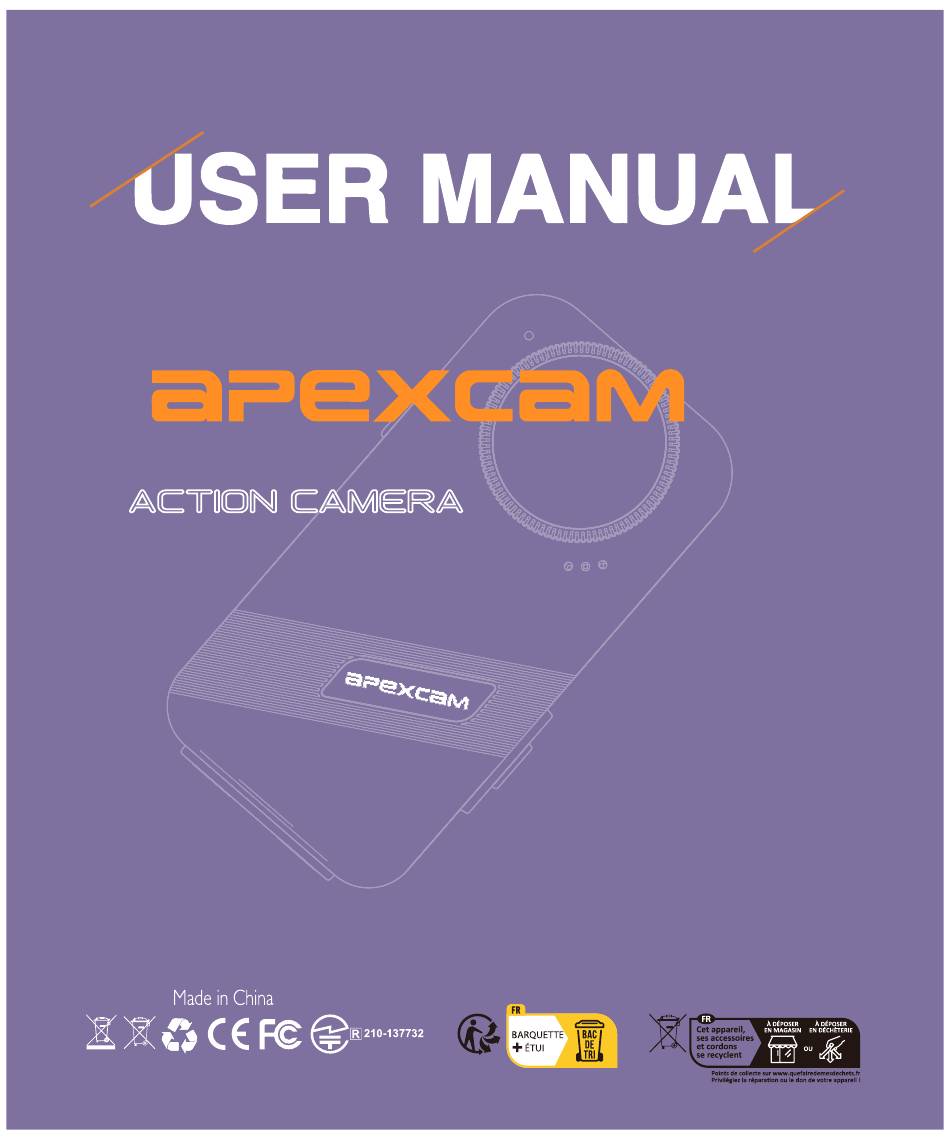

  • Page 1 ACTION CAMERA...

  • Page 2: Table Of Contents

    Contents FCC Rules..................01 Safety Messures................03 Overview of camera................05 Getting started..................05 Overview of modes................06 Video Mode..................07 Photo Mode..................09 Shortcut Mode..................10 Playback mode...................11 Settings mode..................11 Three Setting Mode................12 Video Setting Mode................12 Photo Setting Mode................15 Camera Setting Mode.................17 How to connect your camera to your phone?........19 Playback your content..............21 Remote controller................22 Battery....................22...

  • Page 3: Fcc Rules

    FCC Rules This device complies with part 15 of the FCC Rules. Oper- ation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 4 - English: " This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." - French: "...

  • Page 5: Safety Messures

    Make sure you read and understand these safety Measures before using the device. If you notice any malfunctions, problems or damage to the device, please contact our customer service team: supports@apexcam.com Warning: Follow the instructions below to protect against fire, high heat, chemical leakage and electric shock.
  • Page 6 ■ Do not use external heat sources such as microwave ovens or hair dryers to dry the device or the batteries. ■ Damage to the device or the battery due to water ingress is not covered by the warranty.

  • Page 7: Overview Of Camera

    OVERVIEW OF CAMERA 1. Lens 2. Speaker 3. Internal Microphone 4. Power/Shutter/Select Button 5. Touch Screen 6. TYPE-C Port waterproof silicone plug 7. Indicator 8. Waterproof Battery Door 9. Battery Door Lock GETTING STARTED ■ Please format the memory card on the camera before using.

  • Page 8: Overview Of Modes

    OVERVIEW OF MODES There are 5 modes: video mode, photo mode, shortcut mode, playback mode and settings mode. Video Mode 5 video modes: Video Mode, Time Lapse Video Mode, Slow Motion Mode, Fast Motion Mode and Vertical Video. Video Mode Video mode is the regular video mode, video mode is the default mode when you turn on the camera.

  • Page 9: Video Mode

    Tip:Audio cannot be recorded in Time Lapse Video Mode. Slow Motion Mode Slow Motion Video, also known as high-frame-rate video, refers to a technique where the camera records video at a higher frame rate and then plays it back at a lower speed, typically 30 frames per second, resulting in a smoother and more dramatic effect.
  • Page 10 Fast Motion Mode A technical effect that makes image movement faster than normal speed. In this mode, pressing the shutter button allows the camera to record fast action videos at different resolutions and speeds. Tip: If Fast Motion is on, EIS, Time-Lapse Video and Slow Motion will not be available.

  • Page 11: Photo Mode

    Photo Mode 3 photo modes: Photo Mode, Time Lapse Photo Mode and Burst Photo Mode. Photo Mode In Photo Mode, press Shutter button, the camera takes a photo per time. Time Lapse Photo Mode Time Lapse Photo captures a series of photos at specified intervals. In this mode, press the Shutter button to take a series of photos at the set interval.

  • Page 12: Shortcut Mode

    Burst Photo Mode Burst captures up to 10 photos per time, so it is perfect for capturing fast-moving activities.In this mode, press Shutter button, , the camera will continuously capture 3, 5, or 10 photos. Shortcut Mode The shortcut mode can quickly turn on/off the camera's WiFi and audio recording functions, as well as quickly turn off the camera.

  • Page 13: Playback Mode

    Playback Mode There are 2 Playback Mode: Video Playback Mode and Photo Playback Mode.In Playback Mode, You can playback or delete your content on the camera. Settings Mode There are three settings modes: video settings, photo settings, and camera settings. In the setting mode, the camera parameters can be set according to the shooting needs.

  • Page 14: Three Setting Mode

    CUSTOMZING YOUR CAMERA There are 3 Setting Mode: Video Setting Mode, Photo Setting Mode and Camera Setting Mode. Video Setting Mode Video Settings: Resolution: 4K30、 4K60、 2K30、 1080P30、 1080P60、 720P60、 720P120 Default setting is 4K 30fps. Video Format: MOV / MP4 Default setting is MP4.
  • Page 15 Loop Recording : Off / 1Min / 3Min / 5Min Default setting is Off. The files will be saved every 3 minutes if you choose 3 minutes. When the memory card is full, the new files will cover the existed one if the loop recording is on;...
  • Page 16 For example: If you select 4K/30FPS and 3 secs, you need to record 90secs, then you can get 1 sec video for 4K/30FPS. Interval Record Time： Unlimited / 5min / 10min / 15min / 20min / 30min / 60min Default setting is Unlimited. Continuously creates Time Lapse Video at specific duration.

  • Page 17: Photo Setting Mode

    Date Stamp: Off / Date / Date & Time Default setting is Date & Time. Fast Motion Settings Resolution: 4K30 / 2K30 / 1080P30 / 1080P60 / 720P60 / 720P 120 Default setting is 4K30. Fast Motion Movie: Off / 2x / 4x/ 6x / 10x /15x Default setting is Off.
  • Page 18 Self Timer : Off / Delay 2S / Delay 5S / Delay 10S Default setting is Off. Notes: When Timed Photo is turned on, Timelapse Photo, Timelapse Photo Continuous Time and Long Exposure will not be available. Long Exposure： Off / 1 second / 2 second / 5 second / 8 second / 30 second Default setting is off.

  • Page 19: Camera Setting Mode

    Note: If use Time Lapse Photo is on Burst Photo, Delay Timer and Long Exposure will not be available. Interval Photo Time: Unlimited /5 Min / 10 Min /15 Min / 20 Min / 30 Min / 60 Min Default setting is Unlimited. Camera Setting Mode Camera Settings: Language：...
  • Page 20 Note: If the battery is removed from the camera for an extended period of time, the date and time will be reset automatically. Sounds: Shutter / Beep / Volume / Boot-up Shutter： On / Off Set the shutter sound of the camera. Boot-up：...

  • Page 21: How To Connect Your Camera To Your Phone

    White Balance: Auto/Daylight/Cloudy/Tungsten Light /Fluorescent/Dive mode Default setting is Auto. AWB (Auto White Balance) lets you adjust the color temperature of videos and photos to optimize for cool or warm lighting conditions. When you change this setting, the LCD display immediately shows you the effect on your image.
  • Page 22 Step 2: Turn on the camera's WIfI function: Turn on the camera, swipe down on the screen to Shortcut Mode and tap the "WIFI" icon to turn on the camera's WIFI. Wait for Wi-Fi Connect SSID:apexcam_C7339C PWD:1234567890 Slide Up to exit Wi-Fi Step 3: Turn off...

  • Page 23: Playback Your Content

    PLAYBACK YOUR CONTENT Playback videos and photos on your camera 1. Verify in any Video / Photo mode. 2. Tap “Playback” icon in the bottom left corner of the screen to enter playback mode. 3. Tap “video Playback” icon /“photo playback” icon to enter into video playback / photo playback Menu.

  • Page 24: Remote Controller

    3.Tap the "Delete" icon at the top of the screen to enter the file deletion menu. 4.Tap the "Single file" to delete the selected file. REMOTE CONTROLLER Non waterproof Remote:  2.4G Transmission / Range: 5M How to turn on/turn off the remote function: Select ON/OFF in the Camera Setting mode to turn on/off the remote controller.
  • Page 25 Battery Storage and Handling • Dont store in temperature above 140°F/60°C. •Avoid exposing your camera to very cold or very hot temperatures. Low or high temperature conditions may temporarily shorten the battery life or cause the camera to temporarily stop working properly. Avoid dramatic changes in temperature or humidity when using the camera, as conden- sation may form on or within the camera.

  • Page 26: Charging The Battery

    Charging the Battery 1.Connect the camera to USB power supply (5V/1-2A commended). 2.The charging status light remains ON while the battery is charging. 3.The charging status light will turn OFF when the battery is fully charged. Notes: •Charging time: 4-hours for 5V 1A power supply •Please make sure the camera is shuttled down while charging.
