Riverside Furniture Cora 37276-714 Assembly Instructions

email: info@riverside-furniture.com
Warning :
- Be sure to check all packing material carefully for small parts,which may have come loose inside the carton during shipment.
- To prevent possible scratches and damage, this furniture MUST BE ASSEMBLED BY TWO PEOPLE on a soft surface such as a
blanket or carpet.
Louver Headboard 37276
1 pc.
H-A
∅ 5/16''- 1- 1/2"
Allen Head Bolt
2 pcs.
H-E
Louver Footboard 37277
1 pc.
F-A
Bed Rails 37272
∅
5/16 x 3-1/2"
All-Thread Bolt
2 pcs.
R-A R-B

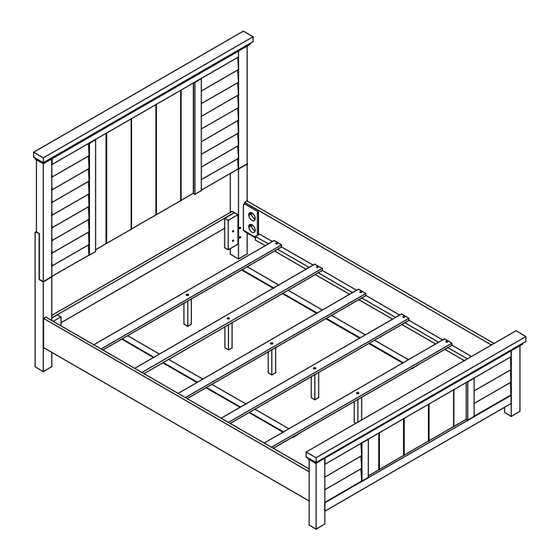

5/0 Queen Bed
37276 -- 4/6-5/0 Louver Headboard
37277 -- 5/0 Louver Footboard
37272 -- 5/0-6/6 Panel Bed Rails
Assembly Instructions
Hardware and Parts packed with the Headboard
Headboard Post Left
H-B
∅ 5/16''- 1- 3/4"
Allen Head Bolt
6 pcs.
H-F
Hardware and Parts packed with the Footboard
Wood Slats 61-1/4" long
F-B
Hardware and Parts packed with the Bed Rail
∅
5/16"
Curved Washer
8 pcs.
R-C
8 pcs.
Cora
Bedroom
Headboard Post Right
1 pc.
H-C
∅
5/16"
Spring Washer
8 pcs.
H-G H-H
Support Leg
(D) 7-1/2" x (W)1- 1/4"(H) 1- 1/4"
1 Set. F-C
∅
5/16" x 16*2mm
Flat Washer Spring Washer
8 pcs.
R-D R-E
Made in Viet Nam
Queen Louver Bed
Headboard stretcher
1 pc.
H-D
∅
5mm Allen Key
5/16" x 19*2mm
Flat Washer
8 pcs.
#8 x 1" Wood Screw
5 pcs.
F-D
∅
∅ 5/16 x L17 Nut
5/16"
8 pcs. 8 pcs.
R-F
Page 1 of 5
1 pc.
1 pc.
H-I
10 pcs.
Open Wrench
12mm
1 pc.
R-G
