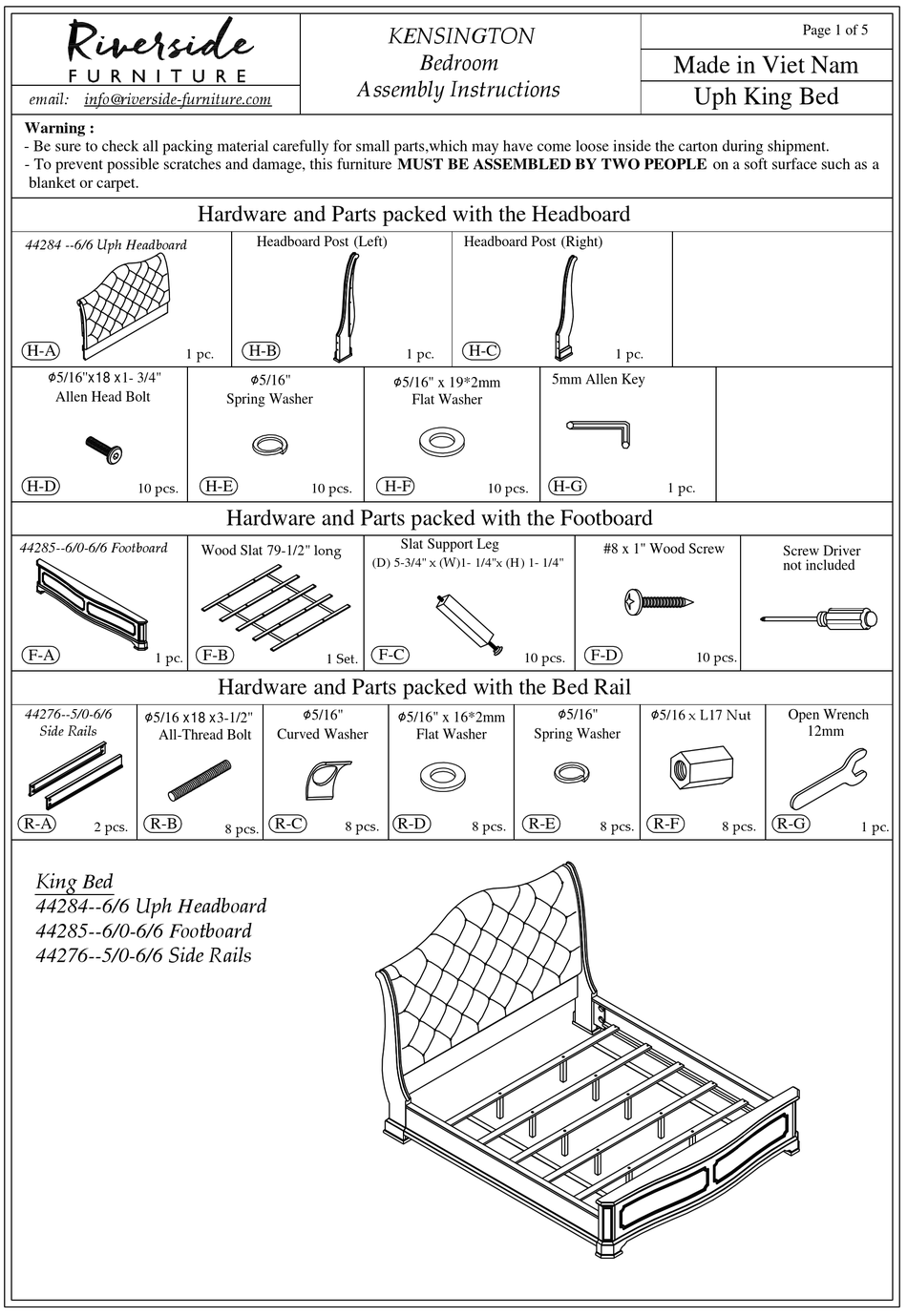

Riverside Furniture KENSINGTON Assembly Instructions

email: info@riverside-furniture.com
Warning :
- Be sure to check all packing material carefully for small parts,which may have come loose inside the carton during shipment.
- To prevent possible scratches and damage, this furniture MUST BE ASSEMBLED BY TWO PEOPLE on a soft surface such as a
blanket or carpet.
44284 --6/6 Uph Headboard
1 pc.
H-A
5/16'' x18 x 1- 3/4"
∅
Allen Head Bolt
10 pcs.
H-D
44285--6/0-6/6 Footboard
1 pc.
F-A
44276--5/0-6/6
5/16 x18 x 3-1/2"
∅
Side Rails
All-Thread Bolt
2 pcs.
R-A R-B
King Bed
44284--6/6 Uph Headboard
44285--6/0-6/6 Footboard
44276--5/0-6/6 Side Rails
Assembly Instructions

Hardware and Parts packed with the Headboard

Headboard Post (Left)
H-B
∅
5/16"
Spring Washer
10 pcs.
H-E

Hardware and Parts packed with the Footboard

Wood Slat 79-1/2" long
F-B 1 Set.

Hardware and Parts packed with the Bed Rail

∅
5/16"
Curved Washer
8 pcs.
R-C
8 pcs.
KENSINGTON
Bedroom
Headboard Post (Right)
1 pc.
H-C
∅
5/16" x 19*2mm
Flat Washer
10 pcs.
H-F
Slat Support Leg
(D) 5-3/4" x (W)1- 1/4" (H) 1- 1/4"
x
10 pcs.
F-C
∅
5/16" x 16*2mm
Spring Washer
Flat Washer
8 pcs.
R-D R-E
Made in Viet Nam
Uph King Bed
1 pc.
5mm Allen Key
1 pc.
H-G
#8 x 1" Wood Screw
10 pcs.
F-D
∅
∅ 5/16 x L17 Nut
5/16"
8 pcs. 8 pcs.
R-F
Page 1 of 5
S crew Driver
not included
Open Wrench
12mm
1 pc.
R-G
