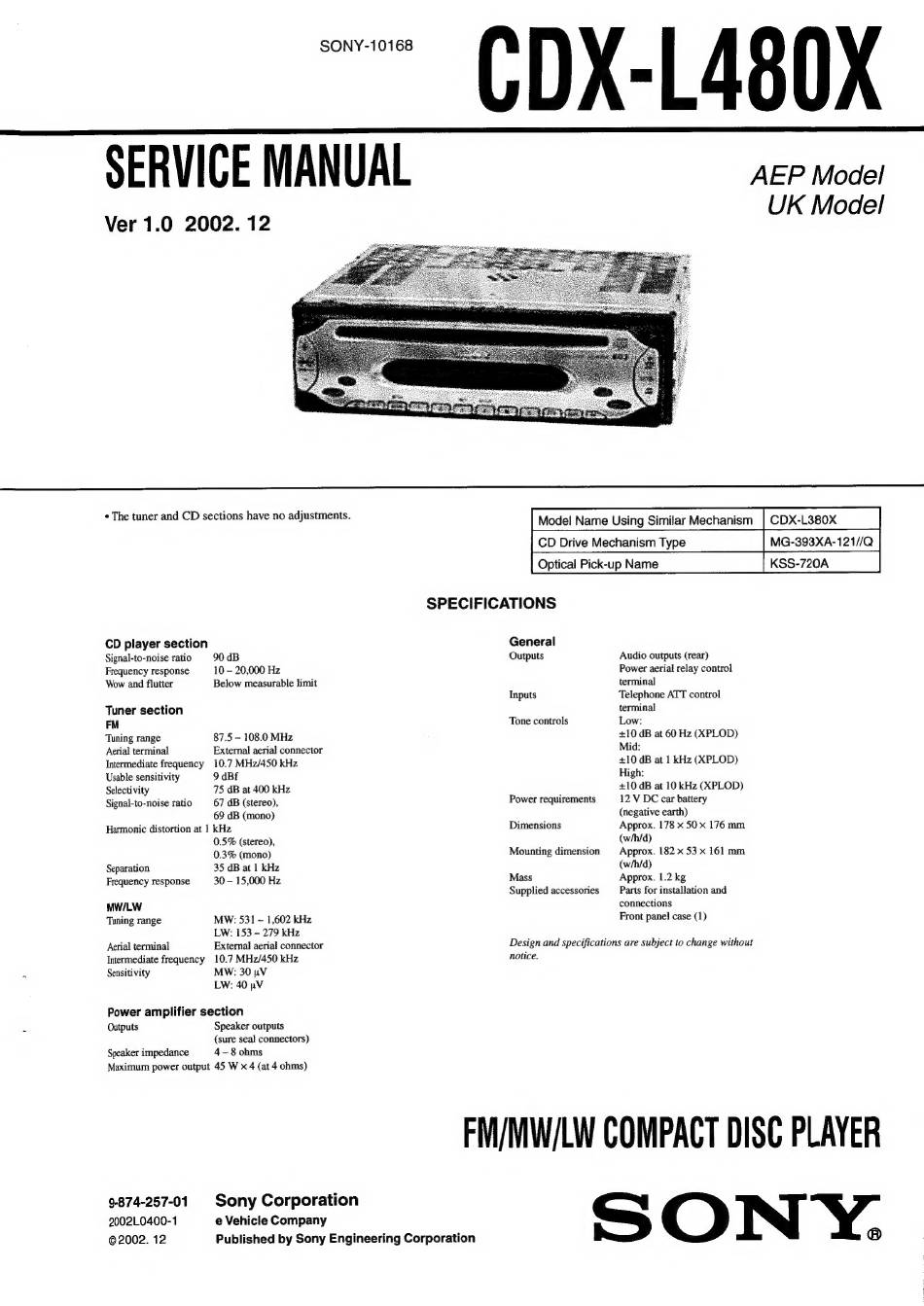

~~ CDX-L480X
SERVICE MANUAL
Ver 1.0 2002. 12
AEP Model
UK Model
¢ The tuner and CD sections have no adjustments.
CD player section
Signal-to-noise ratio
90 dB
Frequency response
10 — 20,000 Hz
Wow and flutter
Below measurable limit
Tuner section
FM
Tuning range
87.5 ~ 108.0 MHz
Aerial terminal
External aerial connector
Intermediate frequency
10.7 MHz/450 kHz
Usable sensitivity
9 dBf
Selectivity
75 dB at 400 kHz
Signal-to-noise ratio
67 dB (stereo),
69 dB (mono)
Harmonic distortion at 1 kHz
0.5% (stereo),
0.3% (mono)
Separation
35 dB at 1 kHz
Frequency response
30 - 15,000 Hz
MW/LW
Tuning range
MW: 531 ~ 1,602 kHz
LW: 153 - 279 kHz
Aerial terminal
External aerial connector
Intermediate frequency
10.7 MHz/450 kHz
Sensitivity
Mw: 30 nV
LW: 40 nV
Power amplifier section
Outputs
Speaker outputs
(sure seal connectors)
Speaker impedance
4-8 ohms
Maximum power output 45 W x 4 (at 4 ohms)
9-874-257-01
Sony Corporation
e Vehicle Company
©2002. 12
Published by Sony Engineering Corporation
2002L0400-1
SPECIFICATIONS
General
Outputs
Inputs
Tone controls
Power requirements
Dimensions
Mounting dimension
Mass
Supplied accessories
Model Name Using Similar Mechanism
| CDX-L380X
CD Drive Mechanism Type
MG-393XA-121//Q
Optical Pick-up Name
KSS-720A
Audio outputs (rear)
Power aerial relay control
terminal
Telephone ATT control
terminal
Low:
+10 dB at 60 Hz (XPLOD)
Mid:
+10 dB at 1 kHz (XPLOD)
High:
+10 dB at 10 kHz (XPLOD)
12 V DC car battery
(negative earth)
Approx. 178 x 50 x 176 mm
(whh/d)
Approx. 182 x 53 x 161 mm
(whh/d)
Approx. 1.2 kg
Parts for installation and
connections
Front panel case (1)
Design and specifications are subject to change without
notice.
FM/MW/LW COMPACT DISC PLAYER
SONY.
