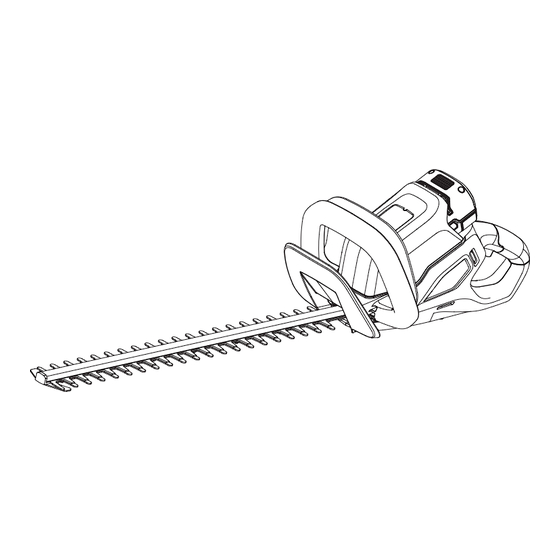

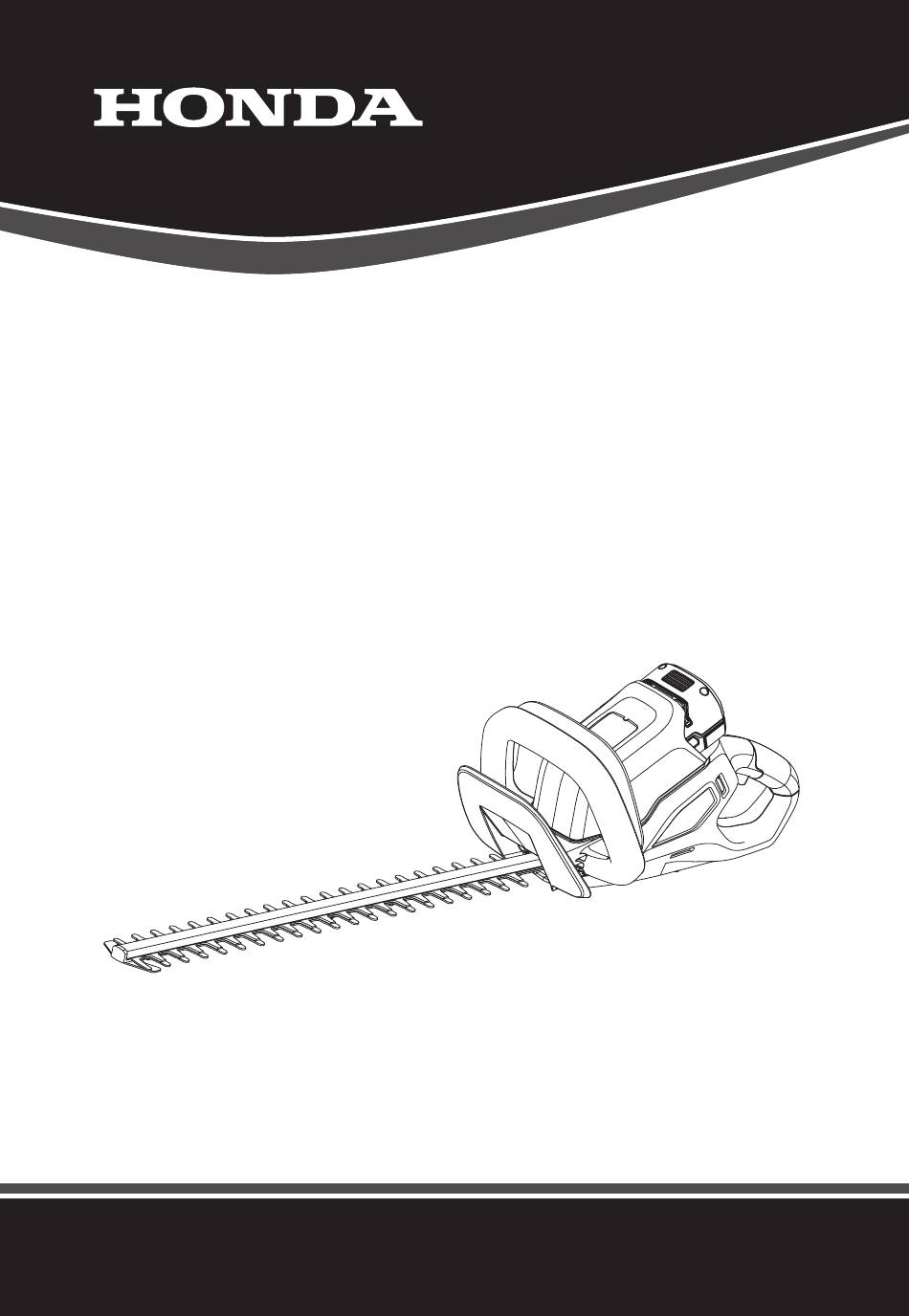

- Page 1 CORDLESS HEDGE TRIMMER HHH36YXB D55T Owner's Manual ORIGINAL INSTRUCTIONS Thank you for choosing Honda Hedge Trimmer. For your safe use, please read this manual before operating and save the manual properly.
- Page 2 The products shown in this manual may differ from the actual products. If a problem should arise, or if you have any questions about your product, consult your servicing dealer. Honda dealer is dedicated to your satisfaction and will be pleased to answer your questions and concerns.
-
Page 3: Table Of Contents
CONTENTS Product Instruction...............1 Warning Label................2 Safety Instructions...............3 Main Specification...............6 Product Assembly....................7 Sarting/Stopping.....................7 Charing the Battery Pack..................8 Daily Maintenace....................10 Troubleshooting....................10 Technical Information..................11... -
Page 4: Product Introduction
PRODUCT INTRODUCTION Blade Assembly Hand Guard Front Handle Front Switch Trigger Battery Pack Rear Switch Trigger Rear Handle... -
Page 5: Warning Label
WARNING LABEL Warning labels will remind you of potential hazards that may cause harm, please read carefully. If the label falls off or the content is unclear, please contact your servicing dealer. Warning! WARNING - To reduce the risk of injury, user must read instruction manual. Do not expose the product to rain or wet conditions. -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings, instructions, illustrations and specifications, provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 7 SAFETY INSTRUCTIONS Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 8: Hedge Trimmer Safety Warnings
SAFETY INSTRUCTIONS Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. -
Page 9: Main Specification
MAIN SPECIFICATION Model HHH36YXB D55T Rated Voltage 36V DC Rated Power 350 W No-Load Speed 2800 r/min Cutting Length 547 mm Cutting Width 17 mm Braking Time less than 1s Overall Size 980×223×203 mm Recommended Operating Temperature 0℃ - 40℃... -
Page 10: Product Assembly
PRODUCT ASSEMBLY INSTALLING THE BATTERY PACK Align the grooves in the battery pack with the raised ribs in the battery compartment and then insert the battery pack into the compartment until you hear a "click". Fig. 1 STARTING/STOPPING To satrt: Grasp the front switch trigger with one hand while the rear switch trigger with the other hand. -
Page 11: Charging Indicator
CHARGING THE BATTERY PACK HOW TO CHARGE THE BATTERY PACK Charge the Lithium-Ion battery pack only with the correct charger. Connect the charger to a power supply. The LED indicator on the charger will turn red. Align the raised ribs of the battery pack with the slot in the charger. Insert the battery pack into the charger. -
Page 12: Charging The Battery Pack
CHARGING THE BATTERY PACK Fig. 4 Capacity Indicator Capacity Indicator Button Indicators Fully Lit Status ■ □ 75% - 100% ■■■■ ■■■□ 50% - 75% ■■□□ 25% - 50% ■□□□ 5% - 25% □□□□ Needs to be charged If more than one indicators are on, the battery pack can be chargerd according to the real situation. If none of the indicators are on, the battery pack must be fully charged before use. -
Page 13: Daily Maintenace
Note: Do not adjust the product while it is running. Note: The main power supply must be cut off and the product must be stopped for cooling before cleaning and daily maintenance. Note: Please contact your servicing dealer to repair this product and use the genuine Honda accessories. TROUBLESHOOTING... -
Page 14: Technical Information
TECHNICAL INFORMATION Please write down the battery pack and the product serial number and also the purchasing date. This information is required when ordering parts and/or consulting technical or warranty information. Battery Pack Serial Number: Product Serial Number: Purchasing date: Product Serial Number UAKY-******* Battery Pack Serial Number... - Page 15 Manufacture: Honda Power Products (Fuzhou) Co., Ltd Address: No.7 Houyu Road, Jin’an District, Fuzhou City, Fujian Province, China. 42Y0KH00 © 2024 Honda Motor Co., Ltd. 00X42-Y0K-H000 Printed in China...
