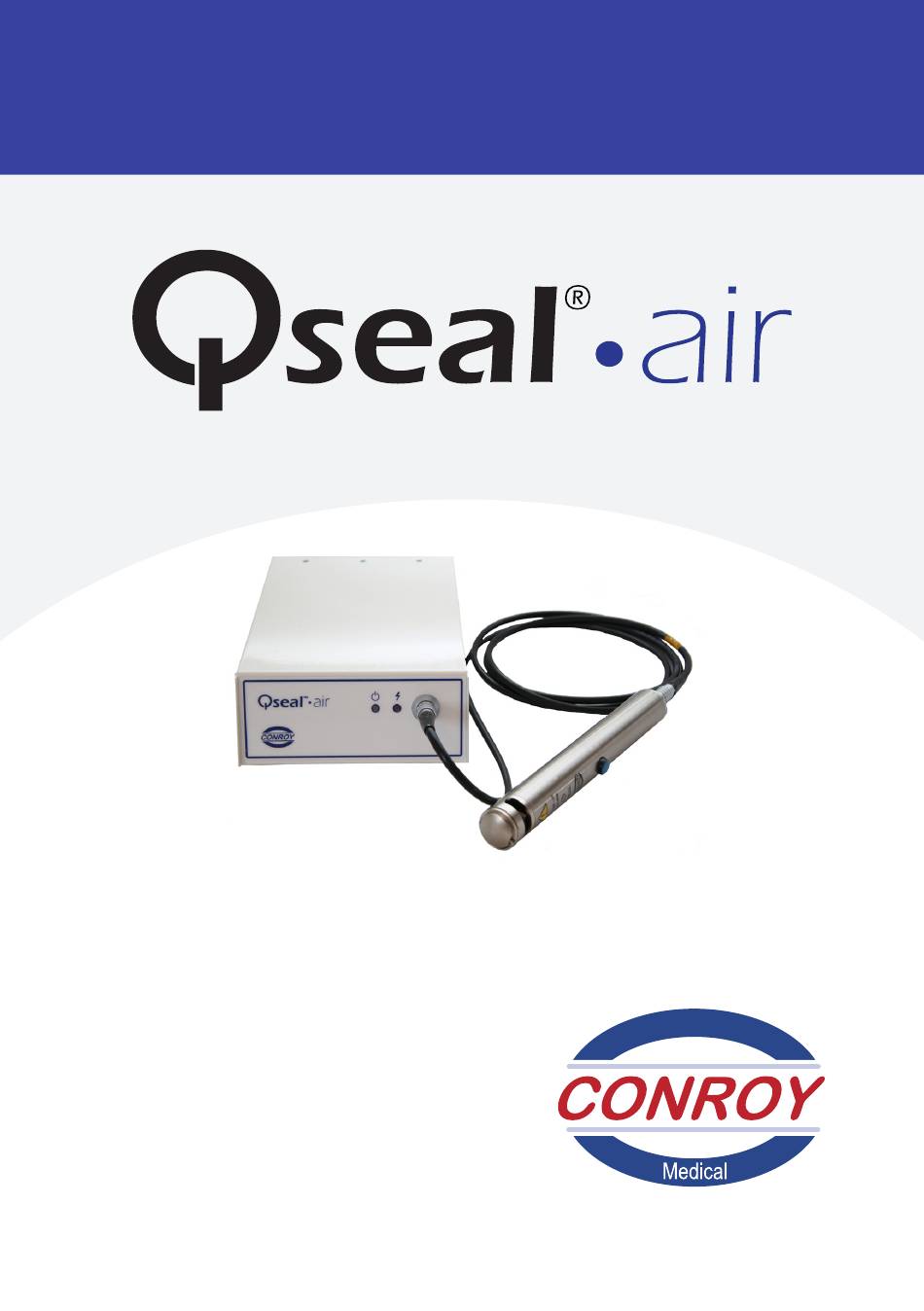

- Page 1 Operator´s Manual CS520 Tube Sealer with Handle...
- Page 2 Every effort has been made to ensure that the information in this document is correct, but we make no guarantee to this effect and would appreciate any observations regard- ing the contents of this document. We may make improvements and alterations to the instrument and these changes will be incorporated in new issues of this publication when practicable.
-
Page 3: Table Of Contents
Warnings and Cautions ........................... 2 1. Scope ................................4 1.1 Introduction ..........................4 1.2 Performance and specifications ..................5 1.3 Qseal-air parts and spare parts ..................12 1.4 Symbols/markings description ..................13 2. Installation .............................15 2.1 Unpacking and inspection ....................15 2.2 Environmental requirements ...................15 2.3 Installation procedure ......................16... -
Page 4: Warnings And Cautions
Warning! If any of the components of Qseal-air are exposed to blood, they must be cleaned with an appropriate disinfectant solution. Warning! The instrument must always be connected to a grounded outlet and with appropriate alternating current mains source, 100-130 or 230 V ~. - Page 5 Member State in which the user and/or patient is established. Warning! Qseal-air is not intended to be used with flammable anaesthetics and not intended for use in conjunction with flammable agents.
-
Page 6: Scope
Conroy Medical AB. 1.1 Introduction Qseal-air is a fully automatic system for sealing PVC tubes, especially for tubes in blood pack systems. Following the sealing procedure the tube is easily pulled apart, due to the distinct sealing pattern, with no damage to the blood inside the tubes. - Page 7 1-2 sec., max 5 sec. depending on tubing. Intended purpose: Intended for sealing tubes and bags in blood component sets. Qseal-air is intended to be used by trained medical professionals. Input Power: 100-130 / 230 V ~ - 50/60 Hz auto range sense...
- Page 8 Guidance and Manufacturer’s Declaration – Electromagnetic Emission The CS520 Qseal-air Bench Top Sealer is intended for use in the electromagnetic environment specified below. The customer or the user of the CS520 Qseal-air should assure that it is used in such an environment.
- Page 9 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The CS520 Qseal-air is intended for use in the electromagnetic environment specified below. The customer or the user of the Qseal-air should assure that it is used in such an environment. Immunity Test...
- Page 10 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The CS520 Qseal-air is intended for use in the electromagnetic environment specified below. The customer or the user of the Qseal-air should assure that it is used in such an environment. Immunity Test...
- Page 11 The CS520 Qseal-air is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the CS520 Qseal-air can help pre- vent electro-magnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the CS520 Qseal-air as recommended below, according to the maximum output power of the communications equipment.
-
Page 12: Front View
Front view 2-coloured LED Yellow Connector green: power on “Seal” for the red (flashing): error Coaxiable cable Rear view Power cord receptacle Fuseholder Power switch CS520 Qseal-air Operator´s manual... -
Page 13: Qseal-Air Parts And Spare Parts
8 7901 1251 Three-wire (10A), 2.5 m long, female plug Fuse 8 5500 2502 2 x T2 AH 250V 1.3.2 Qseal-air spare parts (user interchangeable parts) Description Hand unit Coaxial Cable, 2.3 m Power cord, 2.5 m Fuse SPT2AH 952100001... -
Page 14: Symbols/Markings Description
Symbol for “CATALOGUE NUMBER”. Symbol for “CAUTION”. Symbol for “CONSULT OPERATOR MANUAL”. Symbol for “SERIAL NUMBER”. Symbol for “MEDICAL DEVICE”. Symbol for “MANUFACTURER”. Symbol for “DATE OF MANUFACTURE”. Symbol for “CONSULT USER MANUAL”. Symbol for “ATMOSPHERIC PRESSURE limitation”. CS520 Qseal-air Operator´s manual... - Page 15 2 LED lights: Green when the power is on, Flashing red when an error occurs (sealing is not possible). 1 LED light: Yellow when RF-energy is being applied. Symbol for “HANDLE WITH CARE / FRAGILE”. Symbol for “KEEP DRY”. CS520 Qseal-air Operator´s manual...
-
Page 16: Installation
If any parts are missing or if the parts are damaged, report it immediately. Please keep all shipping and packaging materials, as they may be required for later transportation, at least during the warranty time. CS520 Qseal-air Operator´s manual... -
Page 17: Environmental Requirements
Note! The instrument has an automatic auto range sensor, which means that it changes automatically to the correct main voltage 115 or 230 V ~. Caution! Ensure that all cables are connected before turning the power on. CS520 Qseal-air Operator´s manual... -
Page 18: Functional Description
This chapter describes how Qseal-air works, where the connectors and the indica- tions are placed on the unit and their functions. The indication for use of Qseal-air is a need for seal and separation of tubing or bags in blood component sets during blood and plasma donation or other blood component preparation. - Page 19 ❷ Yellow ”Seal”- LED, lights during sealing when energy is being applied. ❸ Connector for the special coaxial cable. ❶ ❷ ❶ ❷ ❸ Rear of Main unit. Front of Main unit. CS520 Qseal-air Operator´s manual...
-
Page 20: Operating Instructions
Put the tube to be sealed down to the bottom of the slot ❶ of the Hand unit. Check that the tube is placed between the electrodes in the slot. Push and hold down button ❷, the lamp ❸ lights up. The sealing time is normally 1 to 2 seconds. CS520 Qseal-air Operator´s manual... - Page 21 Caution! In case of sealer malfunction (intermittent operation, poor seal quality, the sea- ling time seems too long or too short) contact your local Conroy Medical representative for assistance. Caution! Periodically check the pattern of the sealing visually (see picture below).
-
Page 22: If The Sealer Doesn´t Start
If the sealer still doesn’t start, see chapter 6 for further information. The Power supply board is specially designed with low switching losses and has protec- tion for over voltage, thermal shutdown, and is also current limiting. CS520 Qseal-air Operator´s manual... -
Page 23: Cleaning
Do not use chemical or abrasive cleaners such as acetone, ammonia or similar. Do not use sharp edged tools for cleaning, which could damage the finish of the units. Caution! Do not allow liquid to flow into the electronic part of the machine. CS520 Qseal-air Operator´s manual... -
Page 24: Main Unit
Caution! Do not dip the units in liquid, as they are not water- proof. Intruding liquid will cause malfunction, tiny arcs and reduce the lifetime use. CS520 Qseal-air Operator´s manual... -
Page 25: Troubleshooting
Contact your local C.M. representative. or does not light at the same time as the Seal lamp of the Hand Unit. LED lights when Seal switch is broken. Contact your local C.M. representative. seal switch is released. CS520 Qseal-air Operator´s manual... - Page 26 Coaxial cable broken. Contact your local C.M. representative. Seal lamp flickers Coaxial cable broken. Change coaxial cable or contact your local C.M. representative. Seal lamp doesn’t Main unit inoperative. Contact your local C.M. representative. light but electrode moves CS520 Qseal-air Operator´s manual...
-
Page 27: Parts Replacement
Coaxial cable replacement 1. Turn off the power switch and disconnect the Coaxial cable from the main unit and hand unit. 2. Replace the coaxial cable with the same type or an equivalent model (see chapter 1.3). CS520 Qseal-air Operator´s manual... -
Page 28: Warranty And Service
7. Warranty and Service Information on the warranty and the service provided by Conroy Medical is listed below: 7.1 Warranty Conroy Medical guarantees that the equipment shall be free from defects in material and workmanship when delivered to the original purchaser. Conroy Medical´s sole ob- ligation shall be limited to repair or replacement, at Conroy Medical´s option and ex-... -
Page 29: Service
A brief written description of the problem should be attached to the instrument when it is returned for service. Conroy Medical will not be responsible for unauthorized returns or for units damaged in shipment due to improper packing. -
Page 30: Product Disposal
7.3 Product Disposal Product Disposal For Qseal-air disposal (and accessories) at the end of the calculated life cycle of 7 years, please ensure the following: • Do not dispose Qseal-air as unsorted municipal waste. • Collect the Qseal-air separately. -
Page 31: Eu Declaration Of Conformity
Regulation (EU) MDR 2017/745 for medical device and Directive 2011/65/EU (RoHS). This declaration is supported by the quality system approval to ISO 13485 issued by Intertek IMNB. This declaration of conformity is issued under the sole responsibility of Conroy Medical AB. Upplands Vaesby, 2024-10-07 Place and date Nicklas Lundman, CEO CS520 Qseal-air Operator´s manual... - Page 32 Operator´s Manual CS520 Tube Sealer with Handle https://conroymedical.com...
