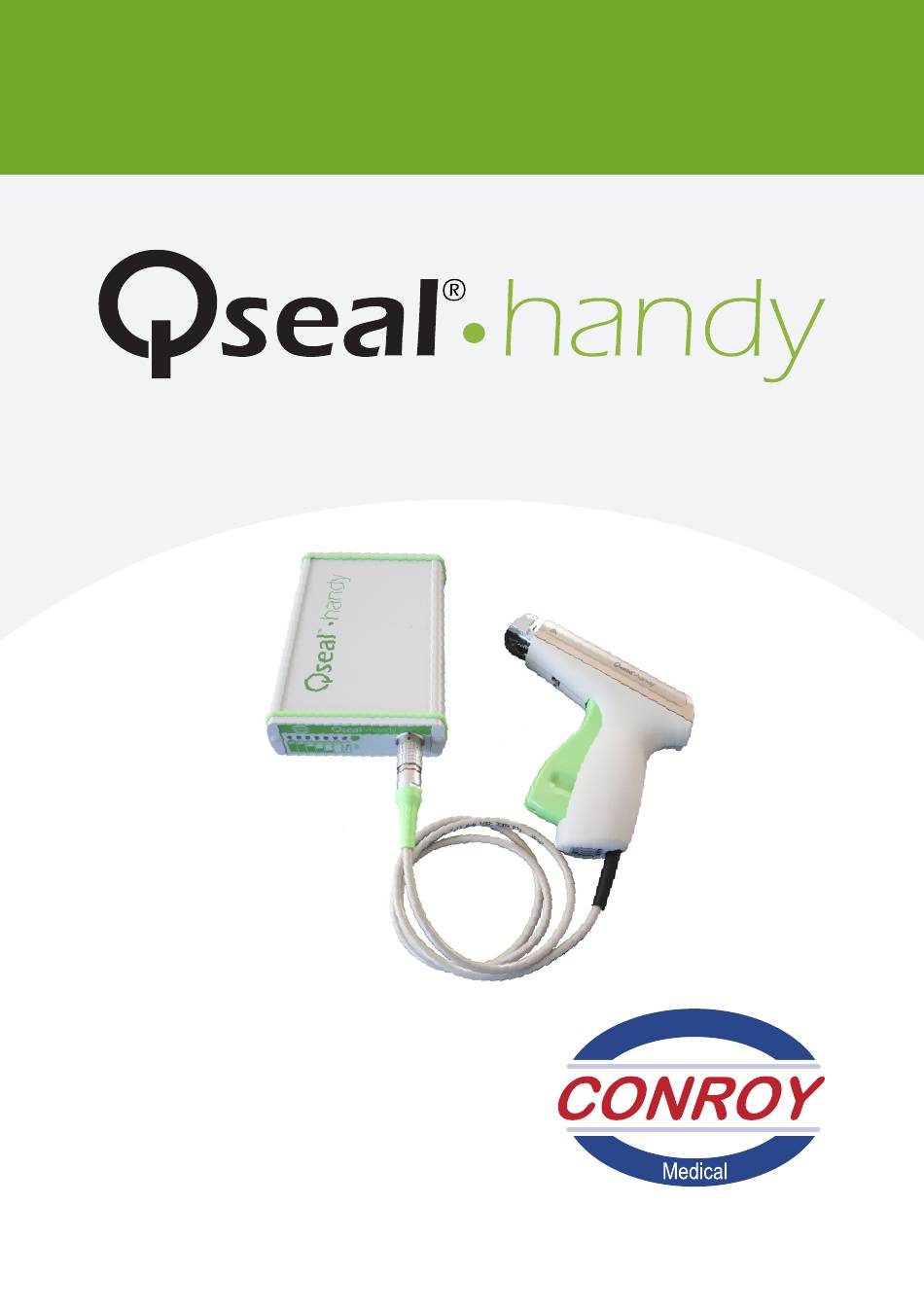

- Page 1 Operator´s Manual CS546 Portable Battery Sealer...
- Page 2 Every effort has been made to ensure that the information in this document is correct, but we make no guarantee to this effect and would appreciate any observations regard- ing the contents of this document. We may make improvements and alterations to the instrument and these changes will be incorporated in new issues of this publication when practicable.
-
Page 3: Table Of Contents
Warnings and Cautions ........................... 2 1. Scope ................................4 1.1 Introduction ..........................4 1.2 Performance and specifications ..................5 1.3 Qseal-handy parts and spare parts ................13 1.4 Symbols/markings description ..................15 2. Installation .............................17 2.1 Unpacking and inspection ....................17 2.2 Environmental requirements ...................17 2.3 Installation procedure ......................18... -
Page 4: Warnings And Cautions
Warning! If any of the components of Qseal-handy are exposed to blood, they must be cleaned with an appropriate disinfectant solution. Warning! Qseal-handy is not intended for use in an oxygen rich environment. - Page 5 Member State in which the user and/or patient is established. Warning! Qseal-handy is not intended to be used with flammable anaesthetics and not intended for use in conjunction with flammable agents.
-
Page 6: Scope
Qseal-handy is comprised of a hand unit and battery unit which is connected to the hand unit with the integrated cable. It is complete with inbuilt sealing head and ready to operate. -
Page 7: Performance And Specifications
Sealing time: 0.4 up to 3 sec. depending on tubing. Intended purpose: Intended for sealing tubes and bags in blood component sets. Qseal-handy is intended to be used by trained medical professionals. Input Power: Charger 100-240 V ~ - 50-60 Hz Battery 28.8 VDC, 2.4 Ah, Li-Ion... - Page 8 Collateral standards for Electromagnetic Compatibility. Electrical safety: During charging Class II. During use: Internal power supply. The Qseal-handy is used in the same environment as medical equipment (hospitals and blood banks). It must be used by highly qualified personnel. Manufacturer...
- Page 9 Table 1: Guidance and Manufacturer’s Declaration – Electromagnetic Emission The CS546 Qseal-handy Portable Battery Sealer is intended for use in the electromagnetic en- vironment specified below. The customer or the user of the CS546 Qseal-handy should assure that it is used in such an environment.
- Page 10 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The CS546 Qseal-handy is intended for use in the electromagnetic environment specified below. The customer or the user of the Qseal-handy should assure that it is used in such an environment. Immunity Test...
- Page 11 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The CS546 Qseal-handy is intended for use in the electromagnetic environment specified below. The customer or the user of the Qseal-handy should assure that it is used in such an environment. Immunity Test...
- Page 12 The CS546 Qseal-handy is intended for use in the electromagnetic environment in which radi- ated RF disturbances are controlled. The customer or the user of the CS546 Qseal-handy can help prevent electro-magnetic interference by maintaining a minimum distance between port-...
- Page 13 Front view of Battery unit Charge level indicator Recharge indicator Battery test button Hand unit / Battery charger cable connector Rear view of Battery unit CS546 Qseal-handy Operator´s manual...
- Page 14 View of Hand unit Seal indicator Tube slot Spring lock Trigger Electrode remove grip View of Charger CS546 Qseal-handy Operator´s manual...
-
Page 15: Qseal-Handy Parts And Spare Parts
1.3 Qseal-handy parts and spare parts 1.3.1 Qseal-handy, REF CS546 Qseal-handy comprises the parts listed below: Description Battery unit Hand unit Battery charger Part No. 54700001 54600001 54400001 Description Mains adapter kit Part No. 64614010 List of all cables and maximum lengths of cables, transducers and other accessories... - Page 16 1.3.2 Accessories (order separately) Description Holster Extension cord, 1.2 m 9547500 9547555 1.3.3 Qseal-handy spare parts (user interchangeable parts) Description Hand unit Battery unit Battery charger 954600001 9547301 954400001 Description Mains adapter kit 964614010 CS546 Qseal-handy Operator´s manual...
-
Page 17: Symbols/Markings Description
Class II Battery charger: double insulation during charging. Battery charger UL recognised component for Canada and U.S.A. Symbol for “CATALOGUE NUMBER”. Symbol for “WARNING”. Symbol for “CONSULT USER MANUAL”. Symbol for “SERIAL NUMBER”. Symbol for “DATE OF MANUFACTURE”. Symbol for “MANUFACTURER”. CS546 Qseal-handy Operator´s manual... -
Page 18: Led Indications
- Indicator flashes red at overheating, sealing function is blocked. - Indicator lights red one second in case of short circuit, sealing function is blocked. - Indicator lights red in case of battery low level, sealing function is blocked. CS546 Qseal-handy Operator´s manual... -
Page 19: Installation
• Use the instrument in an area free from vibration and with a room temperature of 15 - 35°C (60 - 95°F), and relative humidity 10% - 90%. • Handle the components with care in a clean environment. CS546 Qseal-handy Operator´s manual... -
Page 20: Installation Procedure
Perform a test seal on an empty or water filled tube to ensure proper operation. Caution! Only use the enclosed battery charger for charging the battery unit. Note! Ensure that cable to handle is connected before use. CS546 Qseal-handy Operator´s manual... -
Page 21: Functional Description
3.1 Description of Sealing The indication for use of Qseal-handy is a need for seal and separation of tubing or bags in blood component sets during blood and plasma donation or other blood component preparation. -
Page 22: Checking The Battery Unit
To guarantee a long lifetime for the rechargeable battery, please observe the following requirements: Charge the battery at temperature between 5 and 35°C (40-95°F). Note! If the indicator ❷ does not light up, check the connection to the charger and mains. ❶ ❷❸ ❹ CS546 Qseal-handy Operator´s manual... -
Page 23: Operating Instructions
Caution! Always check the seals when the battery capacity is low (20% or less). Warning! Qseal-handy uses radio frequency (RF) energy to generate heat for sealing. Users should be cautious of potential electrical shocks or hazards while hand- ling this sealer. Always keep your fingers away from the electrodes in the slot. -
Page 24: How To Seal Tubes
Caution! In case of sealer malfunction (intermittent operation, poor seal quality, the sea- ling time seems too long or too short) contact your local Conroy Medical representative for assistance. Caution! Periodically check the pattern of the sealing visually (see picture below). -
Page 25: If The Sealer Doesn´t Start
Clean and dry the electrodes Low/no capacity in battery Check/charge battery Over heated (red blink) Let the Hand unit cool down. No seals Check battery unit and connection. If the sealer still doesn’t start, see chapter 6 for further information. CS546 Qseal-handy Operator´s manual... -
Page 26: Cleaning
Do not use chemical or abrasive cleaners such as acetone, ammonia or similar. Do not use sharp edged tools for cleaning, which could damage the finish of the units. Caution! Do not allow liquid to flow in the electronic part of the machine. CS546 Qseal-handy Operator´s manual... -
Page 27: Battery Unit
Clean once per week or more frequently, as required, if spillage of blood occurs. For cleaning the electrodes remove the mobile electrode. spring lock 1. Pull the green trigger to 2. First push inward, then “click” to release the front pull out the electrode. electrode. Push spring lock forward. CS546 Qseal-handy Operator´s manual... - Page 28 To insert the front electrode again, see chapter 6.2. Caution! Do not dip the units in liquid, as they are not waterproof. Intruding liquid will cause malfunction, tiny arcs and void the warranty. CS546 Qseal-handy Operator´s manual...
-
Page 29: Troubleshooting
Clean the electrodes, see chapter 5.2. Mobile electrode out of position. See chapter 5.2, assembly of electrode. Hand unit defective. Change hand unit or contact your local C.M. representative. Other cause. Contact your local C.M. representative. CS546 Qseal-handy Operator´s manual... - Page 30 Thereafter carefully insert a pin (Ø3-4 mm, 100 cleaning. spring can come out of mm long) in the front hole where the electrode is position. inserted and slightly push it downwards. Be care- ful; do not scratch the surface with the pin. CS546 Qseal-handy Operator´s manual...
-
Page 31: Warranty And Service
7. Warranty and Service Information on the warranty and the service provided by Conroy Medical is listed below: 7.1 Warranty Conroy Medical guarantees that the equipment shall be free from defects in material and workmanship when delivered to the original purchaser. Conroy Medical´s sole ob- ligation shall be limited to repair or replacement, at Conroy Medical´s option and ex-... -
Page 32: Service
While under Conroy Medical warranty, the instrument must not be opened by unautho- rized personnel. Contact your local Sales Office or approved repair vendor for service and repair information for all Qseal-handy instruments. Shipping costs for all units re- turned to Conroy Medical or Conroy Medical´s authorised representative shall be paid by the original purchaser. -
Page 33: Product Disposal
7.3 Product Disposal Product Disposal For disposal of Qseal-handy, or parts thereof, (including accessories) at the end of the calculated life cycle of 7 years, please ensure the following: • Do not dispose Qseal-handy as unsorted municipal waste. • Collect the Qseal-handy separately. -
Page 34: Eu Declaration Of Conformity
Regulation (EU) MDR 2017/745 for medical device and Directive 2011/65/EU (RoHS). This declaration is supported by the quality system approval to ISO 13485 issued by Intertek IMNB. This declaration of conformity is issued under the sole responsibility of Conroy Medical AB. Upplands Vaesby, 2024-10-07 Place and date Nicklas Lundman, CEO CS546 Qseal-handy Operator´s manual... - Page 36 Operator´s Manual CS546 Portable Battery Sealer conroymedical.com...
