TV Installation and Connection Guide
Identifying Front and Rear Panels

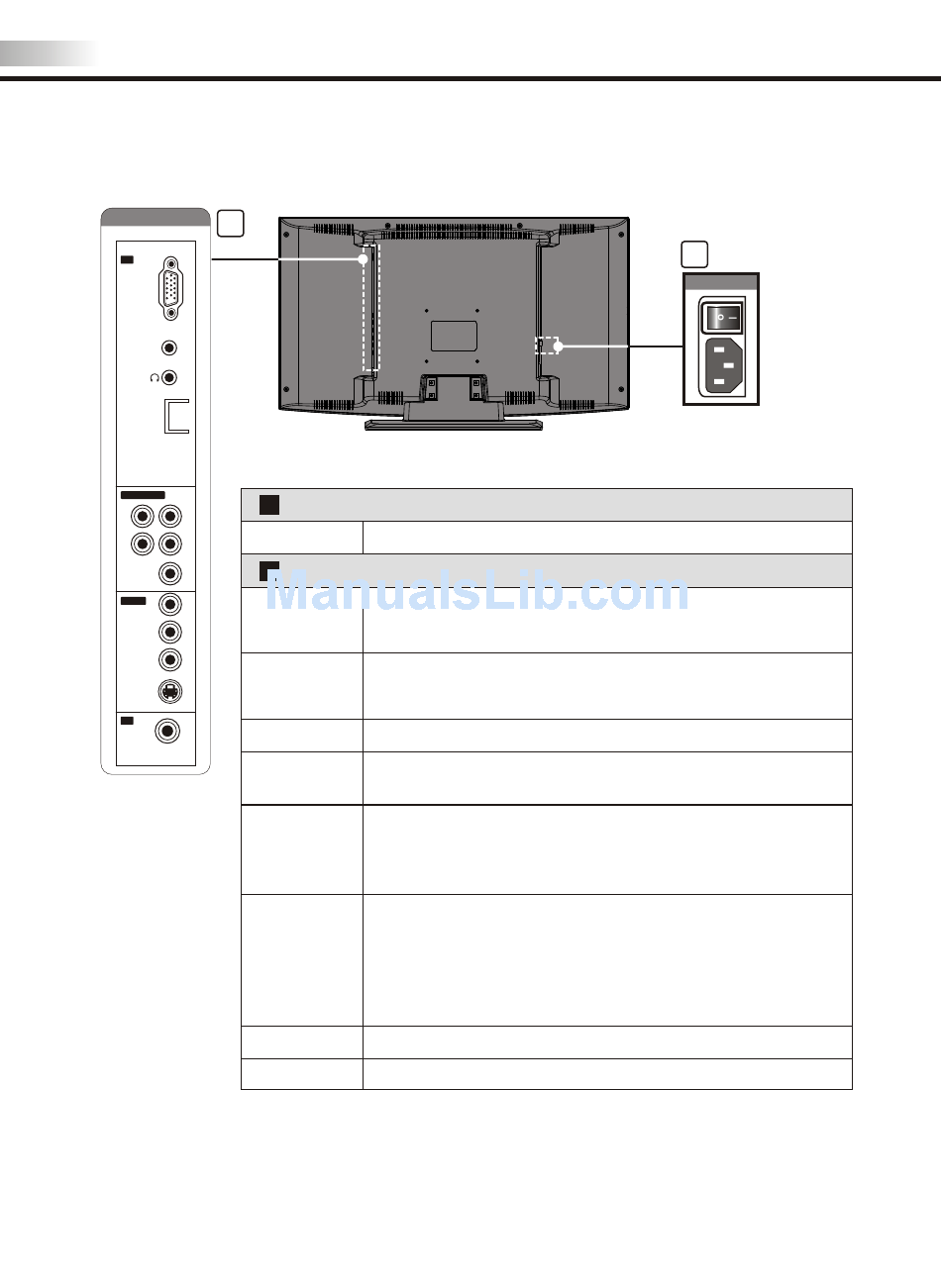

Rear Panel

2
VGA / AV
PC
VGA
Audio In
Service
Port
Component
1
R
Pr/Cr
AC In
L Pb/Cb
2
Y
VIDEO
VGA (PC)
R
Port
L
Audio input
Video
S-Video
TV
Headphone
ANT
Service Port
Component
Video
Antenna
(ANT)
Power Connections
The power cord connects here.
VGA / AV Connections
The VGA input can be used for analog RGB signals from a
personal computer. VGA has 1 Audio input.
The audio input sends the TV's connected audio signals to an
AV receiver or other equipment.
The headphone jack is also located here for audio output.
Only for Service Technician use, and do not support any
device for user.
These inputs can be used for the connection of A/V equipment
with component video outputs, such as a DVD player, Digital
Satellite Receiver, or compatible Video Game System.
These inputs can be used for the connection of a VCR, Super
VHS (S-VHS)
TV. There is an S-Video input for video.
NOTE: The S-Video input has a better quality of picture than
a composite Video signal.
Antenna receives signals from VHF / UHF antennas or a
cable system.
11
VCR,DVD player, or other video devices to the
1
AC IN
