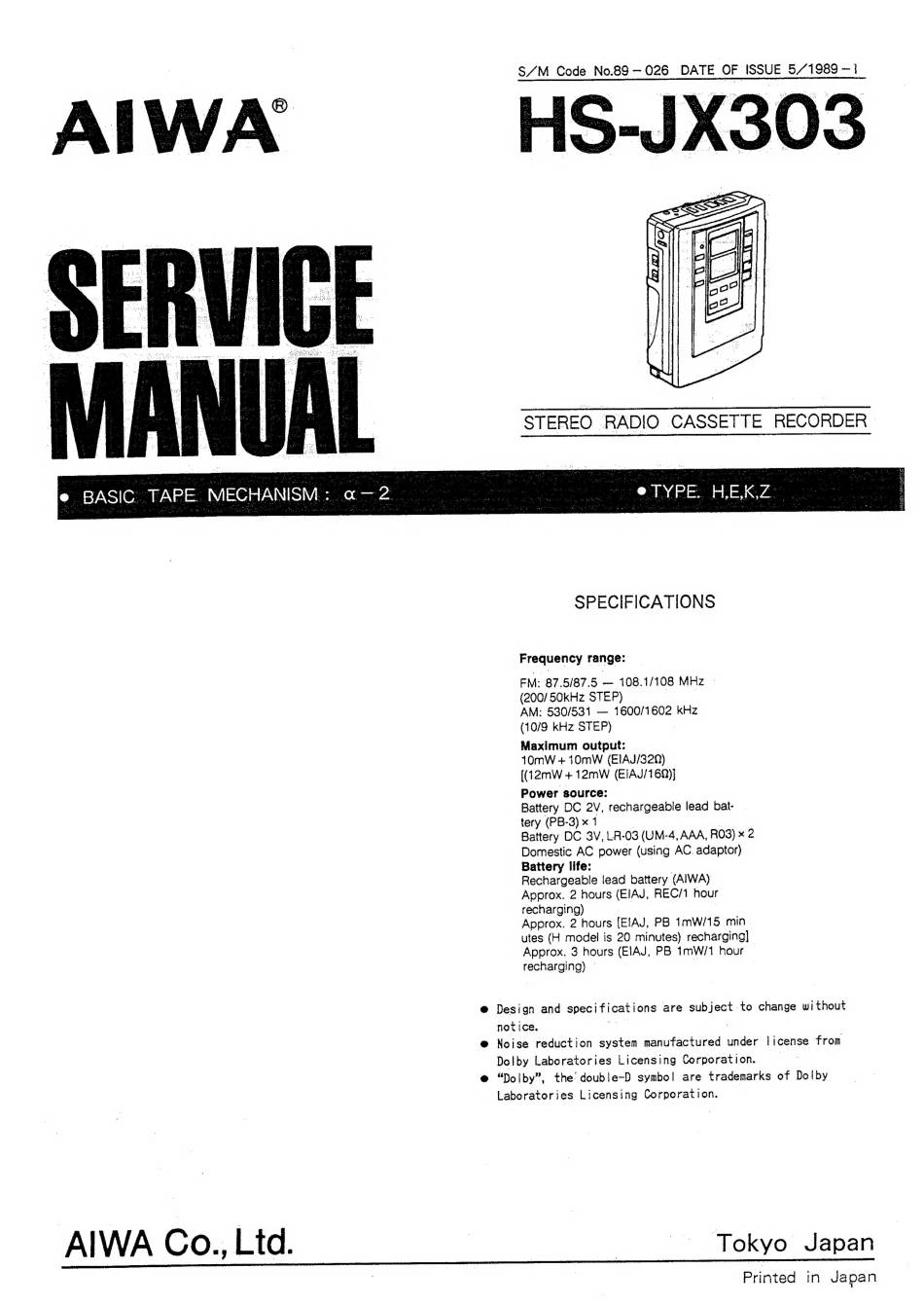

Aiwa HS-JX303 Service Manual

S/M Code No.89—026 DATE OF ISSUE 5/1989 ~|
STEREO RADIO CASSETTE RECORDER
SPECIFICATIONS
Frequency range:
FM: 87.5/87.5 — 108.1/108 MHz —
(200/ 50kHz STEP)
AM: 530/531 — 1600/1602 kHz
(10/9 kHz STEP) ,
Maximum output:
10mW + 10mW (EIAJ/320)
((12mW + 12mW (ElAd/169)]
Power source:
Battery DC 2V, rechargeable lead bat-
tery (PB-3) x 1 | |
Battery DC 3V, LR-03 (UM-4, AAA, R03) x 2
Domestic AC power (using AC. adaptor)
Battery life:
Rechargeable lead battery (AIWA)
Approx. 2 hours (EIAJ, REC/1 hour
recharging) | |
Approx. 2 hours [E!AJ, PB 1mW/15 min.
utes (H model is 20 minutes) recharging]
Approx. 3 hours (ElAJ, PB 1mW/1 hour —
recharging) — . |
Printed in Japan
