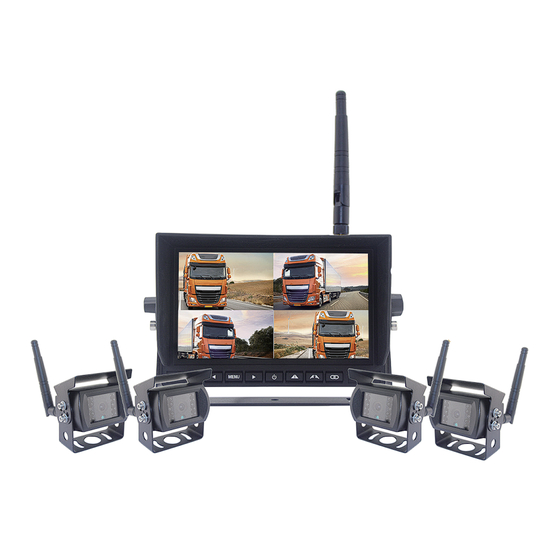

- Page 1 HD WIRELESS QUAD SYSTEM Monitor & Camera 3210 Wireless Camera System Before using the product, please read this manual carefully and keep it for future reference. * System shown with 4 cameras - 1 Camera Included in this kit...
-
Page 2: Product Specification
Attention 1. Product specification For your safety do not watch video or change settings of the monitor while driving. There are no Monitor user serviceable parts in the Monitor or Camera. If you have a operational issue please contact the installing dealer to help resolve the issue. Opening the monitor or camera will void the warranty. -
Page 3: Product Introduction
2. Product Introduction Camera Monitor Features CMOS 1/2.7” Image sensor 1920*1080 pixels Pixel 1). Antenna - Standard and Blade Antennas Supplied 2400-2483.5MHZ Operation frequency range 200M in open area 2). Display screen Transmission distance PAL/NTSC automatically System 3). ID Plate FHSS(Adaptive frequency hopping) Spread spectrum mode 4). -
Page 4: System Setting
Camera Features Camera pairing Press Menu, select "Cameras" then "Pairing Camer", then press the button“ ” on the front panel to confirm and enter into cameras pairing or cancel pairing. Use the Right / Left arrows to select the mode and press Press “ ”... -
Page 5: Record Setting
4. Connection Introduction Record setting Open the main MENU interface and select record settings, then press the button“ ” to confirm. Press“ ”or“ ” to enter into the record mode and record time setting, and press the MENU key to exit. As following picture. Video playback Open the main MENU interface to select playback, then press the button “...
