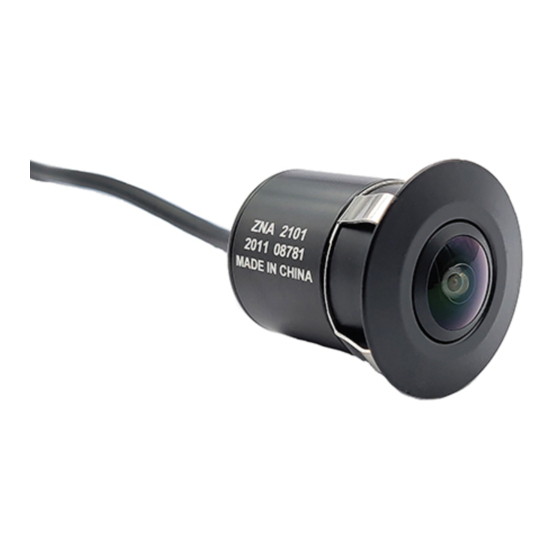

- Page 1 2101/2102 Series Flush Mount Camera Installation Manual Features • All Aluminum chassis • High Resolution, 1/3-inch CMOS Color Camera • IP69K Waterproof Housing • Wide View Angle • Selectable Image: Normal/Reverse • Heavy Duty 4 Pin Screw Lock Connection • Selectable Parking Line –...
- Page 2 Camera Installation Find a suitable location on the vehicle where the camera will not interfere with any equipment or that other vehicle components will block the line of sight. Verify that the planned mounting location is accessible from behind and that you have access to route the wiring inside the vehicle. For FMVSS111 compliance, you must ensure the mounting angle will give a clear view of the rear of the vehicle and the objects behind it.
- Page 3 Connecting the Video Signal 1. The camera uses a single Heavy-Duty cable, and the camera power and signal will be provided through this cable from the monitor. 2. If using an alternative monitor, use an adaptor harness to split the signal to RCA connections then connect to the female RCA input on the alternative monitor.
- Page 4 • Check the rear-view camera wiring connection and connection at the monitor. • Check the monitor fuse if blown, replace ONLY with the correct size. Video image is not sharp enough Clean the camera lens. Zorg North America 9/2020...
- Page 5 Warranty The Company (Zorg North America) warrants that if this product or any part thereof, under regular use, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with a new or reconditioned product (at the company's option) without charge for parts and repair labor.
