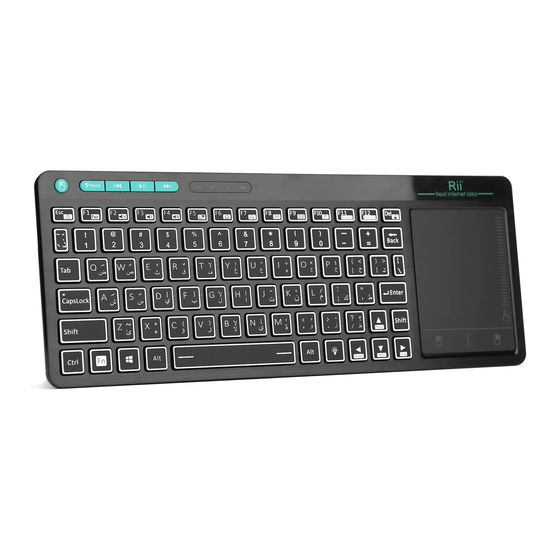

- Page 1 Dual Mode Multimedia Keyboard To provide complete input and control for Smart TV, TV Box, tablets, computers and other mobile devices USER MANUAL New product With MULTI TOUCH MODEL: RT518S VER: V2.0...
-
Page 2: Packing Contents

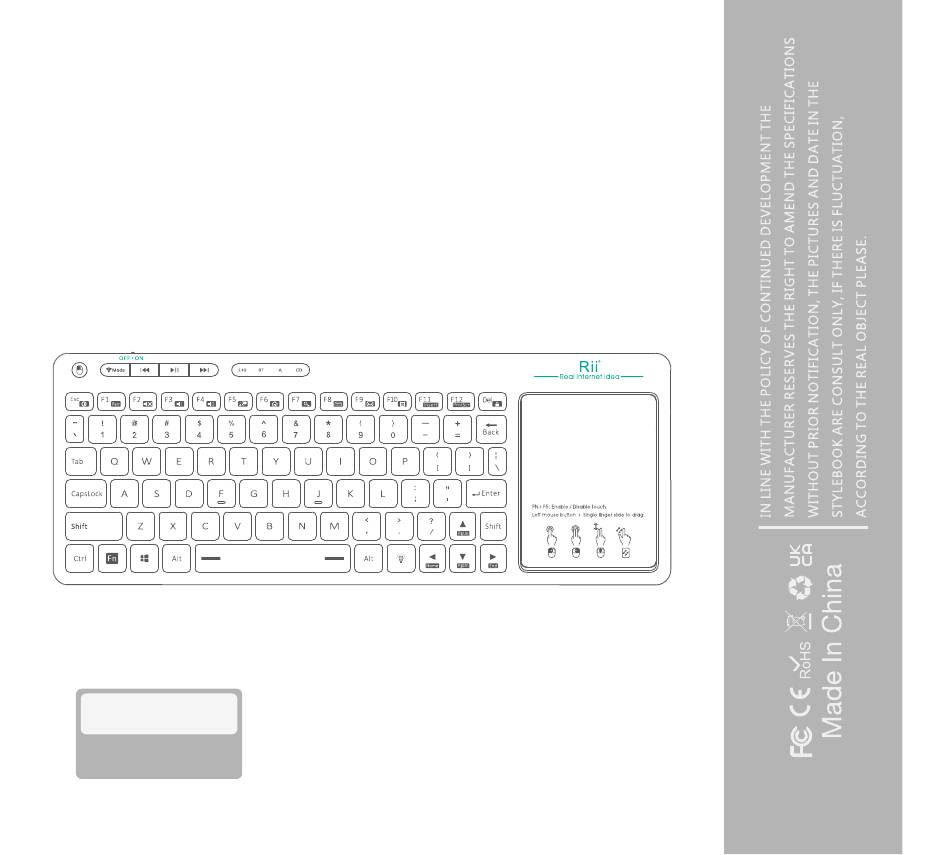

Dual Mode Multimedia Keyboard To provide complete input and control for Smart TV, TV Box, tablets, computers and other mobile devices USER MANUAL New product With MULTI TOUCH MODEL: RT518S VER: V2.0 Multimedia keyboard Wireless USB receiver Extension cable User manual (placed in the keyboard’s back slot) - Page 3 new receiver into your main device’s USB port, when the green light on means repair success. Touchpad function 1. All aero can be used to touch for moving the cursor; 2. Two ngers slide up and down for the mouse wheel function; 3.
- Page 4 Solution: This keyboard has di erent layout. Please know exactly which layout do you want. For example. If you want and buy UK layout and you need to use @, please change your device’s system language to British English. Then it can work by shift+@. Problem: don’t work all the time.
- Page 5 This 2.4G wireless keyboard touchpad combo is the rst multimedia keyboard of Rii which supports PC Tablet Laptop Raspberry PI IOS Linux HTPC IPTV Google Smart TV Android Box XBMC Windows 2000 XP Vista 7 8 10 (Black)
-
Page 6: Speci Cation
Speci cation 1. 2.4G Mode Left mouse button 2 3 4 2. Bluetooth Mode 3. Caps Lock 4. Charge Multimedia Quick Start: Fn+F5=Enable / Disable touch From ESC TO F10 Fn+F6=Home Fn+ESC=Switch auto sleep model Fn+F7=Search FN+F1=Pairing Fn+F8=Menu (PC) Fn+F2=Mute Fn+F9=Email (PC) Fn+F3=Volume –... - Page 7 having no key press and no touch in 3 minutes(model 1) or 2 hours(model 2). In sleep mode all leds are out. The machine can wake up by pressing any key. You can choose model by pressing FN+ESC. Default is 3 minutes. If you feel 3 minutes is too short, you can press FN+ESC to convert it into 2 hours model.
- Page 8 Possible issue: 1. lower battery. 2. accidently press F5 and turn o the touchpad function. 3. Defective item. Solution: 1. Please charge the keyboard and have a try. 2. please press F5 to turn on the touchpad function. 3. Contact support@riitek.com for a replacement. Problem: 1.
- Page 9 Features • 2 in 1 2.4G Multi function multimedia 83 keys wireless keyboard with touchpad combo. Speci cation Product Size: 317.2 x123.6x18.3mm/12.4x4.8x0.7in Weight: 340g Temperature: －10℃ to ＋55℃ Battery: Built-in Rechargeable Lithium Battery Battery Capacity: 400mAH Operate Distance: MAX 10m TX Power: less than +5dBm Operational voltage: 3.7V Operational current: 120mA...
- Page 10 Operation instruction Bluetooth-installation When the keyboard is turned on, the mode keeps the same before the last power o . The Blue indicator ashes, it means on the Bluetooth mode. The green indicator ashes, it means on the 2.4G mode. Press the MODE key to switch the modes between the Bluetooth and 2.4G.
- Page 11 Problem: Unit does not respond Possible issue: 1. Low batterypower. 2. Unit is not turned on. 3. Not plug the USB receiver into your device’s USB port. Solution: 1. Charge the device for at least 15 minutes. 2. Check if the switch selected to the ON position. 3.
-
Page 12: After-Sale Service
Possible issue: The smart TV do not support external input device. Solution: Before you place the order, please use a wired keyboard to check if it can work. if you do not do that, please use it in other device or just return with well package and for a full refund.
Need help?
Do you have a question about the RT518S and is the answer not in the manual?
Questions and answers
can it be setup to power on your laptp
No, the Rii RT518S cannot be set up to power on a laptop. It functions as a wireless and Bluetooth keyboard with multimedia controls, but it does not have the capability to turn on a laptop.
This answer is automatically generated
how can i toggle between two BT paired computers with Rii RT518S
The Rii RT518S does not support toggling between two Bluetooth paired computers directly. It allows switching between Bluetooth mode and 2.4GHz RF mode using the "Mode" button. To switch devices, you must manually pair with the desired Bluetooth device each time.
This answer is automatically generated
