- Page 1 Riimini i6 -[2.4GHz+IR] User’s Manual Ver:1.1...
- Page 2 Safety Precautions Safety Matters To avoid injury,death of personnel or damage to the equipment the operator must refer to the explanations in this User’s Manual. Battery: There is a lithium-ion rechargeable battery in this device.Don’t water this device,or put it in a humid environment for a long time or the device will be damaged.
- Page 3 Turn off this device in hospital Please turn the device off in areas with “no wireless device”indication. Wireless devices may interfere with implanted cardiac pacemakers,hearing aids and other. Medical implant devices. Interference All wireless devices may be subject to interference, thus affecting the performance of this product.

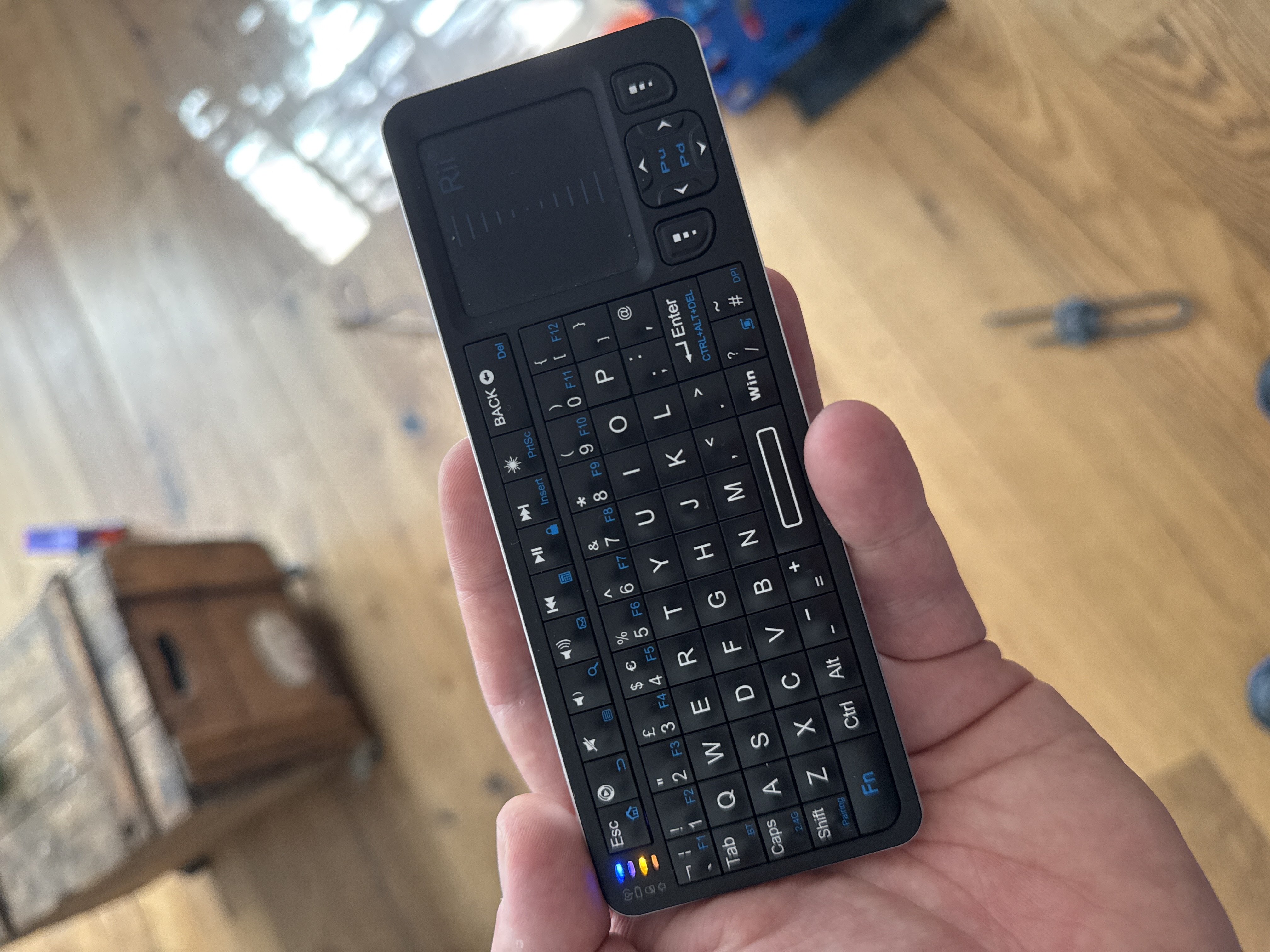

- Page 4 Overview This is a wonderful combo,2.4GHz Wireless mini QWERTY keyboard,Touch Pad combo,with USB interface receiver. This groduct consists not only of normal wireless keyboard keys,but also of multimedia control keys and PC gaming control keys.It has built-in programmable smart touch pad-the world’s first Touchpad which can be used in horizontal and vertical directions.It has power indicator,RF signal indicator,CAPSLOCK light,low-voltage indicator...
- Page 5 The multifunctional combo with wireless keyboard & touchpad Touchpad The touchpad can be used in a horizontal or vertical position. To switch between horizontal or vertical mode, hold the Fn key and hit the Alt key. Connecting the receiver Take out the 2.4G dongle from the giftbox, and insert to the devices with a standard USB interface.
- Page 6 above in the diagram. Auto sleep and wake feature The keyboard also features an auto sleep and auto wake mode. If there is a long period of inactivity, the keyboard will automatically go into a sleep mode. During the sleep mode, the user can wake the unit up by pressing any key.
- Page 7 Fully open type set-top box remote control HOW TO OPERATE 1. Press the Set1/Set2 of “Riimini” in 3 seconds, the Riimini 's light will be flash one time then long-time on; 2. Aim the Riimini 's infrared LED at your original remote control's infrared LED in parallel alignment (PS: the relative distance not more than 7 cm), then press any button on Riimini, the...
- Page 8 3. Press any button on original remote control, Riimini 's light will be flash three times then long-time on,it is success in learning. 4. Repeat the step 2-4, until finish learning all keys. 5. Press the set key or 10 seconds without any operation, the device will retire from the learning state.
- Page 9 Appendix Technical parameters Specification Measurements (L x W x H): 151mm x 59mm x 11mm Weight (grams): 98g The parameters on the top interface: Frequency range：2401-2480MHz Operational Range: up to 30 meters Transmit power : +4db Max. ...
- Page 10 Fedora-7.0 tested) HD Player,TV set Set-Top BOX ,DVD/VCD/CD equipment. Air Conditioning Remote Control. Maintenance Do not attempt to disassemble the device or replace rechargeable battery. Doing so will void the warranty. The battery will discharge if stored for a long period of time without usage.
- Page 11 Note: The device has to be kept a distance of 10cm from human body and its has no ad-hoc function. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this devic e may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
