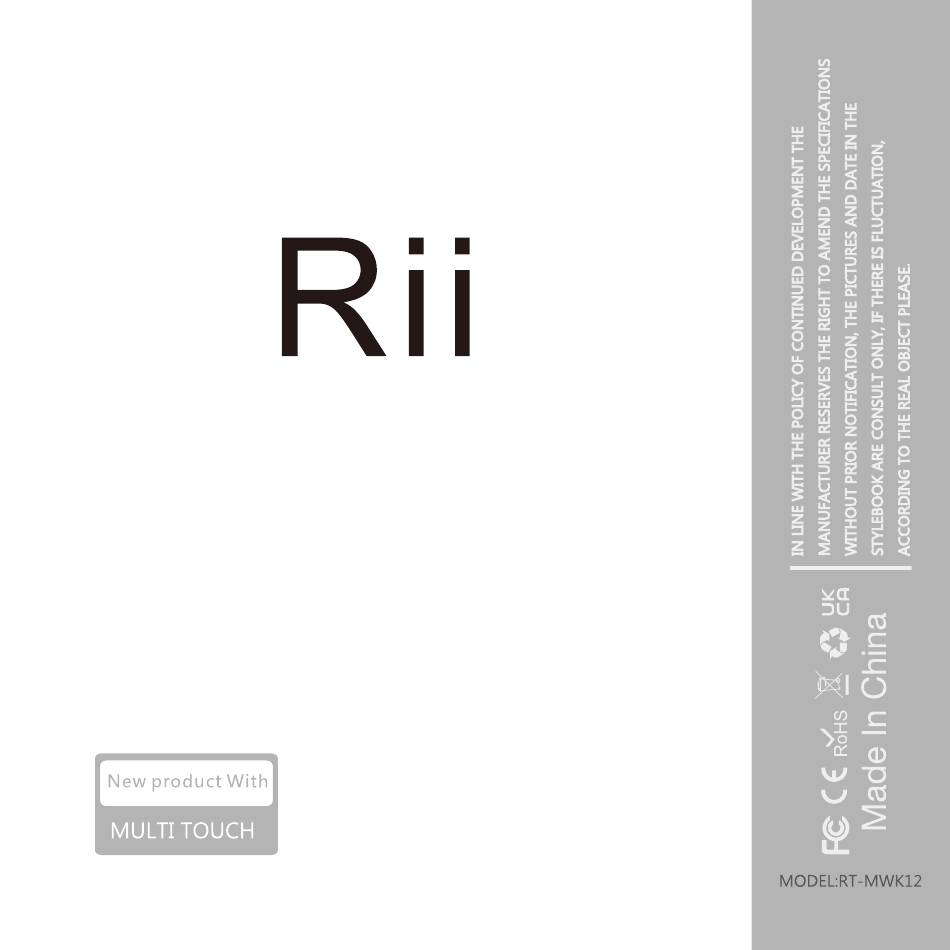

- Page 1 K12+ Multifunction slim mini wireless keyboard user manual VER:V1.3...
-
Page 2: Product Image
Overview Thank you for purchasing the Wireless Keyboard with TouchPad combo. You can use it for emails, online chat, or to enjoy your favourite games. It is compatible with HTPC, Smart TV, Android based TV boxes as well as the Sony Playstation3. Use it with your HTPC on your Sofa to browse, access and play your media les in comfort. -
Page 3: Package Contents
Package contents • Wireless keyboard • USB wireless receiver (located under the removable back cover) • User manual • USB charging cable System requirements • Windows 2000 • Windows XP • Windows Vista, Windows CE, Windows 7, Windows 8 Please note: 1. -
Page 4: Combination Keys
2. The unit is not suitable for smart TVs which do not support external input devices and we advise that you con rm external input device support before purchasing this unit. To check whether your smart TV supports external input devices please connect a wired USB keyboard and con rm it functions correctly. -
Page 5: Led Indicator
Adjust cursor speed, Fast(default) or Slow. Deactivate/Activate touchpad function: defaulted to be activated. Led indicator LED1 LED2 LED3 LED1 = Charging indicator: Illuminated when charging, o when charging, unlit when the battery is fully charged and during normal use. LED2 = CAPS Lock: Illuminated when keyboard is in capitalized mode. -
Page 6: Speci Cations
Speci cations Receiver (dongle): Nano style Connect port: With USB2.0 above RF mode: 2.4Ghz GFSK Transmission distance: Up to 10 meters Transmission Power: Less than +4db Rower supply: Rechargeable 280mAh polymer Lithium-ion battery Charging voltage: 4.4V~5.25V Charging current: 300mA Sleeping current: 86uA Operation voltage: 3.3V Product weight: 210g Product size: 260*83*13.5mm... -
Page 7: Connecting The Receiver
• Using the power switch to turn on the keyboard, the keyboard will be paired automatically and no further actions are required - you are now ready to use your keyboard! Note: USB cable can be used for battery charging if the connection fails or you have a replacement USB receiver, you can perform pairing as follows: 1. -
Page 8: Auto Sleep And Wake Up Feature
Touchpad This touchpad supports multi- nger functions. (1) A single nger tap performs a left mouse button click. (2) Tapping with two ngers performs a right mouse button click. (3) The mouse pointer is controlled by sliding a single across the touchpad. -
Page 9: Charging The Battery
In sleep mode, all LEDs are turned o . Click any key to wake up the keyboard. Switching o the keyboard after use After using the keyboard, push the switch to the “OFF” position, which turns o the keyboard. The USB receiver does not need to be pulled out from the PC. -
Page 10: Maintenance
Warning • When charging nishes, remove the charge cable. • Never try to open or repair this product by yourself. • Keep this device away from uids, such as water. Maintenance • Do not attempt to disassemble the device or replace the rechargeable battery. - Page 11 Possible issue: 1. Low battery power. 2. Unit is not turned on. 3. The USB receiver is not correctly connected to the device. Solution: 1. Charge the device for at least 15 minutes. 2. Check if the power switch in the NO position. 3.
- Page 12 Possible issue: Your device’s operating system language setting does not match the keyboard layout. Solution: If you have purchased the correct keyboard for your region i.e. UK English, please change your device’s region and language settings to match. Problem: Unit does not function correctly at all times. Possible issue: 1.
- Page 13 Possible issue: 1. Not able to automatically pair correctly. 2. Defective receiver. Solution: 1.Please press FN + ESC to switch auto sleep mode to 2 hours. 2. Contact support@riitek.com for a replacement unit. and remove the RF receiver. Ensure the keyboard is fully charged and powered o .
- Page 14 2. Please press FN + left mouse to enable the touchpad. 3. Contact support@riitek.com for a replacement. Problem: 1. Single key pressing are repeated i.e. pressing “a” results in “aaaaaa... ” . 2. Working signal distance is only 1-2 m or less. Possible issue: Signal interference.
- Page 15 Problem: Only the touchpad works. Possible issue: Your smart TV does not support external input devices. Solution: Please use the keyboard with another device or contact your retailer to arrange a refund. Disposal Always dispose of the used appliance at a recycling center.
