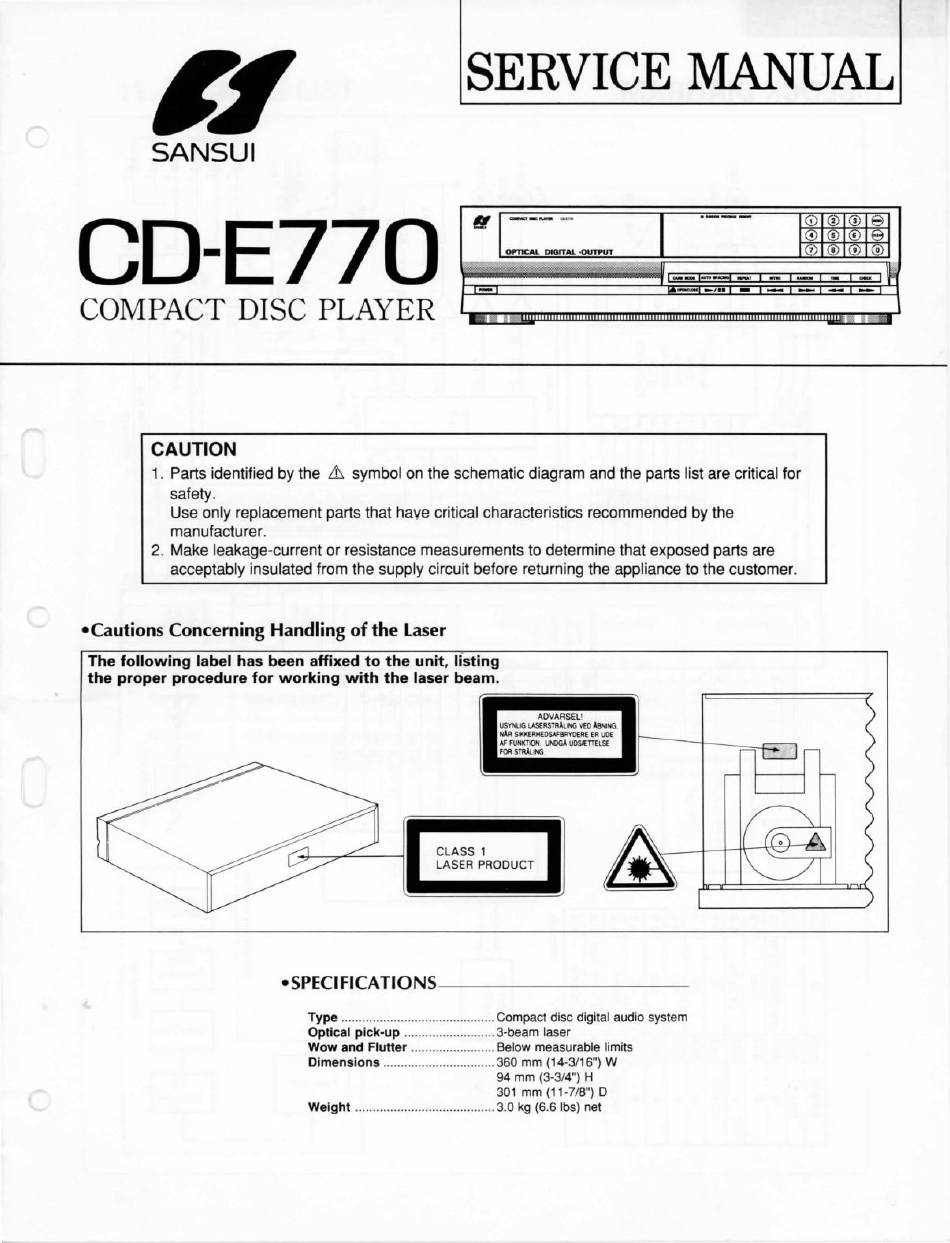

Sansui CD-E770 Service Manual

O
SANSUI
SERVICE MANUAL
CD-E770
COMPACT DISC P L A Y E R
OP n CA L DIGITAL-OUTPUT
O '
® ®
8
OP n CA L DIGITAL-OUTPUT
0
® ®
e
OP n CA L DIGITAL-OUTPUT
®
® ®
I I • - I — I
I ~ I ~ I • = n -
3
c
CAUTION
1. Parts identified by the A symbol on the schematic diagram and the parts list are critical tor
safety.
Use only replacement parts that have critical characteristics recommended by the
manufacturer.
2. Make leakage-current or resistance measurements to determine that exposed parts are
acceptably insulated trom the supply circuit before returning the appliance to the customer.
»Cautions Concerning Handling of the Laser
The foilowing label has been affixed to the unit, listing
the proper procedure for working with the laser beam.
[
CLASS 1
LASER PRODUCT
• SPECIFICATIONS
Type
Compact disc digital audio system
Optical pick-up
3-beam laser
Wow and Flutter
Below measurable limits
Dimensions 360 mm (14-3/16") W
94 mm (3-3/4") H
301 mm (11-7/8") D
Weight
3.0 kg (6.6 Ibs) net
