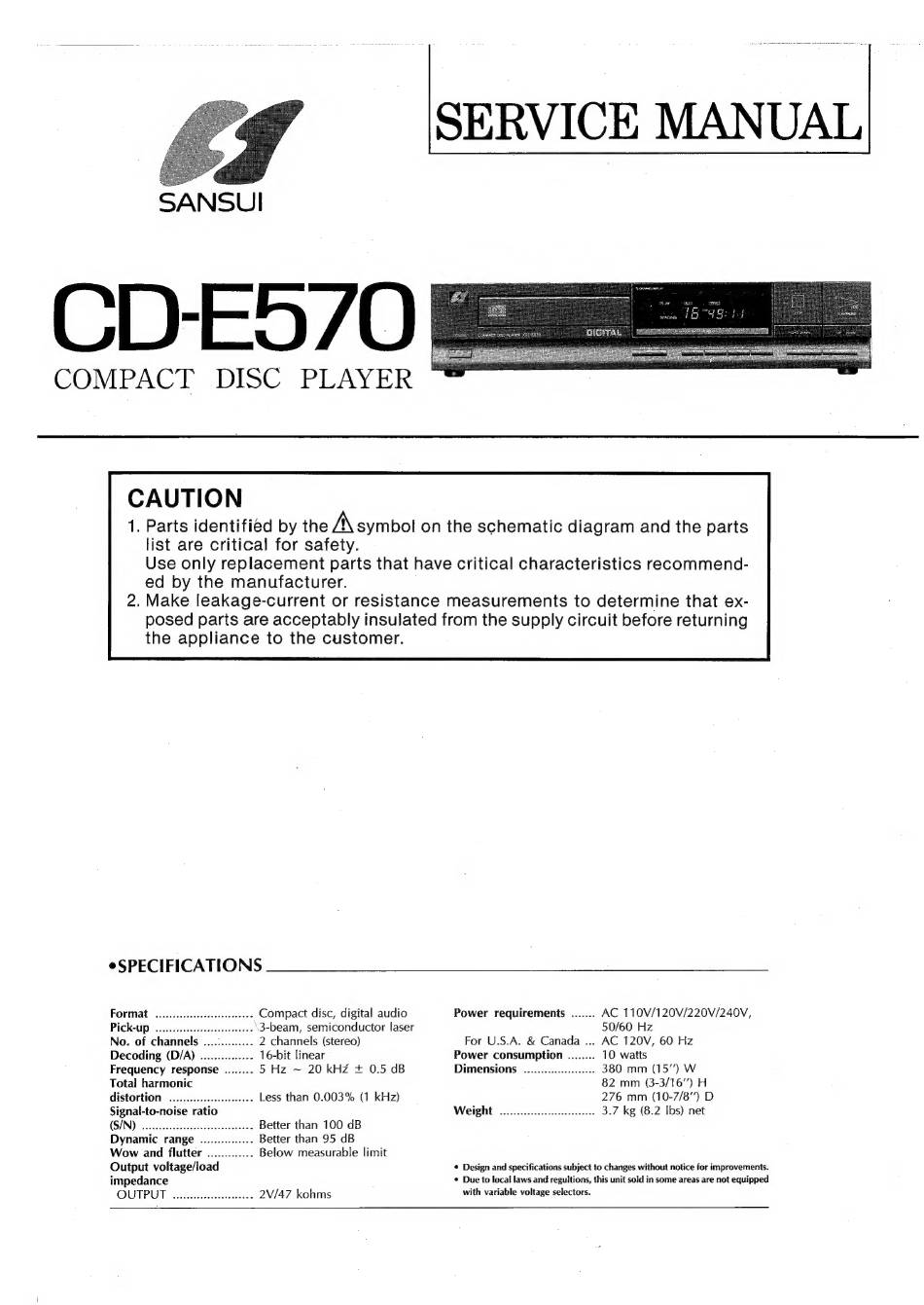

Sansui CD-E570 Service Manual

SANSUI
CD-E5/0&
COMPACT DISC PLAYER
eae ee =
a eee a eas ae ee
CAUTION
1. Parts identified by the A\ symbol on the schematic diagram and the parts
list are critical for safety.
Use only replacement parts that have critical characteristics recommend-
ed by the manufacturer.
2. Make leakage-current or resistance measurements to determine that ex-
posed parts are acceptably insulated from the supply circuit before returning
the appliance to the customer.
SPECIFICATIONS
Format 0... cee eer Compact disc, digital audio Power requirements ....... AC 110V/120V/220V/240V,
Pick-up ......... ee .....3-beam, semiconductor laser 50/60 Hz
No. of channels ..... 2 channels (stereo) For U.S.A. & Canada ... AC 120V, 60 Hz
Decoding (D/A) ............... 16-bit linear Power consumption ........ 10 watts
Frequency response ........ 5 Hz ~ 20 kHz + 0.5 dB Dimensions ................. 380 mm (15") W
Total harmonic 82 mm (3-3/16") H
distortion .............0.0 Less than 0.003% (1 kHz) 276 mm (10-7/8') D
Signal-to-noise ratio Weight 20.0... eee 3.7 kg (8.2 Ibs) net
(SIN) vvesestvestenedtieticthess Better than 100 dB
Dynamic range Better than 95 dB
Wow and flutter ............. Below measurable limit
Output voltage/load © Design and specifications subject to changes without notice for improvements.
impedance * Due to local laws and regultions, this unit sold in some areas are not equipped
OUTPUT isssscescssosesscccen 2V/47 kohms with variable voltage selectors.
