Summary of Contents for Mutec MC1.2+

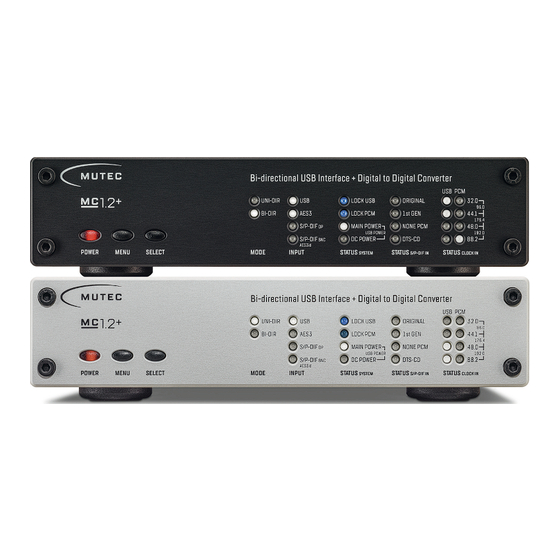

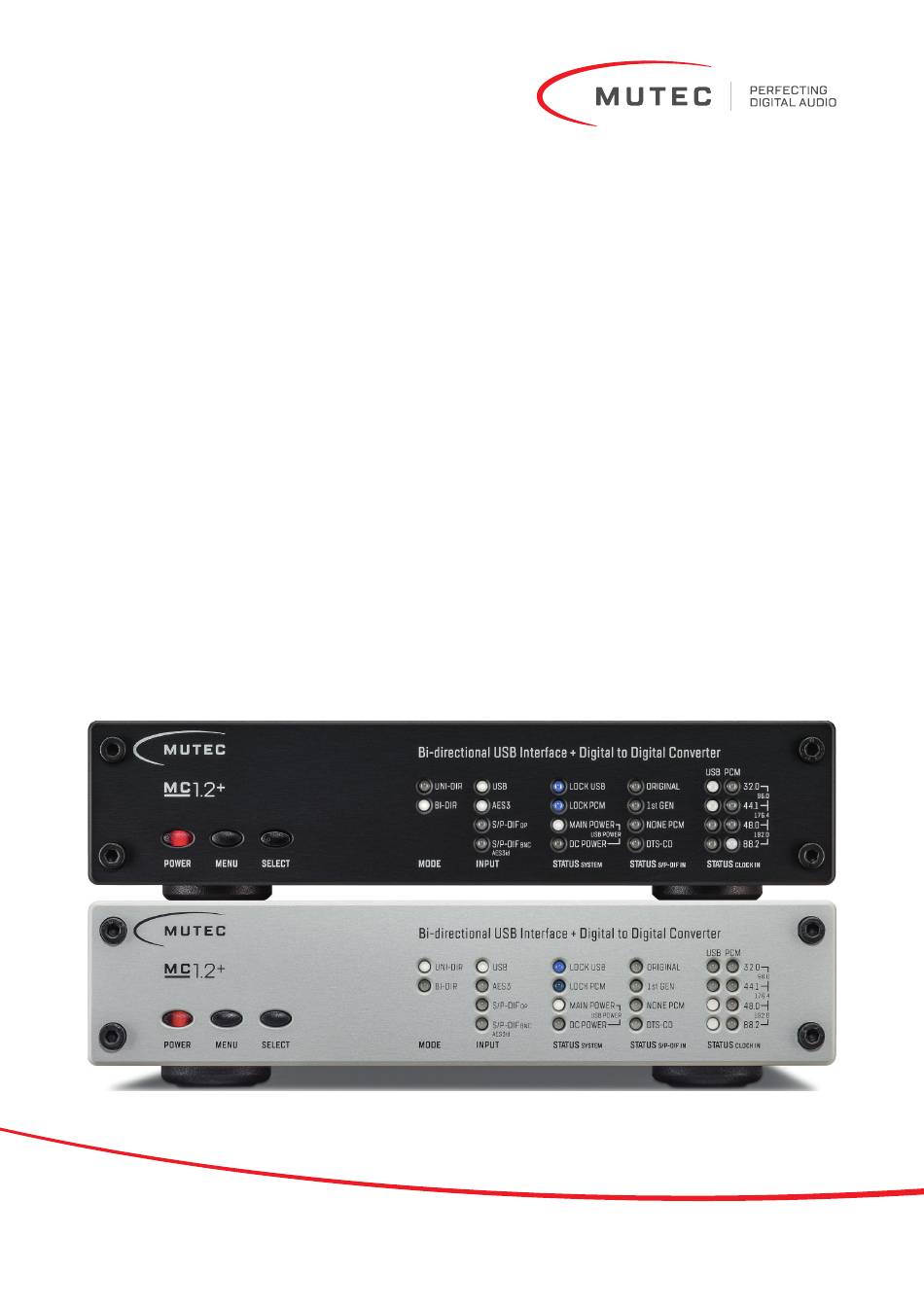

- Page 1 Manual MC1.2+...
-
Page 3: Table Of Contents
Wiring the USB, AES/EBU, AES/EBUid, S/P-DIF Interfaces 8 Control Elements and Terminals Front Panel Rear Panel USB Driver Installation & Windows Settings MUTEC USB Audio Class 2 0 Driver for Windows General Features ASIO Features WDM/DirectX Features Driver Download and Installation Procedure... -
Page 4: Precautions
If the unit is damaged, please do NOT return This symbol, a flash of lightning inside a triangle, it to MUTEC GmbH, but notify your dealer and the shipping alerts you to the presence of non-insulated dan- company immediately Otherwise, any liability claims will not... -
Page 5: Warranty Regulations
To obtain warranty service, the customer must call or write §3 Warranty Regulations to MUTEC GmbH before returning the unit All inquiries must be accompanied by a problem description and the original The return of the completed registration card, or online regis- buyer’s invoice Devices shipped to MUTEC GmbH for repair... -
Page 6: Introduction
PSC 75 RCA/RCA + PSC 75 RCA/BNC • USB signal regeneration for enhanced audio quality, MUTEC's Prime Select cable series offers excellently suited achieved through an asynchronous and self-powered USB coaxial cables for S/P-DIF digital audio signal transfers with interface 75 Ω... -
Page 7: Product Registration For Warranty And Support
Product Registration for Warranty and Support We kindly ask you to register your MUTEC product through our website immediately after buying This ensures full war- ranty services over a period of three years after purchasing the product Additionally, we provide free technical support... -
Page 8: Installation
Place the MC1 2+ as close as possible to the devices it will The Prime Select cable series from MUTEC offers high-quality be connected to in order to avoid excessive cable lengths Use coaxial cables with 75 Ω characteristic impedance in various... -
Page 9: Control Elements And Terminals
Control Elements and Terminals Front Panel Rear Panel 1) »POWER« 1) »S/P-DIF OUT (Optical)« Red LED lights up when the unit is powered on Transmits an optical S/P-DIF digital audio or blank-frame si- gnal compliant with the IEC 60958 standard Uses a Toshiba 2) »MENU«... -
Page 10: Usb Driver Installation & Windows Settings
When connecting the MC1 2+ to a Windows computer, you Supported Windows sound interfaces include MME, Di- need to install the MUTEC USB Audio Class 2 0 Driver for rectSound, and WASAPI The driver allows stereo and mul- Windows, which is available on the MUTEC website This... -
Page 11: Operating The Mc1.2
OPERATING THE MC1.2+ • MODE + INPUT Menus Lock USB: Lights up when a valid USB signal is detected and locked If this LED is on, the MC1 2+ has successfully syn- The MC1 2+ offers function menus to control its operation, in- chronized with the USB audio stream, ensuring stable USB cluding the MODE and INPUT menus: audio transmission... -
Page 12: Status Clock In
MC1.2+ STATUS CLOCK IN The STATUS CLOCK IN area shows the clock rates of the inco- ming clocks embedded in the USB audio stream and the digital audio PCM signals There are two individual LED rows, one for the USB interface (USB) and one for the selected PCM audio input (PCM) Seven different audio-related clock or sampling rates, respectively, between 32 0 kHz and 192 0 kHz can be analyzed and displayed through each LED row These indicators... -
Page 13: Appendix
Appendix Pin Assignment of the Connectors BNC Input/Output for Optical TOSLINK S/P-DIF + AES3id Input/Output for S/P-DIF Mains 1) Optical signal 1) Signal 2) Ground 1) Neutral (N) 2) Protective Earth (E) USB Input and Output 3) Live, Phase (P) DC Voltage Input DC cable connector for DC voltage input (inclu-... - Page 14 MC1.2+ S/P-DIF Optical Audio Output (OP): MC1 2+ Order Information: • • Interface: 1 x Toshiba Toslink™, EIAJ RC-5720 Front silver: item no 8015-113, • Format, Resolution: IEC 60958, 16 –24 bits EAN Code: 4260342461228 • Lock range: 32 0 kHz to 216 0 kHz •...
