Summary of Contents for WFI W 300

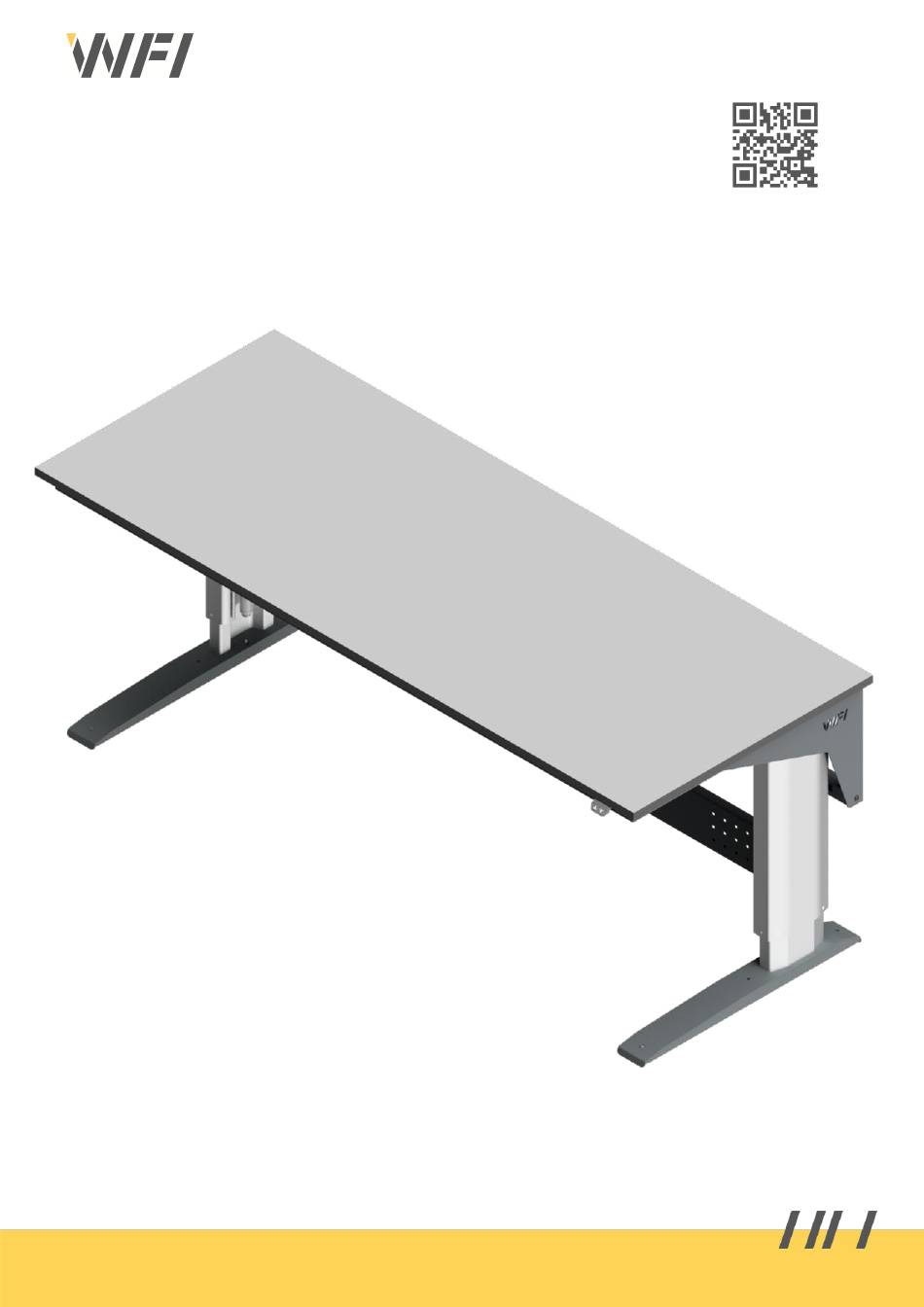

- Page 1 Mounting instructions Workbench W 300...
- Page 2 Mounting instructions Installationsanvisning • Bordet måste placeras minst 120 mm ifrån andra föremål t ex. intillstående bord eller utrustning samt väggmonterade hyllor etc. • Justera bordets skiva i våg med hjälp av stativets ställbara fötter • Kontrollera att elkablar är oskadda och att allt är monterat enligt monteringsanvisningen. •...
-
Page 3: Installation Instructions
Mounting instructions Installation instructions • Place the table at least 120 mm from other objects, eg, adjoining tables, equipment, wall mounted shelves, etc. • Make the top of the table level with the aid of the adjustable feet on the frame. •... - Page 4 Mounting instructions M8x16 M8x12 M8x20 M6x12 TRX 5x20 TRX 6x20 TFX 4x20 TRX 5x50...
- Page 5 Mounting instructions M8x16 8 pcs. 4 on each side M6x12 4 pcs. 2 on each side. Small hole up M8x20 2 pcs. 1 on each side Small hole up M8x12 6 pcs. 3 on each side M8x20 4 pcs. 2 on each side...
- Page 6 Mounting instructions Conector push buttons Insert the cable through the slot on C-profile Push button cable Motor cable 1 Use holes for transporting motor cables to center Motor cable 2 Control unit...
- Page 7 Mounting instructions TRX 6x20 rear frame TRX 6x20 C-profile TRX 5x20 consoles+crossbar TRX 5x20 consoles+crossbar Align table top with rear frame Flange of consoles should be outside the worktop Center the worktop between legs...
- Page 8 Mounting instructions TFX 4x20 2 pcs. TRX 5x50 2 pcs. Insert power cable to the control unit...
- Page 9 Mounting instructions Make sure the table is in level Adjust feets if necessary...
- Page 10 Mounting instructions WFI AB Lidängsvägen 5 SE-335 32 Gnosjö www.wfiab.se Description W300 Art.Code 11-300-600, 11-300-800 Max Load 300 kg WFI AB Lidängsvägen 5 335 32 Gnosjö, Sweden +46 (0) 370 37 13 00 www.wfi.se...
