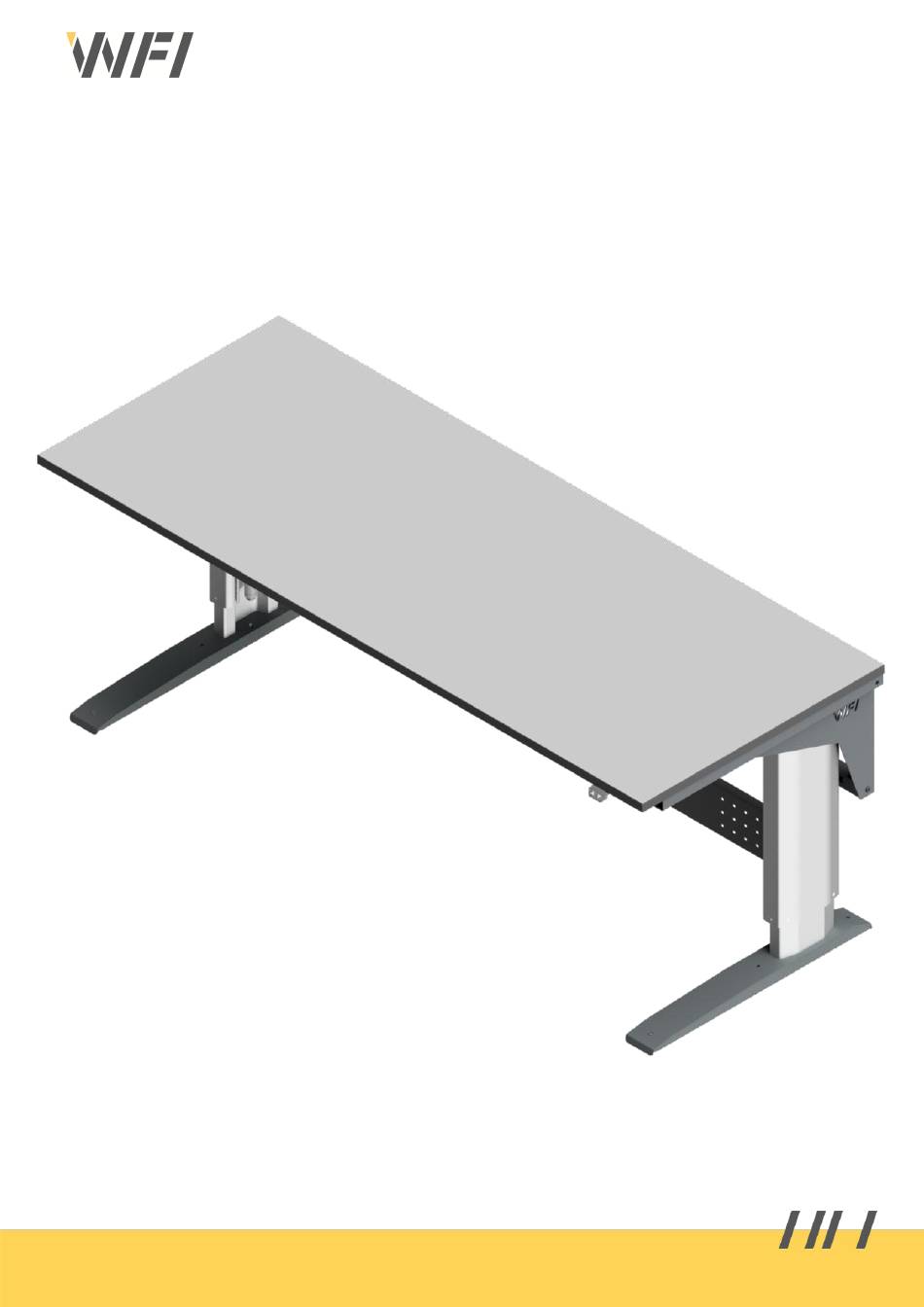

- Page 1 Mounting instructions Workbench W 400...
- Page 2 Mounting instructions Installationsanvisning • Bordet måste placeras minst 120 mm ifrån andra föremål t ex. intillstående bord eller utrustning samt väggmonterade hyllor etc. • Justera bordets skiva i våg med hjälp av stativets ställbara fötter • Kontrollera att elkablar är oskadda och att allt är monterat enligt monteringsanvisningen. •...
-
Page 3: Installation Instructions
Mounting instructions Installation instructions • Place the table at least 120 mm from other objects, eg, adjoining tables, equipment, wall mounted shelves, etc. • Make the top of the table level with the aid of the adjustable feet on the frame. •... - Page 4 Mounting instructions M8x16 M8x12 M8x20 M6x20 TRX 5x20 TRX 6x20 TFX 4x20 TRX 5x40...
- Page 5 Mounting instructions Small holes up M6x20 4 pcs. 2 on each side M8x16 8 pcs. 4 on each side Small holes up M8x20 2 pcs. 1 on each side Slide the rear frame with the screws in to the slots of the top frame.
- Page 6 Mounting instructions M8x12 4 pcs. 2 on each side M8x20 2 pcs. 1 on each side TRX 6x20 rear frame TRX 5x20 top frame...
- Page 7 Mounting instructions Align table top with top frame Flange of consoles should be outside the worktop Center the worktop between legs Push buttons Push button cable TFX 4x20 2 pcs. Motorcable 1 Motor cable 2 TRX 5x40 2 pcs.
- Page 8 Mounting instructions Insert power cable to the control unit Make sure the table is in level Adjust feets if necessary...
- Page 9 Mounting instructions WFI AB Lidängsvägen 5 SE-335 32 Gnosjö www.wfiab.se Description Art.Code Max Load WFI AB Lidängsvägen 5 335 32 Gnosjö, Sweden +46 (0) 370 37 13 00 www.wfi.se...
