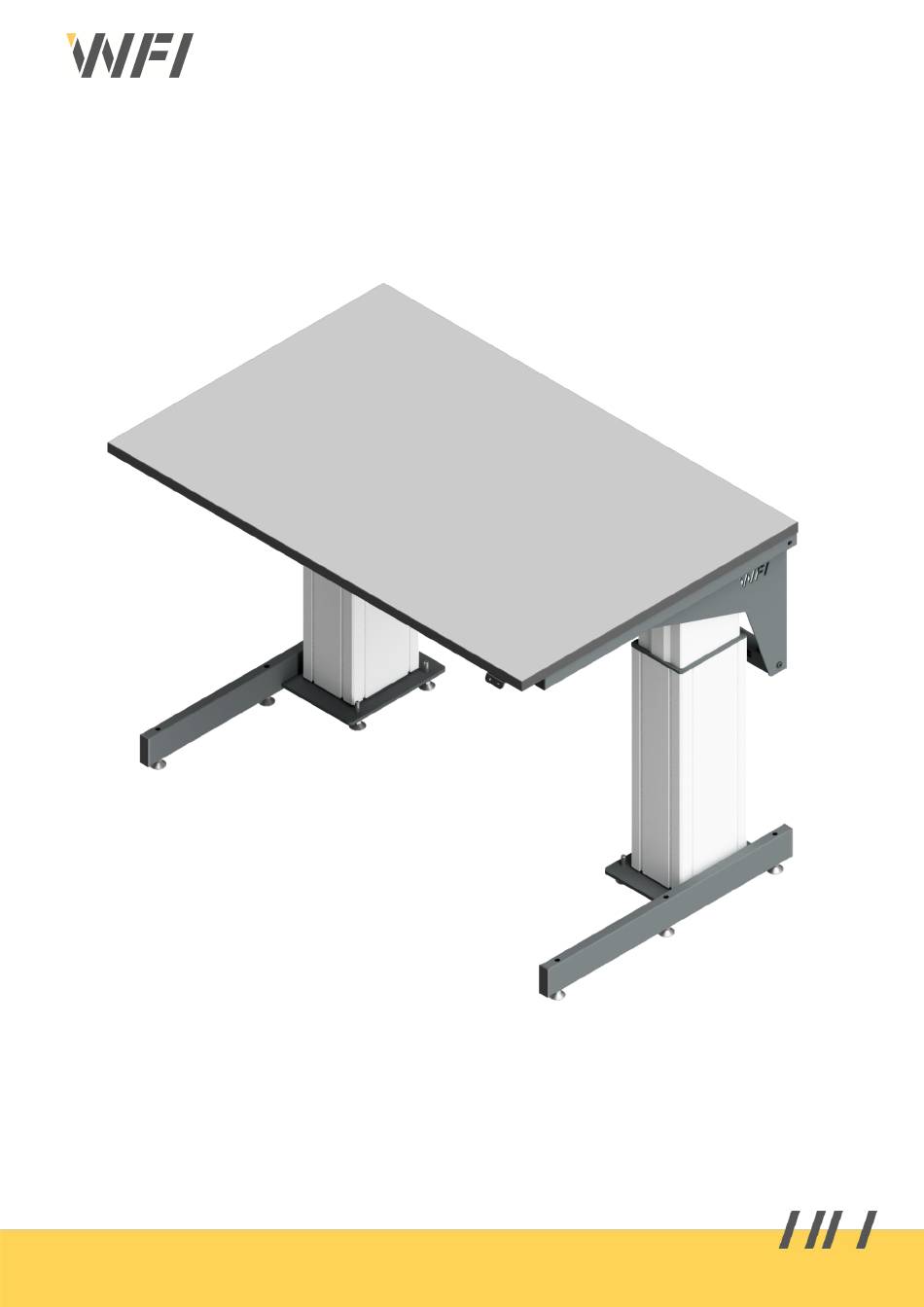

- Page 1 Mounting instructions Workbench W 600...
- Page 2 Mounting instructions TFX 4x20 TRX 6x20 TRX 5x20 M6x35 M8x20 M8x12 Washer M6 Plastic plug 35x35...
- Page 3 Mounting instructions Right Left Washer M6 M6x35 4 on each side 4 on each side Small holes on frame up Plastic plug 35x35 M6x35 4 on each side Washer M6 4 on each side...
- Page 4 Mounting instructions Small holes up Slide the rear frame with screws in to the slots of the top frame M8x20 1 on each side Right M8x12 2 on each side Left M8x20 1 on each side...
- Page 5 Mounting instructions TRX 5x20 Center tabletop between legs Align table top with top frame Flanges of consoles outside TRX 6x20 rear frame (3pcs) Control unit Plug in the motorcables and pushbutton Finally insert the power cable Push buttons TFX 4x20 (2x) Make sure the table is in level Adjust feets if necessary...
