Spares - MX270 Disassembly & re-assembly instructions
MX270
The following procedures are aimed to help with dismantling and service repairs.
Always disconnect the appliance from mains supply prior to removal of the covers and suitably protect the finish on the
casings.
Click on the pictures to open a larger version in a seperate window.

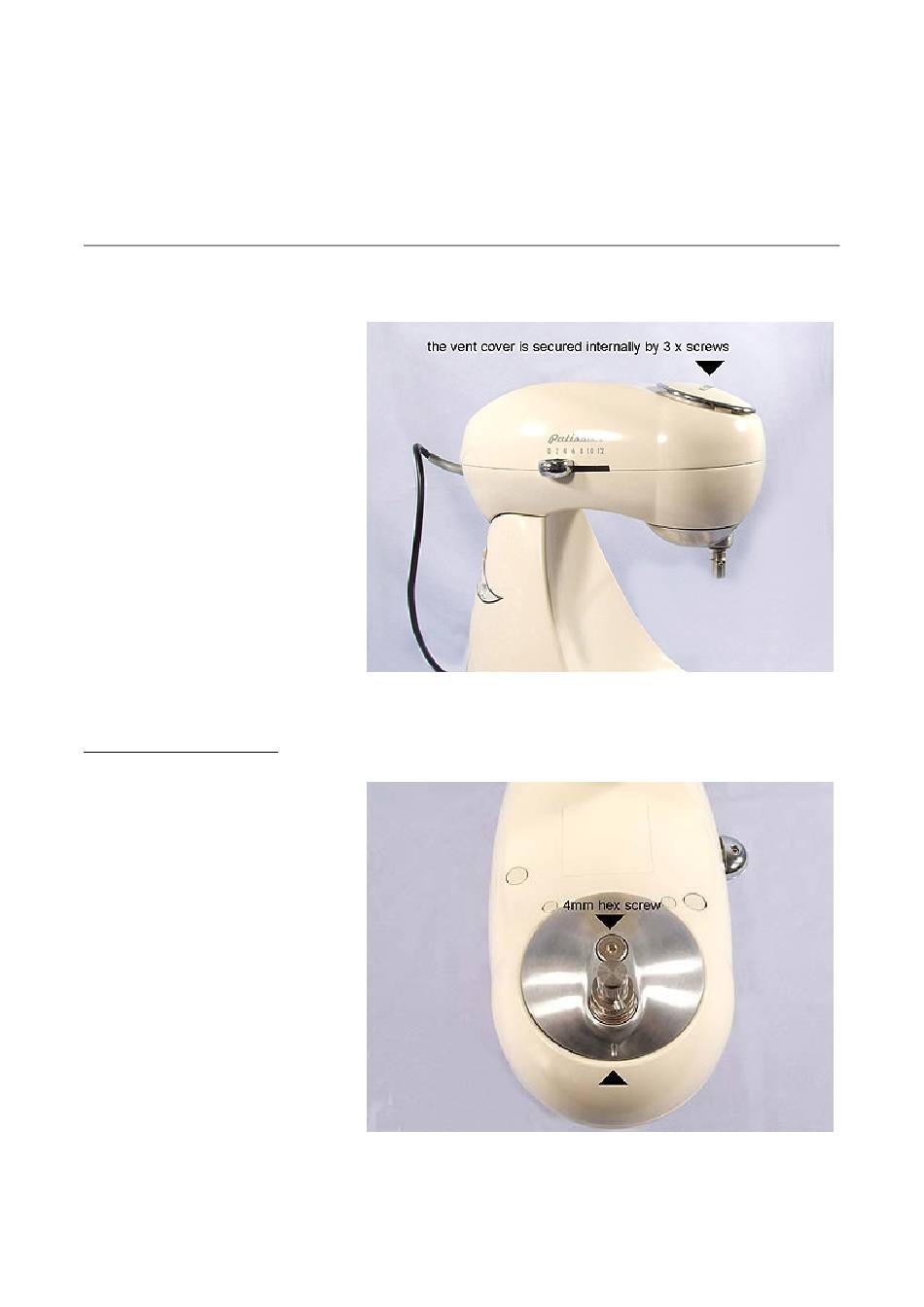

The vent cover is secured internally by
3 screws.
To remove the planet hub:
Align the hub as shown.
http://www.kenwoodservice.co.uk/product-files-kar/guide_MX270.htm
Page 1 of 8
30/04/2009
Advertisement
Related Manuals for Kenwood MX270
Summary of Contents for Kenwood MX270
- Page 1 Spares - MX270 Disassembly & re-assembly instructions Page 1 of 8 MX270 The following procedures are aimed to help with dismantling and service repairs. Always disconnect the appliance from mains supply prior to removal of the covers and suitably protect the finish on the casings.
- Page 2 Spares - MX270 Disassembly & re-assembly instructions Page 2 of 8 Remove the hex screw, and lift the hub straight off. Internal view of hub assembly. To access the power unit: *it will be necessary to remove the pedestal assembly to gain access to the power unit Turn machine upside down.
- Page 3 Spares - MX270 Disassembly & re-assembly instructions Page 3 of 8 Remove the 2 screws highlighted by the arrows. Lift off the pedestal assembly. http://www.kenwoodservice.co.uk/product-files-kar/guide_MX270.htm 30/04/2009...
- Page 4 Spares - MX270 Disassembly & re-assembly instructions Page 4 of 8 Remove the locating pin, then use a small flat screwdriver to dislocate the lugs of the headlift latch. Please note the correct position of the spring prior to removal. Then remove the 3 screws at the rear of the power unit.
- Page 5 Spares - MX270 Disassembly & re-assembly instructions Page 5 of 8 Remove the four screw caps and screws beneath. *it is not necessary to remove the hub at this stage Turn the power unit upright and lift off the top cover.
- Page 6 Spares - MX270 Disassembly & re-assembly instructions Page 6 of 8 Speed control PCB wiring. Please note the correct position of the 3 tie wraps. http://www.kenwoodservice.co.uk/product-files-kar/guide_MX270.htm 30/04/2009...
- Page 7 Spares - MX270 Disassembly & re-assembly instructions Page 7 of 8 Main PCB wiring. Speed control switch lever assembly. http://www.kenwoodservice.co.uk/product-files-kar/guide_MX270.htm 30/04/2009...
- Page 8 Spares - MX270 Disassembly & re-assembly instructions Page 8 of 8 Click here to return to the top of the page. Back. http://www.kenwoodservice.co.uk/product-files-kar/guide_MX270.htm 30/04/2009...
