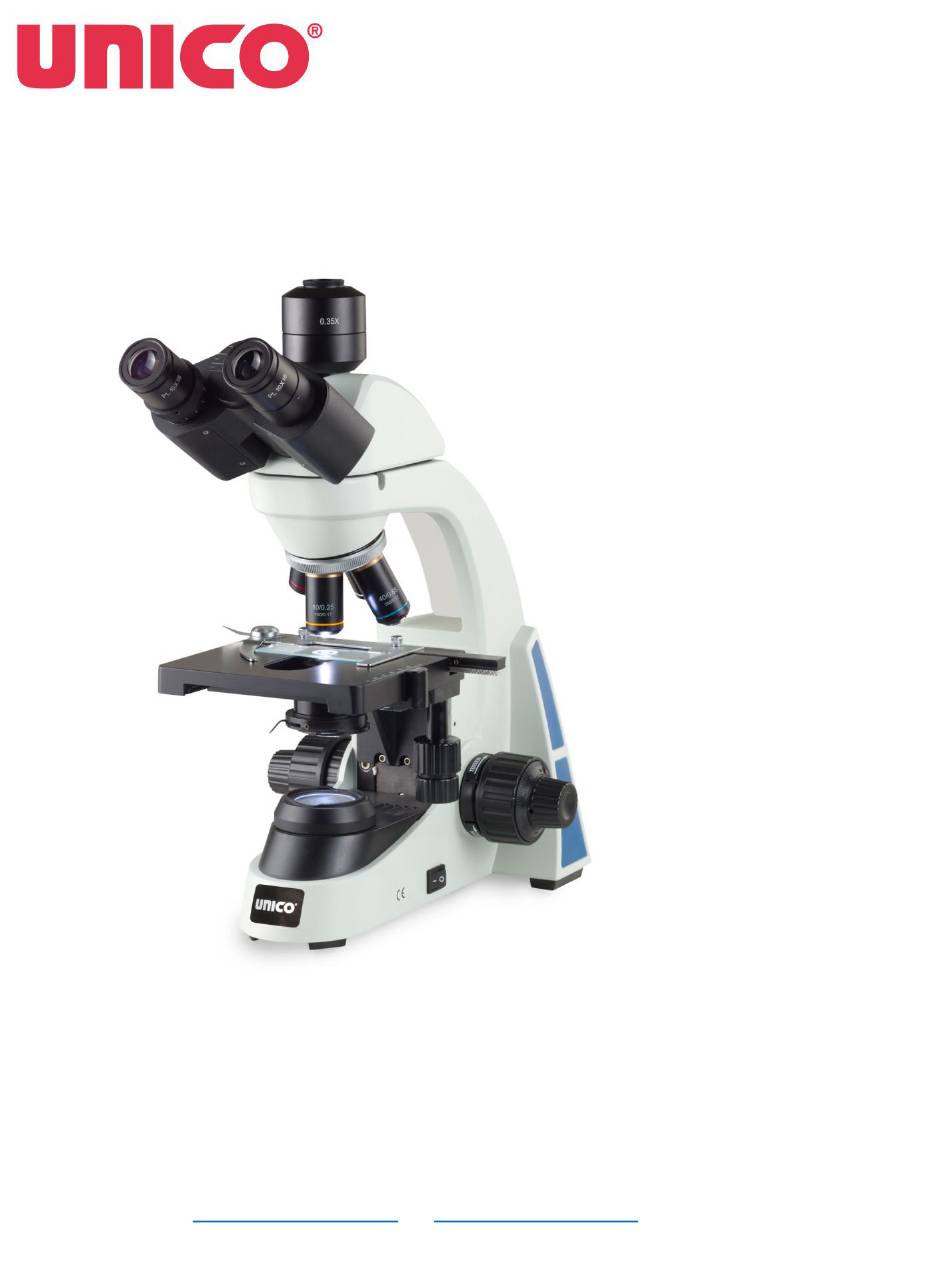

- Page 1 M280 MICROSCOPE OPERATION MANUAL M280 Microscope with optional C-mount camera adapter. United Products & Instruments, Inc. 182 Ridge Road, Suite E Dayton, NJ 08810 USA 732-274-1155 * info@unicosci.com * www.unicosci.com...
- Page 2 UNICO M280 Series Microscope. Thank you for choosing the UNICO M280 Microscope. This precisely built, durable microscope will give years of service to even the busiest office practice. It is offered with camera ready head standard. Our technical and customer support departments are ready to assist you with any questions or comments you may have.
- Page 3 1. Remove the stand of the microscope and place it on a sturdy, dust free surface. Set the base so that the UNICO label faces you. 2. The objectives are usually preinstalled for you. If not locate the 4-hole nosepiece and remove the plastic dust plugs.
-
Page 4: Diopter Adjustment
The safety stop setting screw is located on top of stage driving block (behind the mechanical stage. The stage upper limit is preset at UNICO . If adjustment is needed, turn the setting screw with a screwdriver to set the desired upper limit. -
Page 5: Maintenance
LED Illumination and Replacement M280 series microscopes use long lifetime LED illumination. There is no need to replace the LED. If the LED does not turn on, please check the power supply, the brightness control first. Should there be a need to replace the LED illumination system simply follow the steps below to replace the illumination base: 1.
