Summary of Contents for Unico G380 LED Series

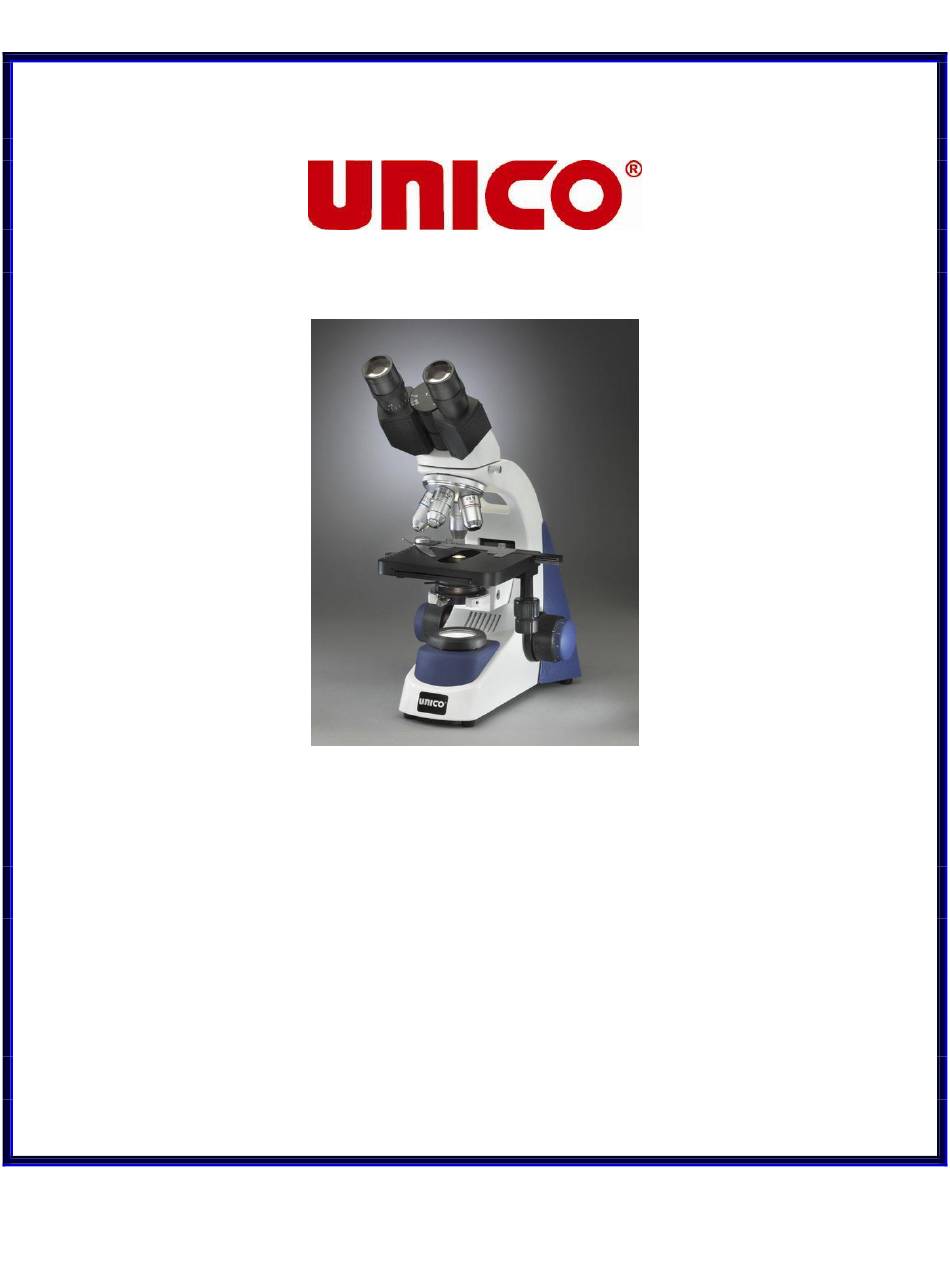

- Page 1 G380 LED Series COMPOUND MICROSCOPE OPERATION MANUAL United Products & Instruments, Inc. 182 Ridge Road, Suite E, Dayton, NJ 08810, USA Tel: 732-274-1155 Fax: 732-274-1151 www.unicosci.com...
- Page 2 4x 10x 40x 100x Hight Eye Point 10X Custom configurations available on request. Contact UNICO customer service for details and available options. G380 SERIES MICROSCOPE FEATURES G380 series microscopes were designed with the user in mind. Whether it is for use in a busy medical or veterinary practice, a research department, or for anyone needing the most versatile microscope, there is a G380 to meet your needs.
- Page 3 8.5 Rotate the adjustment (diopter) ring on the left ocular tube until you see a clear focused field. 9. Focus Tension Control. Focus tension has been pre-adjusted at UNICO . If needed, the focus tension can be adjusted at any time without tools.
-
Page 4: Fuse Replacement
A 250V/1.5 Amp fuse protects the circuit board from electrical overload. Replacement fuse must be the same size and amperage as original (order UNICO item#B6-9005). Turn the illuminator control wheel to “off” position. Unplug the power cord from AC outlet. - Page 5 Adjustment (Stage upper limit) Abbe Condenser Mechanical Stage & Iris Diaphragm Coaxial X-Y Movement Collecting Lens Coaxial Coarse and (Field Lens) Fine Focus Knobs Illumination base with intensity rheostat Focus Tension Control Ring UNICO G380 LED Series Compound Microscope...
