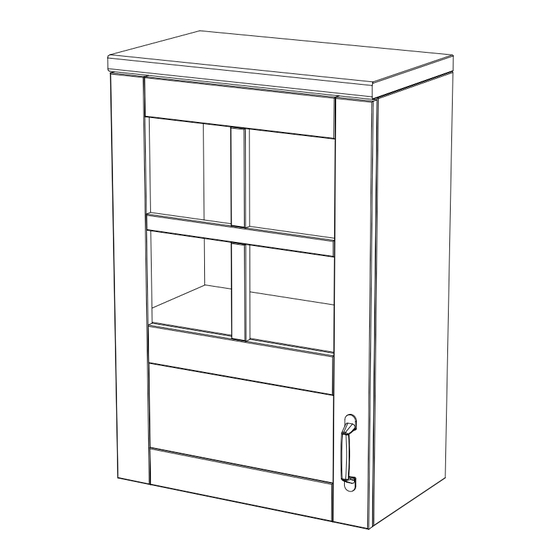

Art. Nr. 49684349, 76182406
SET Art. Nr. 11743501, 44981561
D
Montageanleitung
FR
Notice de montage
NL
Handleiding voor de montage
CZ
Mont žn
á
návod
HU
Szerelési útmutató
TR
Montaj talimatı
GB
Assembly instructions
IT
Istruzioni di montaggio
PL
Instrukcja montażu
SK
Návod na
mont ž
á
RO
Instrukcţiuni de montaj
RU
LKZ 75032
LKZ 42366

Advertisement

loading
Need help?

Need help?

Do you have a question about the 49684349 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Otto 49684349

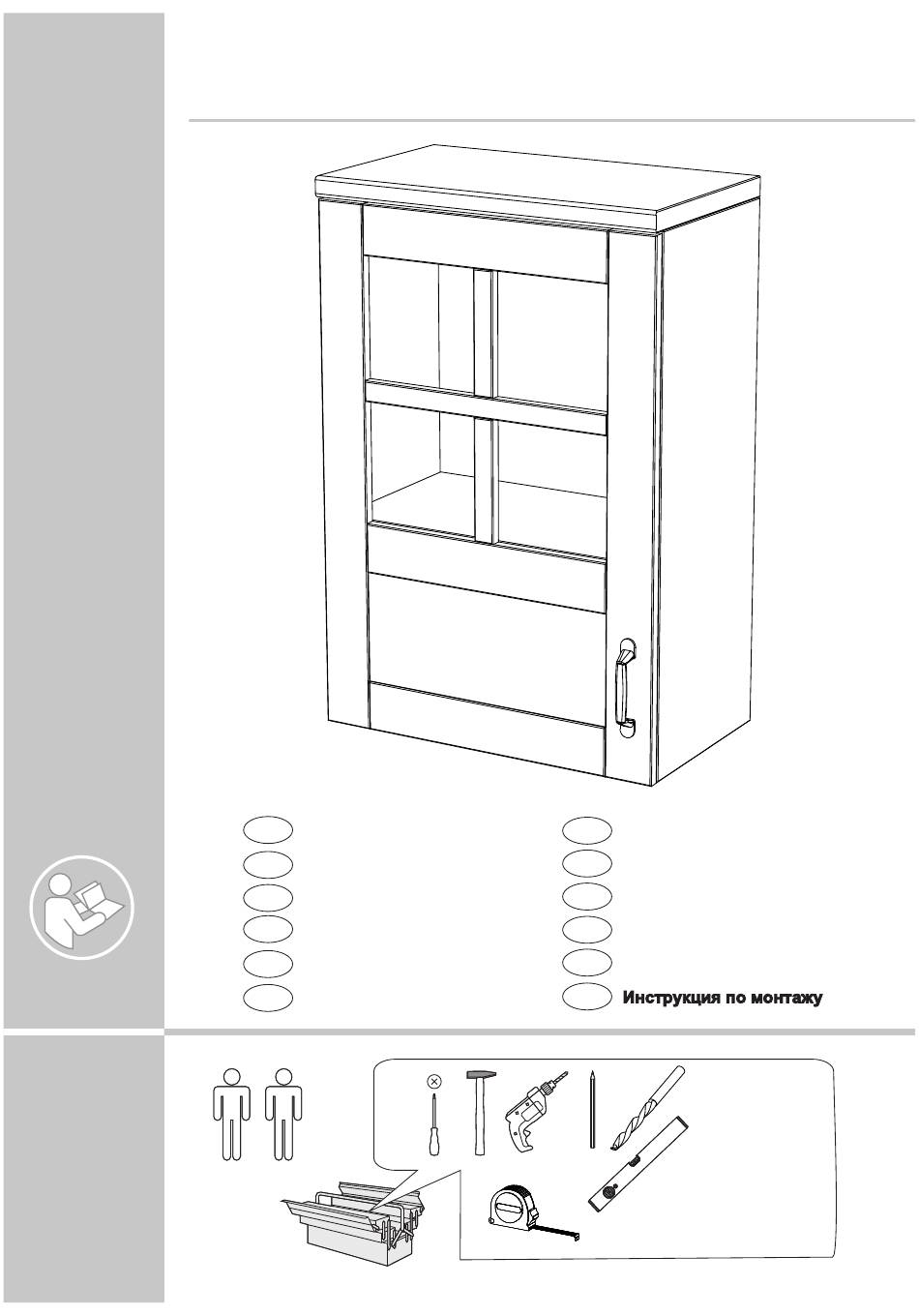

  • Page 1 Art. Nr. 49684349, 76182406 SET Art. Nr. 11743501, 44981561 Montageanleitung Assembly instructions Notice de montage Istruzioni di montaggio Handleiding voor de montage Instrukcja montażu Mont žn á návod Návod na mont ž á Szerelési útmutató Instrukcţiuni de montaj Montaj talimatı...
  • Page 2 Nazwa • Jm no • N zov • N v • é á é Denumire • sim • Название Ì • No • N • Номер • ° Č • Sz 49684349, 76182406 11743501, 44981561 Typ • Type • Tip • T pus • Tipo • Тип 53_010...
  • Page 3 100 mm Ø8x30 34 mm B2 x 8 Ø15x12 Ø17 C1 x 8 Ø4x15 Ø3.5x15 F2 x 8 M4x20 G2 x 4 Ø8x40 Ø5/30-40 J22 x 2 Ø35 U H=0 mm N1 x 25 B10 x 2 1.1 m 1.2 m We ask for your attention.
  • Page 4 Ø8x30 Ø3.5x15 H=0 mm 53_010...
  • Page 5 34 mm Ø15x12 D1 x 4 53_010...
  • Page 6 Ø15x12 D1 x 4 53_010...
  • Page 7 X = Y 90° Ø4x15 53_010...
  • Page 8 Das beigefügte Wandbefestigungsmaterial (Dübel und Schrauben) eignet sich nur für festes Mauer- werk (z.B. Beton- oder Ziegelwände). Für andere Wandaufbauten sind eventuell Spezialdübel und andere Schrauben notwendig. Ziehen Sie gegebenenfalls eine Fachkraft zurate. The enclosed wall mounting materials (dowels and screws) are only suitable for solid masonry (e. g. Ø8x40 concrete or brick walls).
  • Page 9 53_010...
  • Page 10 Ø35 U Ø3.5x15 90° M4x20 53_010...
  • Page 11 Ø17 20 kg Q1 x 4 Achtung • Attention • Attenzione Opgelet • Uwaga • Pozor • Figyelem Atenţie • Dikkat • Внимание Stellen Sie sicher, dass die Möbel eben sind, bevor Sie die Tür einstellen. Wenn die Möbel nicht geebnet sind, stehen die Türen und Schubladen schräg.
  • Page 12 Ø5/30-40 53_010...
  • Page 13 Möbel aus Naturholz und Plattenwerkstoffen Wspomniane zamiany zachodzące w wyglądzie produktów wykonanych z surowców naturalnych są zupełnie normalne. Niniejsza instrukcja zawiera cenne wskazówki Meble z drewna naturalnego oraz płyt drewnopochodnych dotyczące pielęgnacji mebli, aby jak najdłużej mogli Państwo cieszyć się z ich Meubelen van natuurhout en plaatmateriaal nienagannego wyglądu.
  • Page 14 Sostanzialmente vale: Onderhoudsinstructies voor meubelen van plaatmateriaal • Non poggiare oggetti roventi sui mobili. Gebruik voor de reiniging van uw meubel van plaatmateriaal het best een zachte, • Non poggiare candele a diretto contatto dei mobili. niet pluizige doek of een leren doek. Veeg de oppervlakten ietwat vochtig af. •...
  • Page 15 • Там, где раньше были сучья, появляются светлые места из-за En règle générale : Veuillez n‘utiliser en aucun cas les détergents suivants : естественного выхода смолы. Их можно отполировать с помощью сухой • Chiffons à microfibres ou gomme à saleté. Ils contiennent souvent de fine ткани...
  • Page 16 • cârpe din microfibre sau bureţi de curăţat. Acestea conţin adesea mici • Svetlé miesta na hrčiach vznikajú prirodzeným vystupovaním živice a dajú sa particule abrazive care pot zgâria suprafeţele; odstrániť so suchou utierkou bez vlákien. • substanţe chimice corosive, precum şi solvenţi sau substanţe de curăţat •...
