FISHER PRICE 76950
Owner's Manual
Shop genuine replacement parts for FISHER PRICE
76950
Find Your FISHER PRICE Ride On Parts - Select From 999 Models
-------- Manual continues below --------

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER WHEELS Rock & Roll and is the answer not in the manual?

Questions and answers

Related Manuals for Fisher-Price POWER WHEELS Rock & Roll

Summary of Contents for Fisher-Price POWER WHEELS Rock & Roll

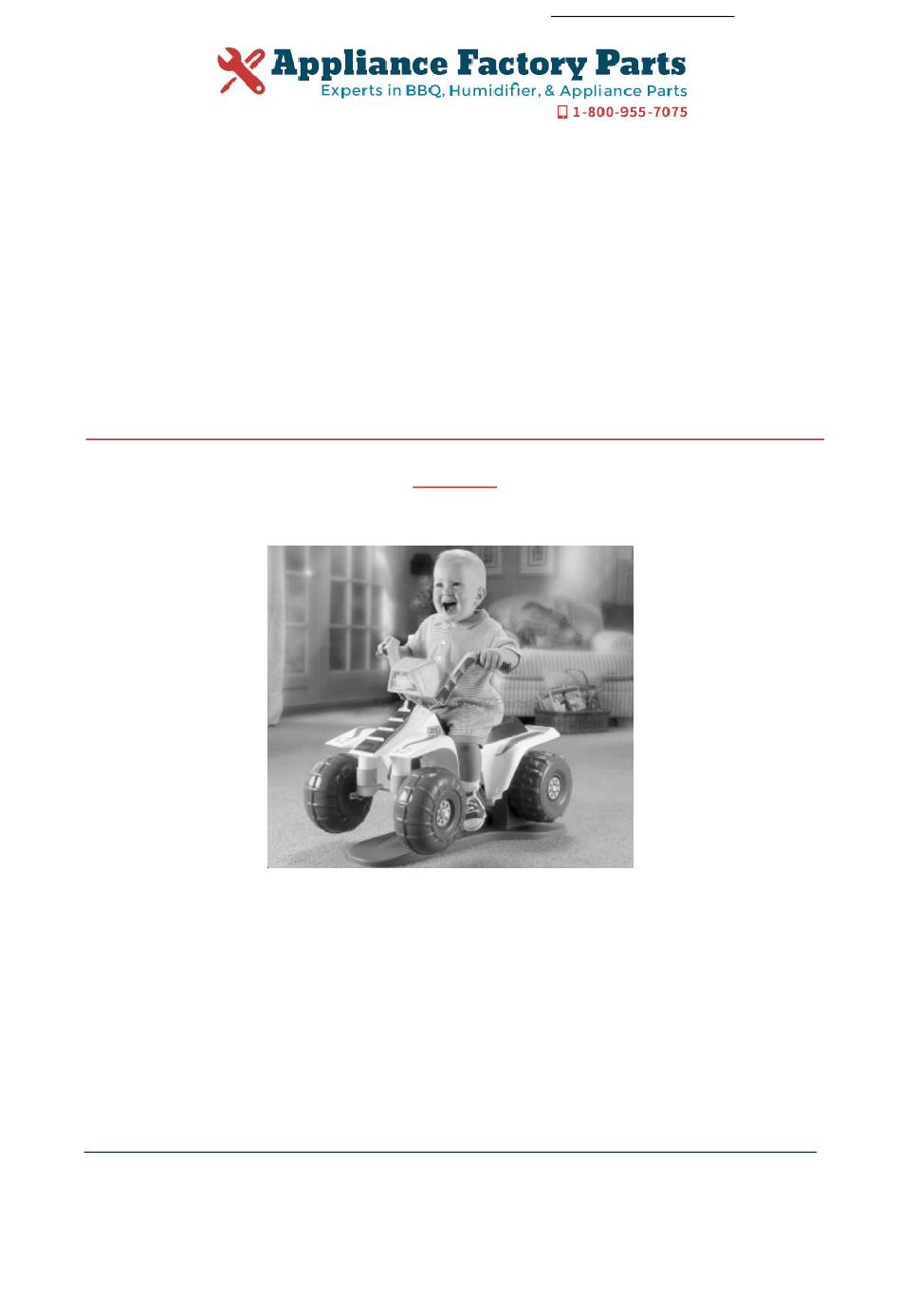

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. FISHER PRICE 76950 Owner's Manual Shop genuine replacement parts for FISHER PRICE 76950 Find Your FISHER PRICE Ride On Parts - Select From 999 Models -------- Manual continues below --------...
  • Page 2 ® Product features may vary from the picture above. Owner’s Manual with Assembly Instructions Please read this manual and save it with your original sales receipt. For Model 76950 Tools needed for assembly: Phillips and Slotted Screwdrivers, Hammer, Pliers and Safety Scissors. Use only with a Power Wheels 6 Volt (4.0 Amp/hr.) Battery, Power Wheels 25 Amp Fuse...

  • Page 3: Table Of Contents

    Table of Contents Important Information ..............2 Warnings .

  • Page 4: Warnings

    Warnings WARNING • Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.

  • Page 5: Parts

    Parts • If you experience a problem with this product or are missing a part, please call us at 1-800-348-0751 rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 6 Parts Microphone Handgrip - 2 Footrest Support Footrest - 2 Key Assembly Front Axle - 2 Collar - 2 Steering Linkage Handlebar Wire Harness T-Slider Cap Nut - 7* Square Bushing - 3 Steering Column Battery Retainer 25 Amp Fuse - 2* Knob - 2 Round Bushing - 2...

  • Page 7: Parts Diagram

    Parts Diagram 29 21 Vehicle Body (with Base) 15. Grille 26. Washer - 2 Steering Column 16. #8 x " Screw - 2 27. Square Bushing - 3 Handlebar 17. #10 x 1 " Bolt - 2 28. Round Bushing - 2 Handgrip - 2 18.

  • Page 8: Battery Charging

    Battery Charging WARNING • The battery must be handled by adults only. The battery is heavy and contains sulfuric acid (electrolyte). Dropping the battery could result in serious injury. • Never allow children to charge the battery. Battery charging must be done by adults only. A child could be injured by the electricity involved in charging the battery.
  • Page 9 Battery Charging • Your new battery must be charged for at least 18 hours before you use it in your vehicle for the first time. • We recommend that you start charging your battery before beginning assembly of your new vehicle. •...

  • Page 10: Assembly

    Assembly Do Not Omit Any Steps U-Clip #1 Cap Nut Slot Collar Base Platform #1 Steering Linkage Base Front Axle Short Leg • Using safety scissors, separate the U-clips from the plastic connector. Dispose of the plastic connector. • The U-clips and base platforms are marked with a •...
  • Page 11 Assembly Wheel Bushing Round Bushing • Fit a wheel bushing into the rectangular opening in each front wheel. • Slide a round bushing onto the front axle and press it Wheel into the center of the front wheel. Bushing Front Axle •...
  • Page 12 Assembly Handlebar Press Here Handgrip Handgrip • Fit a handgrip onto each end of the handlebar. Helpful Hint: If the handgrips are difficult to slide onto the handlebar, moisten the handgrips with warm water before fitting them onto the handlebar. Handlebar Wire Harness •...
  • Page 13 Assembly Headlight Steering Column Handlebar Wire Harness Vehicle Square Body Opening Guides Handlebar • Insert the curved end of the steering column through the square opening in the vehicle body. • Turn the handlebar assembly upside down. • Rotate the square bushing turn to slide it over the •...
  • Page 14 Assembly Handlebar Wire Handlebar Harness Cap Nut Connector Main Wire Harness Handlebar Connector Wire Harness Steering Column Hole Square Bushing Opening • Insert the wire connector on the main wire harness through the large opening in the center of the vehicle body.
  • Page 15 Assembly T-Slider Grooves Footrest Footrest Support Support Footrest Please Note: If you have not removed the protective foam • Insert the footrest support bar through the footrest pocket from the battery compartment, please remove it support at the bottom of the vehicle body. Make sure the and set it aside for later use.

  • Page 16: Label Decoration

    Label Decoration Proper label application will help to keep the labels looking their best! Temporary • Please remove and discard the temporary labels Label adhered to the sides of the vehicle. • Wash your hands before applying the labels. • Make sure the areas where the labels will be applied are clean and dry.

  • Page 17: Battery Installation

    Battery Installation Important Note: Use only a Power Wheels ® 6 volt (4 Amp/hr.) battery with a Power Wheels 25 amp fuse ® installed. Use of any other battery or fuse will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels ®...
  • Page 18 Battery Installation Seat Battery Connector Motor Harness Connector • Plug the battery connector into the motor harness Lock connector. Fastener Note: If the battery connector will not plug into the motor harness connector, turn it over and try again! Do not force the battery connector into the motor harness connector.
  • Page 19 Battery Installation Seat Lock Fastener Push Here Lock Fastener • To recharge or change the battery, unlock the vehicle Lock Fastener seat: Opening - If your vehicle seat is equipped with a lock fastener, use a slotted screwdriver to rotate the lock fastener turn to the unlocked position ( - If your vehicle seat requires use of the #10 x...

  • Page 20: Battery Care And Disposal

    Battery Care Battery Care and Disposal and Disposal Care Disposal If a battery leak develops, avoid contact with the leaking • Your Power Wheels ® battery is a sealed lead-acid acid and place the damaged battery in a plastic bag. See battery.
  • Page 21 Rules for Safe Driving Teach Safety Rules to Children 6. Always wear shoes or sneakers when operating this vehicle. While children can quickly develop the skill necessary to 7. Never put anything near any moving parts. Rotating drive this vehicle, it is important to remember that their parts such as motors, gear boxes and wheels can snag judgement skills are still very immature.

  • Page 22: K Attaching And Removing Your Vehicle From The Base

    Attaching Your Vehicle to the Base Removing Your Vehicle from the Base Attaching Your Vehicle to the Base Handlebar Button Push Here Rear Wheels Selector Lever U-Clip Pull Wheel Out Base Inset Down • Place the base on the floor. •...
  • Page 23 Attaching Your Vehicle to the Base Removing Your Vehicle from the Base the cam drivers pop into the U-clips. There should be no gap between the cam drivers and the U-clips. • To make sure the vehicle is properly secured to the base, lift the vehicle.

  • Page 24: How To Operate Your Vehicle

    How to Operate Your Vehicle Your Rock & Roll can be easily converted for use in any one of three ways for rocking and rolling fun: as a battery pow- ered rocking kiddie ride, as a freewheeling foot-to-floor vehicle, or as a battery powered motorized vehicle. Exciting Kiddie Ride Action Selecting Freewheeling Fun Push Here...

  • Page 25: Caring For Your Vehicle

    How to Operate Your Vehicle How to Operate Your Vehicle Battery Powered Motorized Use Push Here Handlebar Button Push Here 1 mph Selector Lever • Make sure the footrests are in the lowered position • Seat your child on the vehicle with both hands on the handgrips and both feet on the footrests.

  • Page 26: Problems And Solutions Guide

    Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Affairs, toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels authorized service center.
  • Page 27 Problems and Solutions Guide Problem Possible Cause Solution Short run time (Less than Undercharged battery Charge the battery. A new battery should have been 1 - 3 hours per charge) charged for at least 18 hours before using the vehicle for the first time.
  • Page 28 Problems and Solutions Guide Problem Possible Cause Solution Sometimes the vehicle doesn’t Loose wire or connector Check all wires around the motors and all connectors to run, but other times it does make sure they are tight. Motor or electrical switch damage Contact your local Power Wheels ®...

  • Page 29: Statement Of Limited Warranty

    Statement of Limited Warranty 90-day limited warranty for the Power Power Wheels ® , whether under this warranty or implied by law or any indirect or consequential damages for breach of Wheels ® Ride-On Toy Vehicle warranty. Some states do not allow the exclusion or limita- A 6-month battery warranty applying only to tion so this limitation may not apply to you.
  • Page 30 Authorized Service Centers VAN NUYS - California Electric Service Center, 14753 Dr., 34606, (352) 686-4743 Street, 46202, (317) 924-1386 Oxnard Blvd., 91411, (818) 997-8855 ST. PETERSBURG - Keystone Electric, 4604 Central INDIANAPOLIS - Sullivan Hardware Do-It Center, WEST LOS ANGELES - California Electric Service Center, Avenue, 33711, (813) 321-1124 7021 N.
  • Page 31 Authorized Service Centers (800) 225-5009 300 Russell Street, 39759, (601) 323-3554 6181 Jericho Turnpike, 11725, (516) 499-3355 SALISBURY - Cycle and Sports Outlet, ELMIRA - Capabilities, Inc., 1149 Sullivan Street, 14901, MISSOURI 2505 N. Salisbury Blvd., 21801, (410) 860-0400 (607) 734-2006 INDEPENDENCE - Mar-Beck Appliance Service Co., TANEYTOWN - MacHenry Services, 68 Frederick Street, GREAT NECK - Turnpike Appliance Service Center, 45...
  • Page 32 Authorized Service Centers NEW BOSTON - True Value Toy Town, Rt. 52 & 139, 45662, Taylor Street, 29202, (803) 254-8414 84058, (801) 225-8012, (800) 339-9297 (614) 456-5704 DARLINGTON - Hobbies and More, 1570 South Main SALT LAKE CITY - Appliance Service Center, Inc., 210 STRYKER - Short’s Hardware, 115 N.
  • Page 33 Authorized Service Center. For the location nearest you, refer to the Authorized Service Center list in this manual. ©1997 Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052- All Rights Reserved 76950 76950-0920 Printed in the U.S.A.
