Lem Elettronica DSA25 Quick Start Manual

DSA25
AUTO Programming with DVB-T/T2 Tuner
Smart-Phone contact-less programming
RED Compliant
DIN rail or wall mounting
High efficiency built-in power supply

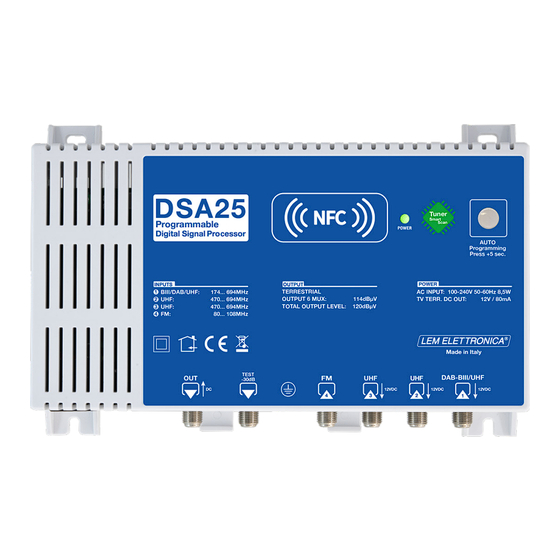

Multiband amplifier with 32 programmable digital filters for
terrestrial multi dwelling installations. The amplifier can be
programmed using a smartphone application LEM-NFC
available either for Android and iOS. The DSP25-NCF can
be also automatically programmed just pressing a button.
Thanks to the built-in DVB-T/T2 tuner the amplifier detect the
VHF and UHF inputs channels and performs the automatic
programming of the filters.
MODEL
NUMBER OF INPUTS
INPUTS FREQUENCY RANGE
INPUTS LTE PROTECTION FILTER
SINGLE CHANNEL FILTERS
INPUT LEVEL RANGE
FM INPUT AMPLIFIER
BIII/DAB INPUT PRE-AMPLIFIER
UHF INPUT PRE-AMPLIFIER
BIII/DAB - UHF INPUTS A.C.G. RANGE
DIGITAL FILTERS SELECTIVITY
VHF GAIN
UHF GAIN
OUTPUT LEVEL RANGE
BIII/DAB ADJUSTABLE LEVEL
UHF ADJUSTABLE SLOPE
MAXIMUM TOTAL OUTPUT LEVEL
MAX OUTPUT LEVEL WITH 6 MUX
RETURN LOSS IN/OUT
TEST OUTPUT
REMOTE POWER SUPPLY BIII/DAB-UHF
POWER INPUT
OPERATING TEMPERATURE
DIMENSIONS
WARRANTY
4
MHz FM (87... 108) - BIII (170... 230) / DAB (170... 240) - UHF (470... 694)
dBµV FM 35... 90 - BIII/DAB 50... 110 - UHF... 50... 100
dB
dB
dB
dB
dB
dB
dBµV
dB
dB
dBμV
dBμV
dB
°C
mm
Satellite and TV reception equipment
YEARS
DSA25
1 FM; 1 BIII/DAB/UHF; 2 UHF
LTE700
32
+16/0 (ON/OFF)
+16/0 (ON/OFF)
+16/0 (ON/OFF)
40 dB
35 @1MHz
60
60
93... 114
0... -10
0... -5
120 (IM3 DIN 45004B - 60 dBc)
114
>12
1 (-30 dB)
12VDC / 80 mA
100-240VAC 50-60HZ 8,5W MAX
-5... 50
227 x 107 x 48
GET IT ON GET IT ON
