Lem Elettronica DSP15-5G Quick Start Manual

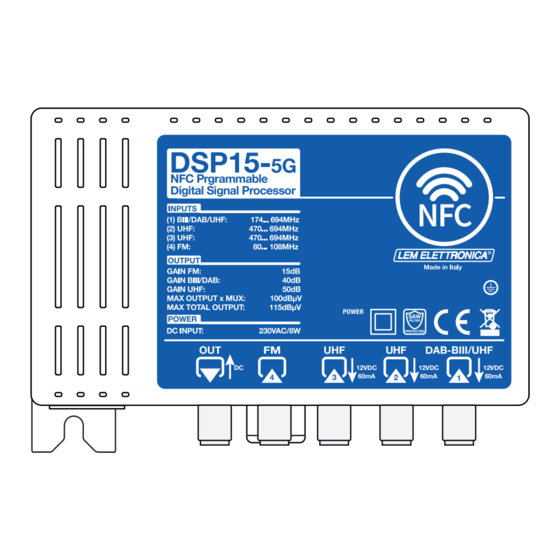

DSP15-5G
Programmable TV terrestrial multiband amplifier
Installation and start-up
1 Connect an earth wire to grounding clamp
2 Connect the TV aerial(s) to the amplifier's inputs
3 Connect the MATV output and terminate the unused inputs with 75Ω loads
4 Power up the amplifier connecting the power cord to mains plug
Antenna remote power error
If LED POWER remains fixed red there is an antenna input short circuit or over current. Please check the input(s) with the
remote power supply activated and remove the issue.
DSP15-
5G
NFC Prgrammable
Digital Signal Processor
POWER
OUT FM UHF UHF
DC 12VDC
4 3 60mA
230VAC
50/60Hz
MATV
NFC antenna
1
2 BIII / DAB / UHF(E21... E48) aerial input
UHF (E21... E48) aerial input
1 3
UHF (E21... E48) aerial input
1 4
Multi-function LED
1 5
6 Antenna input (4) FM (88... 108MHz)
7 MATV output / remote power 12...15VDC
230VAC 50/60Hz Mains input
8
SAFETY INSTRUCTIONS
1. Do not expose the amplifier to extreme temperatures.
2. Place the amplifier in a dry and well-aired location.
3. Install the unit on a vertical wall, or in a waterproof cabinet with a minimum IP55 rating, and fix it safely.
4. Connect the power adapter cord to a detachable power supply socket.
DESCRIPTION OF SYMBOLS AND ELECTRICAL SAFETY
The equipment complies with the CE requirements
Equipment grounding terminal
BIII/UHF
UHF
SAW
FILTER
PROTECTED
DAB-BIII/UHF
12VDC 12VDC
2 60mA 1 60mA
DSP15-
NFC Prgrammable
Digital Signal Processor
UHF
FM
230VAC
Inseritore di tensione
coassiale INS02
MATV
DSP15-
NFC Prgrammable
Digital Signal Processor
OUT
8 7
The equipment is compliant with RoHS 2011/65EU
2011/65 EU
Dispose according to local authorities recycling processes
BIII/UHF
5G
POWER
SAW
FILTER
PROTECTED
OUT FM UHF UHF DAB-BIII/UHF
DC 12VDC 12VDC 12VDC
60mA 60mA 60mA
4 3 2 1
Alimentatore Switching
12... 15VDC ≥15W
1
5G
POWER
SAW
FILTER
PROTECTED
FM UHF UHF DAB-BIII/UHF
DC 12VDC 12VDC 12VDC
4 3 50mA 2 50mA 50mA
1
6 4 3 2
5
UHF
UHF
FM
LEM
