Lem Elettronica DSA15 Datasheet

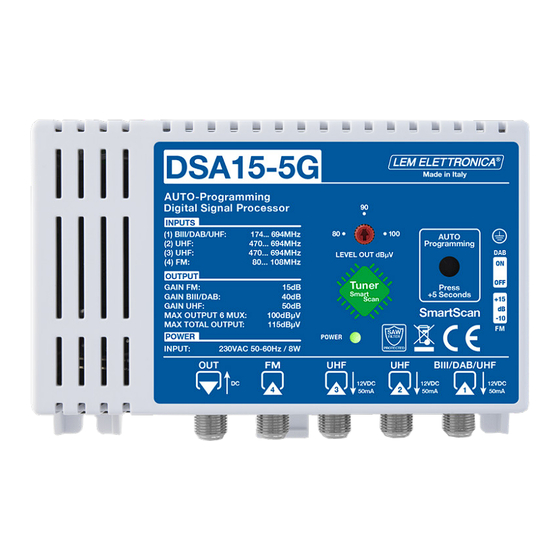

DSA15
AUTO-Programming Multiband Amplifier
Built-in DVB-T/T2 tuner for DTT Auto-Programming
High Selectivity channel filters with ACG
Lte700 5G SAW filter technology protection
Autosensing antenna input powering
ON / OFF Switch DAB enabler
Integrated high-efficiency power supply
DIN rail and wall mounting
Compact and versatile MATV amplifier for the amplification of
terrestrial signals coming from several antennas.
Active device with built-in tuner to detect DVB-T/T2 channels for
UHF+VHF inputs, the unit performs an automatic programming
of the filters, as well as the appropriate level equalization. The
manual adjuster allows the installer to adapt the output level to the
characteristics of the distribution network.
The amplifier integrates a high-efficiency low-power consumption
switch-mode power supply. Can be also remotely powered over
the output coaxial cable.
MODEL
NUMBER OF INPUTS
INPUTS FREQUENCY RANGE
LTE PROTECTION
SINGLE CHANNEL FILTERS
NUMBER OF CHANNEL PER FILTERS
MAXIMUM INPUT LEVEL
AUTOMATIC GAIN CONTROL RANGE
DIGITAL FILTERS SELECTIVITY
FM GAIN
BIII/DAB GAIN
UHF GAIN
OUTPUT LEVEL RANGE
RETURN LOSS IN/OUT
REMOTE POWER SUPPLY
INPUT VOLTAGE
MAXIMUM CONSUMPTION
OPERATING TEMPERATURE
DIMENSIONS
WARRANTY
1xFM / 1xBIII/DAB/UHF / 2xUHF
MHz BIII (170... 230) / DAB (170... 240)
dBµV FM 90 - BIII/DAB 100 - UHF 100
dB
dB
dB
dB
dB
dBµV
dB
V
W
°C
mm
YEARS
DSA15
FM (88... 108)
UHF (470... 694)
LTE 700
Up to 32
1
40 dB
35 @1MHz
-10/+15 (selectable)
40
50
80... 100 (adjustable)
>10
12V / 60mA
100... 240VAC 50/60Hz
8
-15... 40
135 x 91 x 45
RED
COMPLIANT
