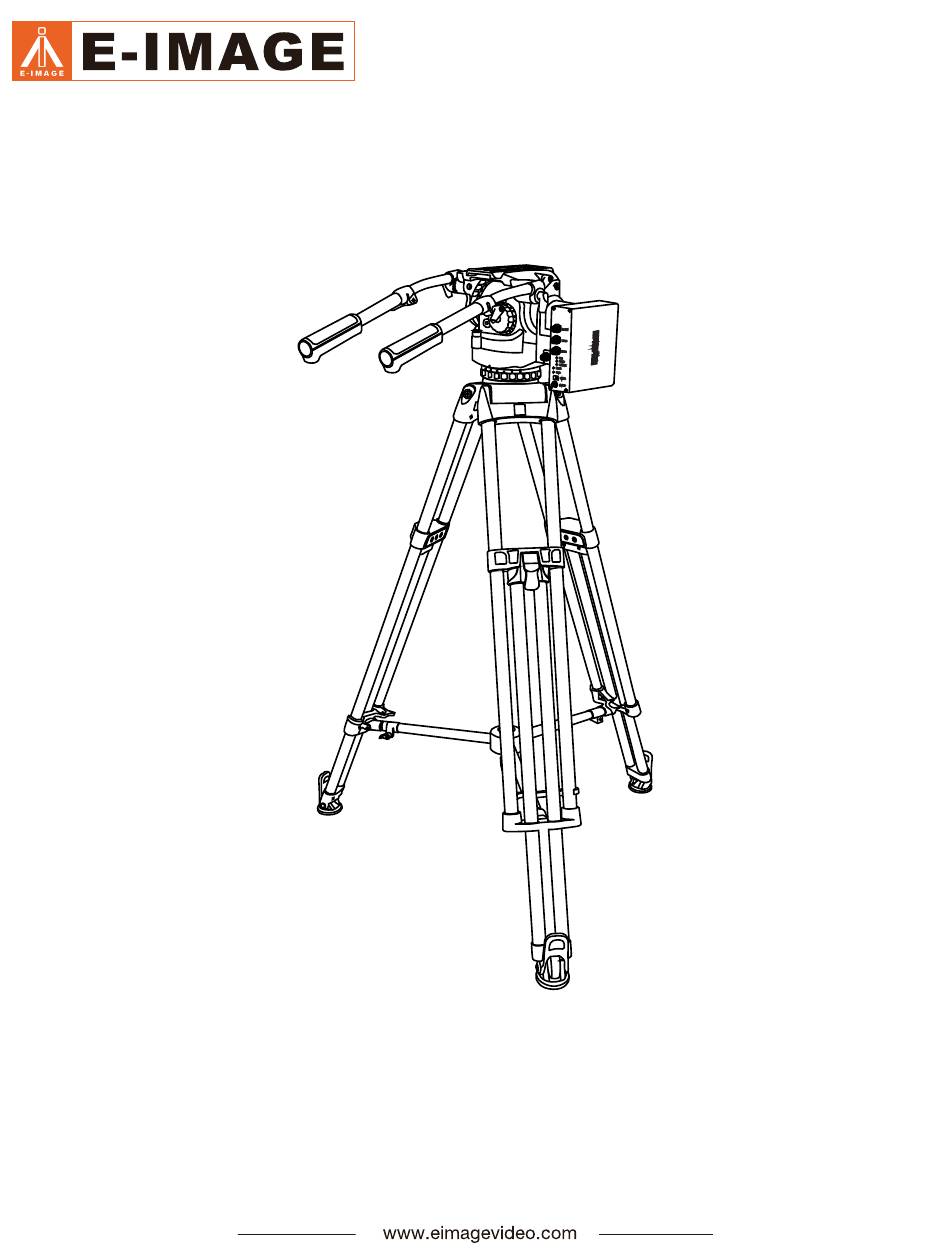

- Page 1 EG25XR-PRO - Quick Start Guide Virtual Tracking System with Tripod...
- Page 2 Instructions to Setup and Connect the Data Box 1. Mounting the Data Box to the Tripod Head • Attach the data box to the tripod head using the V-mount adapter. Slide the data box into the adapter until you hear a click, indicating it is securely in place. •...
- Page 3 How to Plug in a Sync Generator to the EG25XR Data Box Connecting a sync generator to a the EG25XR typically involves synchronizing the timing signals to ensure proper operation between the devices. Follow these steps: 1. Check Compatibility • Confirm connector types: Ensure both devices use compatible ports, such as BNC connectors for video sync or specialized cables for other sync signals.
- Page 4 Instructions to Set a Static IPv4 Address in Windows Follow these steps to set your Windows computer's IPv4 address to 192.168.1.100 with a subnet mask of 255.255.255.0 and a default gateway of 192.168.1.1: 1. Open the Network Connections Window: • Press Win + R to open the Run dialog box.
- Page 5 How to Use CMD to Ping an IP Address on Windows The ping command is a simple way to test connectivity to another device or network address using the Command Prompt (CMD). Here’s how you can do it to test the connection with the EG25XR data box: 1.
- Page 6 Professional Instructions for Verifying and Testing Free-D Data Ensure the data box is operational and transmitting data correctly. Use the TCP/UDP Net Assistant • Download the "TCP/UDP Net Assistant" software from the EG25XR Product Page. • Launch the program and configure the following settings: Protocol: Set to "UDP".
