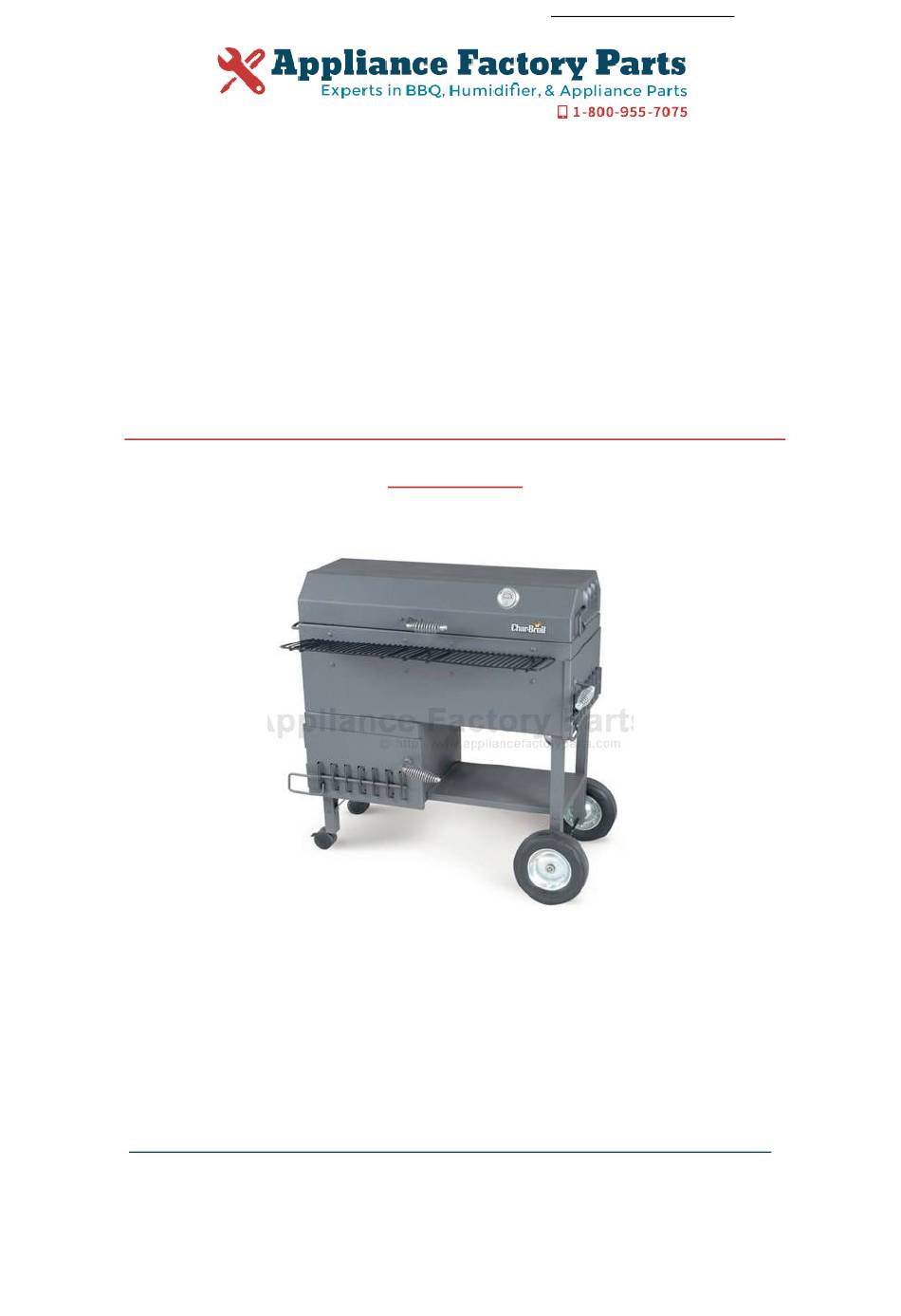

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Charbroil 06201297 Owner's Manual Shop genuine replacement parts for Charbroil 06201297 Find Your Charbroil Grill Parts - Select From 3592 Models -------- Manual continues below --------...
- Page 2 06201297 04201101 El Dorado El Dorado Smoker Smoker For Outdoor Use Only CAUTION WARNING Do not use this unit on or near combustible surfaces or THIS UNIT IS HEAVY! structures such as wood decks, dry leaves or grass, vinyl DO NOT assemble without a helper.
-
Page 3: Hardware List
STOP! Missing a part? Call Our Help Line No need to go back to the store! The store where you made your purchase does not stock parts for this item. If you need parts, whether they are missing or damaged, call the Customer Service toll free Help Line. -
Page 4: Parts List
PARTS LIST 06201297 • 3... - Page 5 Lay Smoker Chamber on ground with Hinge side down. Attach Firebox to Smoker Chamber using four 3/8-16 x 3/4” bolts, eight 3/8” lock washer (one at bolt head, another at nut end), and four 3/8” Nut. 3/8” 3/8” Lock Washer 3/8-16 x 3/4”...
- Page 6 Place Bottom Shelf between Firebox and Long Leg. Secure with two 1/4-20 x 2” screws and 1/4” keps nuts through leg and two 1/4-20 x 1/2” screws and 1/4 keps nuts through Firebox. Attach two Leg Gussets to Short Leg and Firebox using one 1/4-20 x 2” bolts and 1/4” keps nut through leg, and one 1/4-20 x 1/2”...
- Page 7 Stand smoker upright on its wheels. Attach eight Grate Racks inside front and rear panels of Smoker Chamber using two 1/4-20 x 1/2”screws and 1/4” keps nuts for each rack. 1/4” 1/4-20 x 1/2” Screw Grate Rack Lower Drip Pan into Smoker Chamber with feet towards Firebox end. Place Fire Grate onto Ash Pan and place into Forebox.
- Page 8 Assemble both Smoke Chamber and Firebox doors as follows. Insert Door Damper through rear end of Door shown A. Insert Door (long) Damper Rod through Door Damper openings on front side of Door to hold in place shown B. Lift rod end over first louver to secure shown C.
- Page 9 Assemble Lid Handle by inserting handle end through center hole of Lid and secure using one 1/4-20 x 1/2” bolt and 1/4” keps nut. Insert Lid Damper through cutouts on inner end of Lid. 1/4-20 x 1/2” Bolt 1/4” Handle Damper Insert Lid (short) Damper Rod through Lid Damper openings on outer side of Lid to hold in place.
- Page 10 Position Lid over Smoker Chamber. Secure Lid by sliding two Lid Stop through hinge holes locking both Lid and Smoker Chamber together. Secure using one 1/4-20 x 1/2”screw and 1/4” flat washer on each Lid Stop. 1/4” Flat 1/4-20 x 1/2” Washer Screw Smoker...
- Page 11 Preparing and Using Your Smoker Before cooking with your Smoker, the following steps should be closely followed to both cure the finish and season the interior steel. Failure to properly follow these steps may damage the finish and/or impart metallic flavors to your first foods.
- Page 12 Bradley Company. Thermos® is a registered trademark of the Thermos Company and its affiliates. Artisan Collection by Char-Broil ™, C3 and Design™, Char-Broil and Design™, Flame Design™, FlavorTents™, Grill 2 Go™, Grillin’ Stick™, Keeper of the Flame™, Keepers of the Flame™, Natural Grip™, Outdoor Cooking Collection and Design™, Patio Bistro™, PrecisionFlame™, Pro-Check™, QuickSet Grills and Design™, SmokerTents™, The Big Easy™, The Minute Grill™, The Edge™, The Tuscan Collection™, and The Urban Grill™...
- Page 13 Please register your product online at: www.grillregistration.com (If you register online, you do not need to send in this registration card.) PLEASE FILL OUT THIS CARD AND RETURN IT WITHIN 10 DAYS OF PURCHASE. FAILURE TO RETURN MAYAFFECT YOUR WARRANTY COVERAGE .
