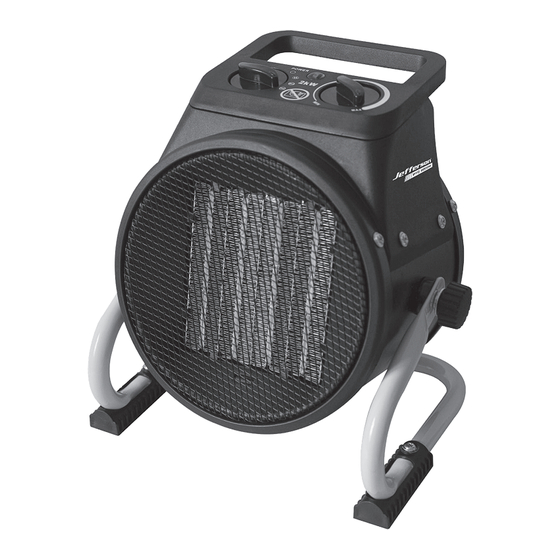

PTC 2000W
INDUSTRIAL
ELECTRICAL
FAN HEATER
JEFHTPTC2.0-230
IMPORTANT!
SAFETY FIRST!
Before attempting to use this product please read
all the safety precautions and operating instructions
outlined in this manual to reduce the risk of fire,
electric shock or personal injury.
instructions
FEATURES
Ideal for domestic and
industrial use.
Heat conducting ceramic
elements that produce
superior, odour free heat
within a small space.
PTC heating is a unique and
efficient thermal technology
producing heat with no
condensation, gas or
fumes.
Refer to
Electrical
shock hazard
This product is only suitable for well insulated spaces or occasional use.
SPECIFICATIONS
Model
Voltage
Required power
Current
Required Fuse
Setting
Self-Resetting Thermostat
Product measurement (mm)
N.W.(KG)
www.jeffersontools.com
Hot
surfaces
MAINTENANCE
WARNING! Ensure the unit is unplugged
JEFHTPTC2.0-230
from the mains power supply, cooled down
and on a level surface before carrying out
any maintenance.
220 - 240V ~
2000W
DO NOT use the heater without the
8.3 - 9.1A
protective grill fitted.
10A
Jefferson recommend that all maintenance
25/1000/2000W
and repairs are carried out by a
65°C
qualified technician.
160 x 210 x 217
1.7
JEFHTPTC2.0-230
User Manual
Do not
cover
v.1.1
Advertisement
Table of Contents
Related Manuals for Jefferson JEFHTPTC2.0-230
Summary of Contents for Jefferson JEFHTPTC2.0-230
- Page 1 DO NOT use the heater without the Current 8.3 - 9.1A within a small space. protective grill fitted. Required Fuse PTC heating is a unique and Jefferson recommend that all maintenance Setting 25/1000/2000W efficient thermal technology and repairs are carried out by a Self-Resetting Thermostat 65°C producing heat with no qualified technician.
- Page 2 1. INTRODUCTION The JEFHTPTC2.0-230 industrial fan heater with PTC heat conducting ceramic elements, produces dry heat without condensation, fumes and odours. The atmospheric room theromostat maintains consistent temperatures at a pre-set level, making the heater ideal for industrial applications with two heat settings or fan only.
-
Page 3: Operational Instructions
JEFHTPTC2.0-230 User Manual v.1.1 3. OPERATIONAL INSTRUCTIONS Position the fan heater so that it stands upright on a firm surface and at a safe distance from wet environments and flammable objects. Connect the fan heater to the mains. Set the thermostat knob to the MAX and let the heater operate with full power. -
Page 4: Parts Diagram
JEFHTPTC2.0-230 User Manual v.1.1 6. PARTS DIAGRAM 9 10 13 14 www.jeffersontools.com... -
Page 5: Parts List
JEFHTPTC2.0-230 User Manual v.1.1 7. PARTS LIST KEY NO. DESCRIPTION MATERIAL/SPECIFICATION Front grill SPCC Air outlet shutter, fixed ring PA66 + 30%GF 220 - 240V 2000W Air flue PA66 + 30%GF Motor YJ58-16A 230V 50Hz 25W Class 120 Outer casing... - Page 6 JEFHTPTC2.0-230 User Manual v.1.1 Model identifier(s): JEFHTPTC2.0-230 Item Symbol Value Unit Item Heat output Type of heat input, for electric storage local space heaters only (select one) Normal heat output Pnom Manual heat charge control with integrated thermostat Minimum heat output...
- Page 7 JEFHTPTC2.0-230 User Manual v.1.1 NOTES: www.jeffersontools.com...
-
Page 8: Limited Warranty Statement
• Date of purchase All warranty periods start from the date of purchase from an authorised Jefferson dealer. If proof of purchase is unavailable from the end user, then the date of purchase will be deemed to be 3 months A Warranty Returns form will be sent to you for completion and return by post or fax, together after the initial sale to the distributor.
