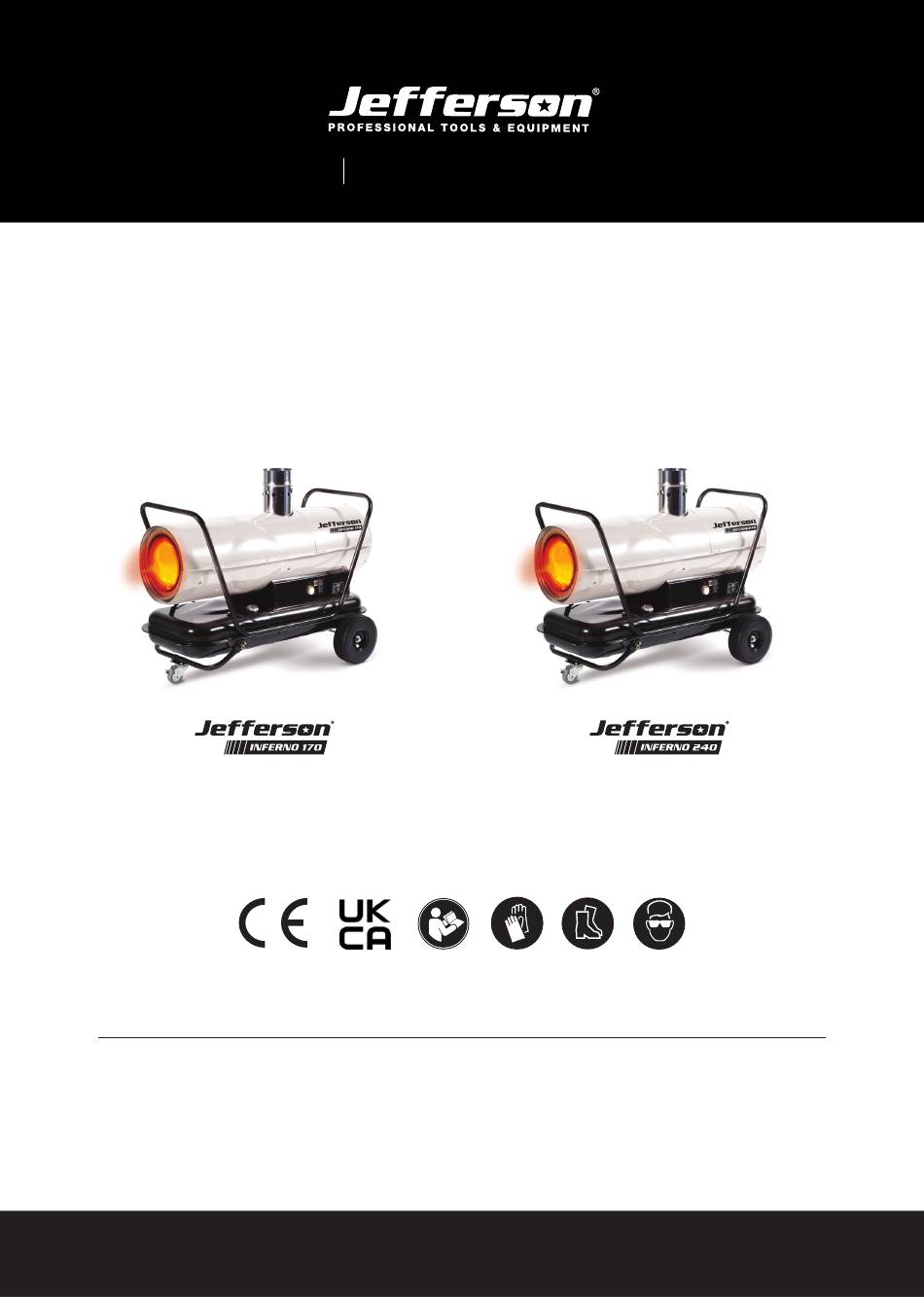

USER MANUAL
Inferno 170 Indirect Oil Heater
Inferno 240 Indirect Oil Heater
JEFHTIND170
SAVE THESE INSTRUCTIONS
Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or
subsequent owners. Apart from the notes contained herein the general safety provisions and rules for the prevention of accidents of
the legislator must be observed.
Warnings and notes that are attached on the appliance provide important notes for the safe operation.
Jefferson 170,000 BTU Indirect Oil Heater JEFHTIND170
v.1.1
Jefferson 240,000 BTU Indirect Oil Heater JEFHTIND240
www.jeffersontools.com
www.jeffersontools.com
www.jeffersontools.com
JEFHTIND240
