Summary of Contents for Zenty ZT-115

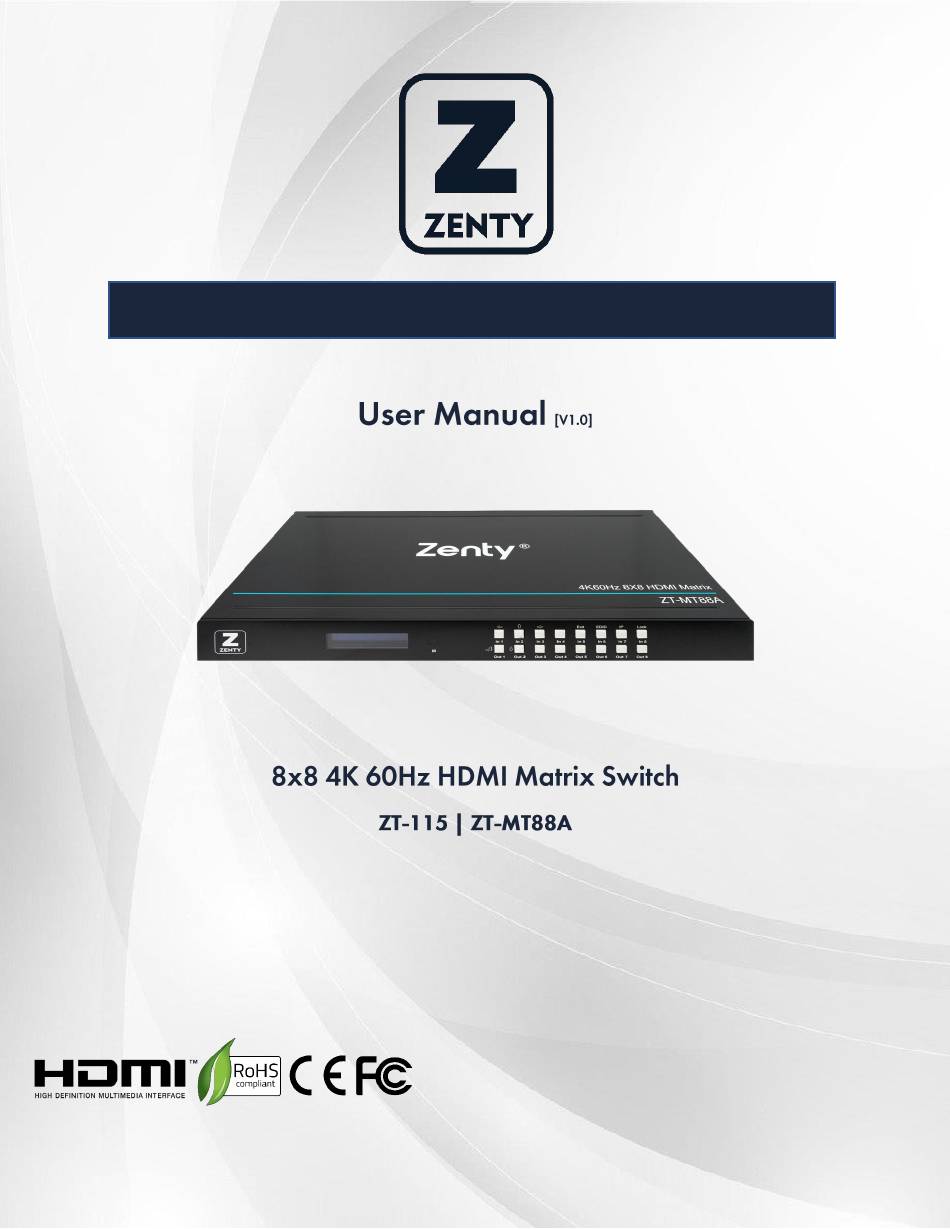

Page 1 Zenty | Professional A/V Solution Provider ® ZENTY 9807 EMILY LANE STAFFORD, TX 77477 (844) 200-1945 SUPPORT@ZENTY.COM (844) 200-1945 | sales@zenty.com Page 1 of 21 Copyright © Zenty AV...
Page 3 The Zenty ZT-MT88A is the ultimate Audio-Visual solutions for consumers looking to integrate multiple source devices to multiple displays, such as for use in a restaurant or bar, a church or conference centers. With this matrix users can connect up to 8 4K source devices, and route to any of their 8 connected displays.
Page 4 Supports Dolby True HD and DTS-HD master audio • Micro-USB interface for user to upgrade firmware • Controllable via front-panel buttons, IR remote, RS232, TCP/IP, Web GUI Control • 1U rack design, easy installation (844) 200-1945 | sales@zenty.com Page 4 of 21 Copyright © Zenty AV...
Page 5 2. OUTPUT 1~8 & INPUT 1~8: Press output keys (1~8) to select output source; then press input buttons to select input source (1~8). Users can also could press and hold Input & Output buttons for (844) 200-1945 | sales@zenty.com Page 5 of 21 Copyright © Zenty AV...
Page 6 Press Output1 button to confirm revising 1. IP CONTROL: Connect directly, or through a network switch, to your PC or laptop to control the unit via telnet/Web GUI. (844) 200-1945 | sales@zenty.com Page 6 of 21 Copyright © Zenty AV...
Page 7 DVI sources are supported with the use of an HDMI to DVI adapter. 8. OUTPUT 1~8: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. (844) 200-1945 | sales@zenty.com Page 7 of 21 Copyright © Zenty AV...
Page 8 We can read the current status by clicking the “Status” button, or “Clear” our historical operating record by clicking “Clear” button. The right down blank shows the operating history. (844) 200-1945 | sales@zenty.com Page 8 of 21 Copyright © Zenty AV...
Page 9 • The EDID session helps us to Read and Configure EDID for each input, such as HDR, 3D, Data rates and Audio channel. (844) 200-1945 | sales@zenty.com Page 9 of 21 Copyright © Zenty AV...
Page 10 LAN with the IP Address and connection. • Click “Net config” → “Connect” → “Search Device” → “Sel Device Number” → “Connect” then you can see the device name, it means successful connection. (844) 200-1945 | sales@zenty.com Page 10 of 21 Copyright © Zenty AV...
Page 11 You can also click “IE”, easy and click to enter into web • The last session is System Config, which allows power ON/OFF or reset, default the Matrix. (844) 200-1945 | sales@zenty.com Page 11 of 21 Copyright © Zenty AV...
Page 12 Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean. (844) 200-1945 | sales@zenty.com Page 12 of 21 Copyright © Zenty AV...
Page 14 3. Search the IP address of the HDMI Matrix. (Default Matrix IP address is: 192.168.1.168) 4. Open a web browser and enter the IP address you searched, then enter the following credentials: (844) 200-1945 | sales@zenty.com Page 14 of 21 Copyright © Zenty AV...
Page 18 And then click “Search” → “Port Sel” (to choose correct port) → “Connect” (It will show “S3RLC” when connect successfully) → “Load File” → “Update” Please do not power off or disconnect when it is updating the FW file. (844) 200-1945 | sales@zenty.com Page 18 of 21 Copyright © Zenty AV...
Page 19 This Limited Warranty is extended only to the original purchaser and only covers products purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty service. (844) 200-1945 | sales@zenty.com Page 19 of 21 Copyright © Zenty AV...
Page 20 The items listed are not exclusive, but are for illustration only.) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. (844) 200-1945 | sales@zenty.com Page 20 of 21 Copyright © Zenty AV...
Page 21 WWW.ZENTY.COM 9807 EMILY LANE STAFFORD, TX 77477 (844) 200-1945 SUPPORT@ZENTY.COM SALES@ZENTY.COM (844) 200-1945 | sales@zenty.com Page 21 of 21 Copyright © Zenty AV...

This manual is also suitable for:

Zt-mt88a
