Summary of Contents for Zenty ZT-116

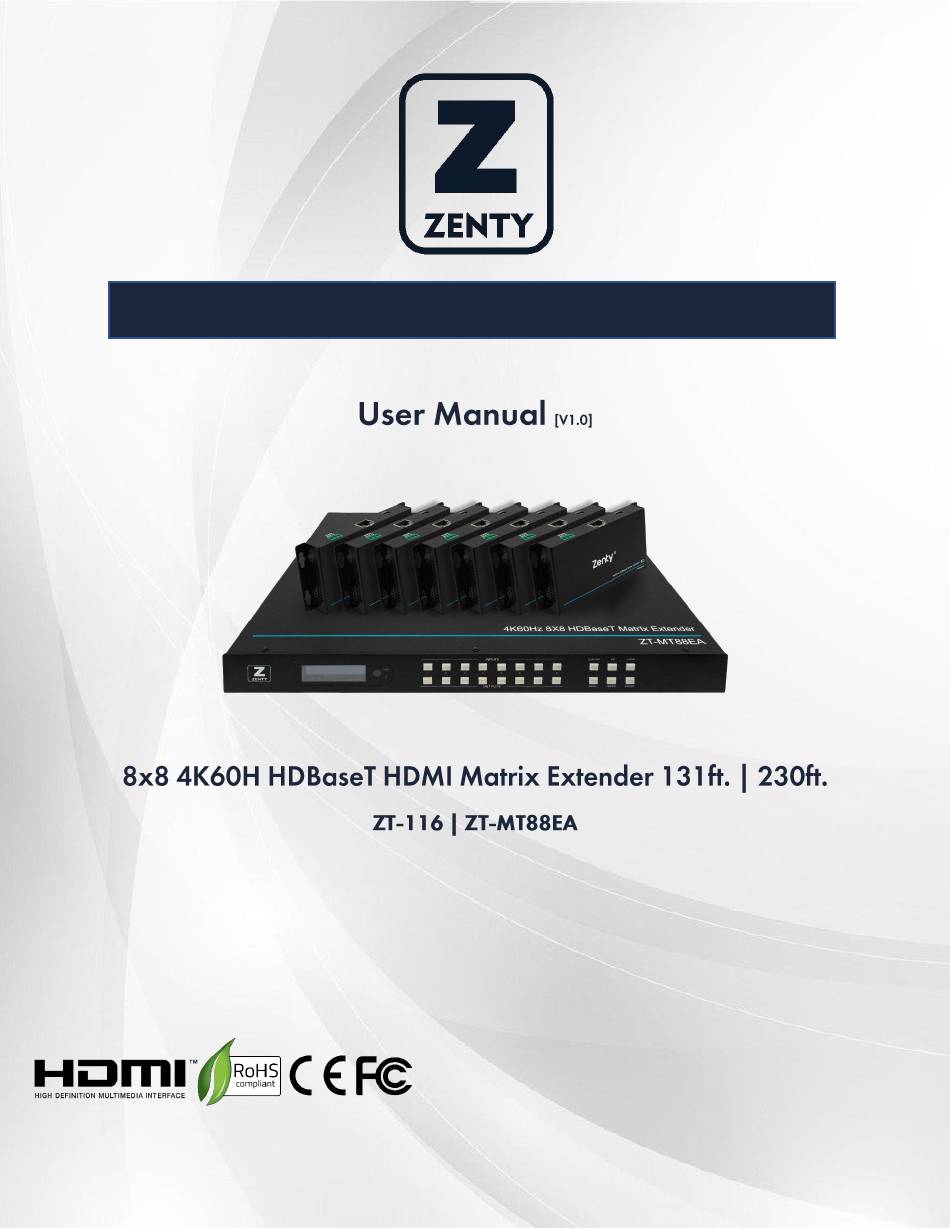

Page 1 Zenty | Professional A/V Solution Provider ® ZENTY 9807 EMILY LANE STAFFORD, TX 77477 (844) 200-1945 SUPPORT@ZENTY.COM (844) 200-1945 | sales@zenty.com Page 1 of 27 Copyright © Zenty AV...
Page 4 Power over Cable function, helping remove the need for additional power supplies, and ensuring a clean and neat setup. Manage signal routing and EDID via various control methods, such as front panel buttons, RS232, IR remote, web interface, and Zenty mobile app. RS232 control port allows for easy integration with 3 party control systems.
Page 5 1080P: 230ft. | 4K: 131ft. Power Consumption 100W (Max) Dimensions (L x W x H) 480mm x 348mm x 44mm 18.90” x 13.70” x 1.73” Net Weight 8.82 lbs. (844) 200-1945 | sales@zenty.com Page 5 of 27 Copyright © Zenty AV...
Page 7 1 x 8 ~ 8 x 1, which can switch any input. Signal to 1 channel output or all channel output. The specific operation is as follows: (844) 200-1945 | sales@zenty.com Page 7 of 27 Copyright © Zenty AV...
Page 8 ③Press “ENTER” enter next page ④Press “UP”, ”DOWN” button to select the output (The ninth port means ALL） ⑤Press “ENTER” ⑥Press “UP”, ”DOWN”to select the input ⑦Press “ENTER”, switching is done (844) 200-1945 | sales@zenty.com Page 8 of 27 Copyright © Zenty AV...
Page 9 ④Press “UP”, ”DOWN” button to select the output (The ninth port means ALL） ⑤Press “ENTER” ⑥Press “UP”, ”DOWN” to select “On” or “Off” ⑦Press “ENTER”, switching is done (844) 200-1945 | sales@zenty.com Page 9 of 27 Copyright © Zenty AV...
Page 10 Press the up and down buttons to select "Out" or "Mute" and press "ENTER" to confirm the. The bottom of the selected state will turn white with white dots at the back (844) 200-1945 | sales@zenty.com Page 10 of 27 Copyright © Zenty AV...
Page 11 ⑤After confirming EDID, specific information of the EDID (resolution, audio, EDID mode) will be displayed. SETUP mode can set the device’s RS-232 baud rate, DHCP, Reboot, Factory Specific operations are as follows (844) 200-1945 | sales@zenty.com Page 11 of 27 Copyright © Zenty AV...
Page 12 ①Select “Setup” in the menu and press “ENTER” ②Then use “UP”, ”DOWN” button to select the “Reboot” and press “ENTER” ③Press “UP”, ”DOWN” button to select “No” or “Yes” and press “ENTER” to confirm (844) 200-1945 | sales@zenty.com Page 12 of 27 Copyright © Zenty AV...
Page 13 ②Then use “UP”, ”DOWN” button to select the “Factory” and press “ENTER” ③Press “UP”, ”DOWN” button to select “No” or “Yes” and press “ENTER” to confirm Check the device information: IP or System information (844) 200-1945 | sales@zenty.com Page 13 of 27 Copyright © Zenty AV...
Page 16 Step 3: HDBaseT receiver support connect with IR receiver to control the Matrix by remote Step 4: Matrix IR channel “IR IN EYE” support connect with IR-RX cable to control the Matrix by remote (844) 200-1945 | sales@zenty.com Page 16 of 27 Copyright © Zenty AV...
Page 17 2. The “_” in the commands cannot omit. Parameter: %d: 0 means ALL. 3. Command head & Parameter1 & Parameter2... need to add one “SPACE”. The following table is only an example. Please refer to the list of instructions. (844) 200-1945 | sales@zenty.com Page 17 of 27 Copyright © Zenty AV...
Page 18 For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.168). 7). Click OK. 8). Click Close. Default IP Address: 192.168.1.168; MASK: 255.255.255.0; Gateway:192.168.1.1; MAC:0008-DCCA-CF3F （Each device has a different MAC address) (844) 200-1945 | sales@zenty.com Page 18 of 27 Copyright © Zenty AV...
Page 19 3. Login interface: Total 5 groups of accounts: accounts and passwords are 5-15 alphanumeric and underlined, other invalid or correct characters are intercepted; Account admin~admin4 total 4 accounts, password: admin (844) 200-1945 | sales@zenty.com Page 19 of 27 Copyright © Zenty AV...
Page 20 Save: Select any one of preset 1-8, blue means selected, and then click save to complete the save Apply: select any one of perset1~8 and click Apply again to complete the recall (844) 200-1945 | sales@zenty.com Page 20 of 27 Copyright © Zenty AV...
Page 21 Represents the output audio. You can only choose to output all or mute all 2. Just click the icon directly to complete the operation, rather than fast continuous operation (844) 200-1945 | sales@zenty.com Page 21 of 27 Copyright © Zenty AV...
Page 22 2.DHCP can only modify IP address, sub net mask and gateway in the off state, and does not support any parameter modification in the on state 3.DHCP switch: click Apply after click the white scroll bar to modify (844) 200-1945 | sales@zenty.com Page 22 of 27 Copyright © Zenty AV...
Page 23 (1. Matrix has 5 default accounts: admin~admin4, password: 123456. Account has level permissions 2. Only supports changing 6-15 characters of the account password in the form of letters, underscores and Numbers.) (844) 200-1945 | sales@zenty.com Page 23 of 27 Copyright © Zenty AV...
Page 24 If the upgrade progress bar is stopped in the middle of the upgrade, then the host will need to be rebooted, then the serial port will be upgraded (844) 200-1945 | sales@zenty.com Page 24 of 27 Copyright © Zenty AV...
Page 25 When shipping the unit, carefully pack and send it prepaid, adequately insured, and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached. (844) 200-1945 | sales@zenty.com Page 25 of 27 Copyright © Zenty AV...
Page 26 The items listed are not exclusive, but are for illustration only.) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. (844) 200-1945 | sales@zenty.com Page 26 of 27 Copyright © Zenty AV...
Page 27 WWW.ZENTY.COM 9807 EMILY LANE STAFFORD, TX 77477 (844) 200-1945 SUPPORT@ZENTY.COM SALES@ZENTY.COM (844) 200-1945 | sales@zenty.com Page 27 of 27 Copyright © Zenty AV...
