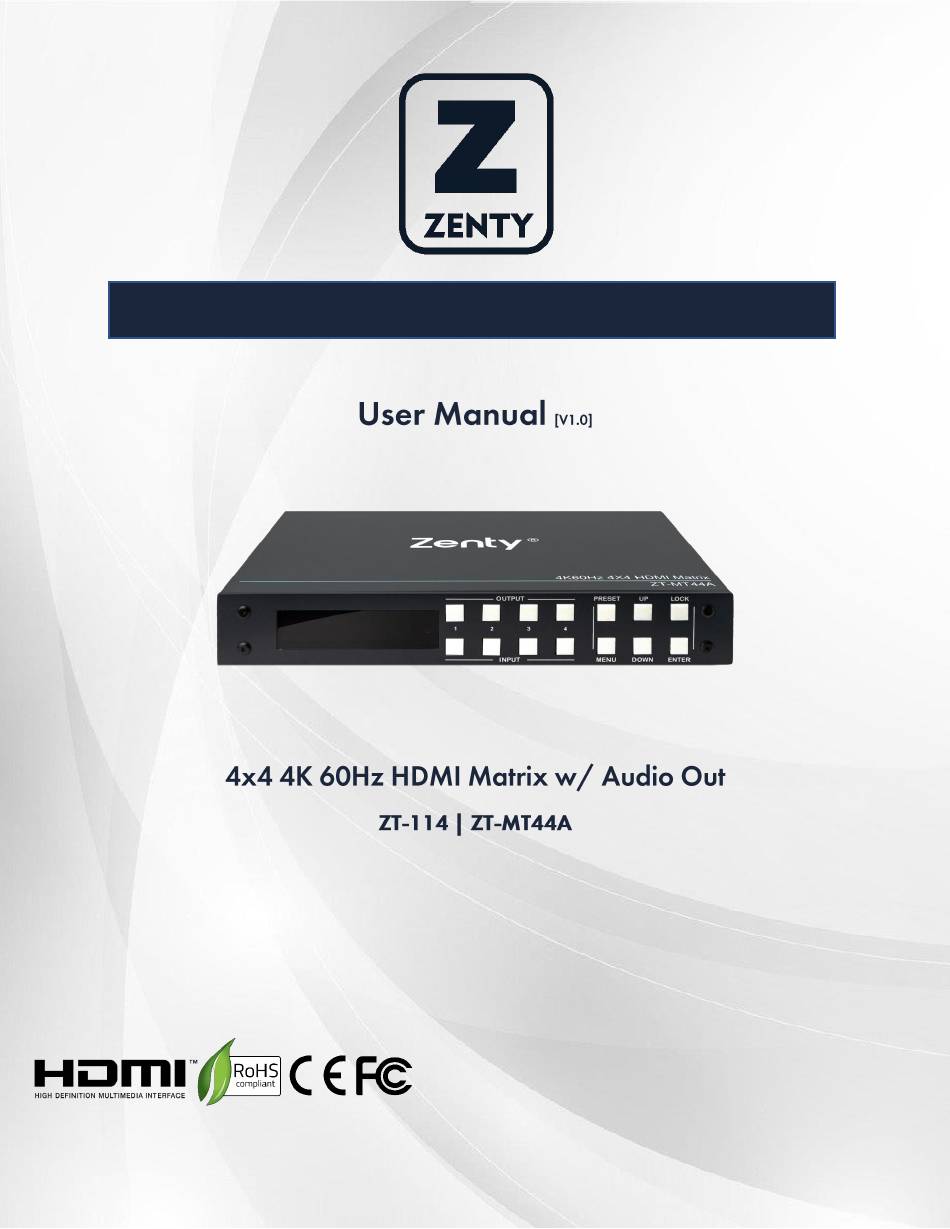

Zenty ZT-114 User Manual

4x4 4k 60hz hdmi matrix w/ audio out

Hide thumbs

page of 35

/ 35
Bookmarks

Quick Links

Download this manual

Zenty | Professional A/V Solution Provider

ZENTY

9807 EMILY LANE

STAFFORD, TX 77477

(844) 200-1945

SUPPORT@ZENTY.COM

(844) 200-1945 |

sales@zenty.com

Page 1 of 35

Need help?

Do you have a question about the ZT-114 and is the answer not in the manual?

Questions and answers

Summary of Contents for Zenty ZT-114

Page 1 Zenty | Professional A/V Solution Provider ® ZENTY 9807 EMILY LANE STAFFORD, TX 77477 (844) 200-1945 SUPPORT@ZENTY.COM (844) 200-1945 | sales@zenty.com Page 1 of 35 Copyright © Zenty AV...
Page 4 The Zenty ZT-MT44A is a professional UHD 4K 60Hz 4:4:4 HDR HDMI video distribution matrix switcher. Supporting 18Gbps video bandwidth, HDMI 2.0, and HDCP 2.2, this 4x4 matrix allows for up to 4 independent sources be routed to 4 different UHD displays. All four outputs support audio de- embedding via coaxial SPFID or analog connectors.
Page 5 Bandwidth 18Gbps Default IP Address 192.168.1.168 Rack-Mountable Rack Ears Included Dimensions (L x W x H) 8.51” x 5.06” x 1.33” Net Weight 1.04lbs. Power Consumption 14W (Max) (844) 200-1945 | sales@zenty.com Page 5 of 35 Copyright © Zenty AV...
Page 7 Optional: Connect an Ethernet cable from the TCP/IP port of the matrix to a LAN • Connect 12V power supply • Power on the matrix, HDMI sources, and the displays (844) 200-1945 | sales@zenty.com Page 7 of 35 Copyright © Zenty AV...
Page 9 Signal routing includes 4 input and 4 output channels that can be configured according to the desired effect to form a 1×4 through 4×4 matrix. Users can route any input signal to any output port or all output ports. (844) 200-1945 | sales@zenty.com Page 9 of 35 Copyright © Zenty AV...
Page 10 ④ Press “Up and Down” buttons to select “Output 1 – Output 4” or “All”. Your current selection will be highlighted in white ⑤ Press "ENTER" to enter the next sub-menu (844) 200-1945 | sales@zenty.com Page 10 of 35 Copyright © Zenty AV...
Page 11 ⑥ Press the “Up and Down” buttons to select the de sired input. Your current selection will be highlighted in white. ⑦ Press "ENTER" button to complete video switching (844) 200-1945 | sales@zenty.com Page 11 of 35 Copyright © Zenty AV...
Page 12 ⑤ Press "ENTER" to enter the next sub-menu ⑦ Press the “Up and Down” buttons to select “Off” or “On” ⑧ Press "ENTER" button to apply your selection (844) 200-1945 | sales@zenty.com Page 12 of 35 Copyright © Zenty AV...
Page 13 There are 2 sub-menus in Audio Control menu: Line Out | De-Embed (844) 200-1945 | sales@zenty.com Page 13 of 35 Copyright © Zenty AV...
Page 14: Operation
Operation: “Audio” + “ENTER” > “De-Embed” > “Output 1” > “Off” + “ENTER” EDID Management: User EDID | Built-in EDID | Copy EDID Function *Note - The default EDID profile is “Default1” (844) 200-1945 | sales@zenty.com Page 14 of 35 Copyright © Zenty AV...
Page 15 ④ Press the “Up and Down” buttons to select “Default1” and press “ENTER” to apply the EDID profile ⑤ EDID Profile settings (max resolution | audio format | HDR) will be shown when the EDID profile is highlighted. (844) 200-1945 | sales@zenty.com Page 15 of 35 Copyright © Zenty AV...
Page 16 ② Save Preset: Select Save > Highlight desired Preset (Preset 1 through 8) > “ENTER” ③ Call Preset: Select Call > Highlight desired Preset (Preset 1 through 8) > “ENTER” (844) 200-1945 | sales@zenty.com Page 16 of 35 Copyright © Zenty AV...
Page 17 ④ Clear Preset: Select Clear > Highlight any of the previously saved Presets (Preset 1 through 8) > “ENTER” The Setup interface allows users to set serial port baud rate, enable DHCP, reboot the device and apply a factory reset. (844) 200-1945 | sales@zenty.com Page 17 of 35 Copyright © Zenty AV...
Page 18 ②Press the “Up and Down” buttons to select “Baud” ③Press “ENTER” to enter the next sub-menu ④Press the “Up and Down” buttons to select “9600” ⑤Press “ENTER” to apply the setting change (844) 200-1945 | sales@zenty.com Page 18 of 35 Copyright © Zenty AV...
Page 19 ②Press the “Up and Down” buttons to select ”Reboot” ③Press “ENTER” to enter the next sub-menu ④Press the “Up and Down” buttons to select “Yes” ⑤Press “ENTER” to begin rebooting the device (844) 200-1945 | sales@zenty.com Page 19 of 35 Copyright © Zenty AV...
Page 20 ④Press the “Up and Down” buttons to select “ALL” and press the “ENTER” button ⑤Press the “Up and Down” buttons to select “Yes” and press the “ENTER” button (844) 200-1945 | sales@zenty.com Page 20 of 35 Copyright © Zenty AV...
Page 21 IP Interface: Query device IP address, MAC address and DHCP status Operation： ①Select “INFO” in the main menu and press the,” ENTER” button ②Press the “Up and Down” buttons to select “System” or “IP” (844) 200-1945 | sales@zenty.com Page 21 of 35 Copyright © Zenty AV...
Page 22 ③Press “ENTER” to enter the next sub-menu here system or IP information is available (844) 200-1945 | sales@zenty.com Page 22 of 35 Copyright © Zenty AV...
Page 23 Choose correct COM port that connects to the PC in the parameter configuration area (844) 200-1945 | sales@zenty.com Page 23 of 35 Copyright © Zenty AV...
Page 24 2). Choose to use Static IP (Use the following IP address), with the IP address set to 196.168.1.x (x ranges from 0 to 254, excluding 168 [device’s default IP]) 3). Subnet mask set to 255.255.255.0 4). Gateway set to 192.168.1.1 (844) 200-1945 | sales@zenty.com Page 24 of 35 Copyright © Zenty AV...
Page 25 Type in user name and password (default user name: admin | default password: 123456) Note: We recommend to using the latest version of Google Chrome, Mozilla Firefox and Microsoft Edge web browsers for the best compatibility. (844) 200-1945 | sales@zenty.com Page 25 of 35 Copyright © Zenty AV...
Page 26 1. Select desired mode from drop down menu – Input Port Name | Output Port Name | Preset Name. 2. Select desired input or output port. Rename port in field. Click “Save & Exit” to apply changes. (844) 200-1945 | sales@zenty.com Page 26 of 35 Copyright © Zenty AV...
Page 27 Click Output 1 “HDMI” button. Button color will change and audio will be disabled. Press again to enable audio. 2. Click Output 1 - 4 “De-Embed”: Enable / Disable Audio De-Embed Function (844) 200-1945 | sales@zenty.com Page 27 of 35 Copyright © Zenty AV...
Page 28 2. Output：00 - 03: Default EDID | 04 - 07: User EDID | 08 - 11: Copy EDID | 12 - 15: Input EDID | 16: Temp EDID (844) 200-1945 | sales@zenty.com Page 28 of 35 Copyright © Zenty AV...
Page 29 1）Apply Default2 EDID Profile to HDMI Input 1: Click “00>>Input1” and then click “01:Default2”. 2）Save HDMI Out 1 EDID to User1 Profile: Choose ”Default1” in “EDID Edit Page” and then choose “User1” and click “Set” to finish. (844) 200-1945 | sales@zenty.com Page 29 of 35 Copyright © Zenty AV...
Page 30 IP Address | Net Mask Address | Gateway Address can be modified only when DHCP is disabled. Cannot be modified when DHCP is enabled. Default IP address: 192.168.1.168 (844) 200-1945 | sales@zenty.com Page 30 of 35 Copyright © Zenty AV...
Page 31 Factory All: Click to reset device to full factory settings 2. Change Password: Change user name and password and then click,” Apply”. *Note: The username and password only support 6 - 15 characters (844) 200-1945 | sales@zenty.com Page 31 of 35 Copyright © Zenty AV...
Page 32 Connect unit to PC via USB cable from micro-USB port. Open Application,”UART_ISP_V1.6.exe” and select correct USB/COM port Set Baud Rate: 115200 | Type in “A1” in PORT | Select PATH and then click UPDATA to apply update. (844) 200-1945 | sales@zenty.com Page 32 of 35 Copyright © Zenty AV...
Page 33 Open Application” UART_ISP_V1.6.exe” and select correct USB/COM port Set Baud Rate: 115200 | Type in “F0” in PORT | Select PATH and then click UPDATA to apply update. (844) 200-1945 | sales@zenty.com Page 33 of 35 Copyright © Zenty AV...
Page 34 The items listed are not exclusive, but are for illustration only.) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. (844) 200-1945 | sales@zenty.com Page 34 of 35 Copyright © Zenty AV...
Page 35 WWW.ZENTY.COM 9807 EMILY LANE STAFFORD, TX 77477 (844) 200-1945 SUPPORT@ZENTY.COM SALES@ZENTY.COM (844) 200-1945 | sales@zenty.com Page 35 of 35 Copyright © Zenty AV...

This manual is also suitable for:

Zt-mt44a
