Summary of Contents for NSK Bruel & Kjaer Vibro VSI Series

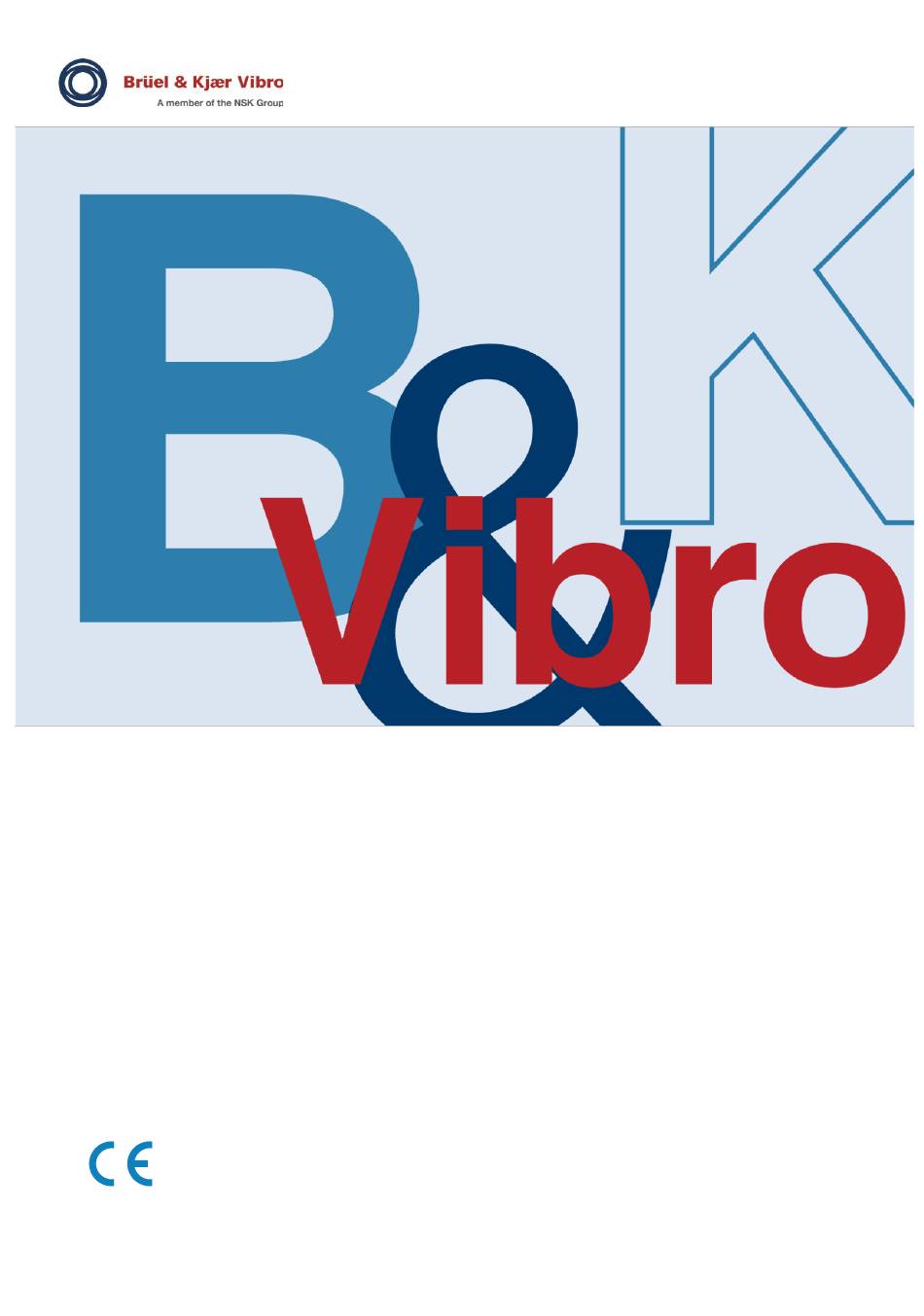

  • Page 1 Instructions VSI Series Velocity Sensors Retain for subsequent use...
  • Page 2 Copyright © 2022 Brüel & Kjær Vibro GmbH All rights to this technical documentation remain reserved. Any physical or non-physical reproduction or dissemination of this technical documentation or disclosure of this document to the public without prior written approval of Brüel & Kjær Vibro GmbH is prohibited. This also applies to parts of this technical documentation.
  • Page 3: Table Of Contents

    Brüel & Kjær Vibro │Instructions Velocity Sensors of the VSI series Table of Contents Table of Contents About this Document ....................5 Overview of Sensor Types ........................5 Safety Instructions ....................6 Pictograms and their Meaning ......................6 Qualifications of the Operating Company ..................6 Designated Use .............................
  • Page 4 Technical Data ....................... 15 Connection Diagram ....................17 CE Declaration ....................... 18 Brüel & Kjær Vibro ● C108110.002 / V01 Page 4 of 20 Subject to technical changes!
  • Page 5: About This Document

    Brüel & Kjær Vibro │Instructions Velocity Sensors of the VSI series About this Document About this Document This manual describes the correct installation and use of Velocity Sensors of the VSI series (VSI-1xx / VSI-2xx). The following information applies to the entire VSI series. If information applies to a specific version of a given sensor, this is indicated in the heading.
  • Page 6: Safety Instructions

    Safety Instructions Pictograms and their Meaning This symbol warns of dangerous situations which can result from misuse of the product. NOTE! These operating instructions are part of the product. Read the operating instructions carefully before using the product and retain the manual for future use. Qualifications of the Operating Company Only competent and authorized personnel are approved for any work related to our devices (for ATEX devices in accordance with EN 60079-14).
  • Page 7: Recommendation To The Operating Company

    Brüel & Kjær Vibro │Instructions Velocity Sensors of the VSI series Application Hot surfaces • Sensors or cables can be operated within wide ambient temperature ranges as specified in the operating instructions. This may result in them becoming hot due to heat transferred from adjacent housing walls and causing burns.
  • Page 8: Mounting

    Mounting VSI-10x Coupling As a general rule: The weight of the sensor should be at least ten times less than the relevant weight of the measurement object on which it is mounted and of which it measures vibrations. The sensor is an additional weight that places a load on the measurement object and modifies its vibration behavior.
  • Page 9: Vsi-20X

    Brüel & Kjær Vibro │Instructions Velocity Sensors of the VSI series Mounting VSI-20x Sensor VSI-20x Mounting surface Captive washer M6x1x30 or ¼" − 28 UNF Figure 5-2) Mounting (all lengths in [mm]) The sensor must be mounted with one of the screws included with delivery (M6x1x30 or ¼" – 28 UNF x 1 ¼"...
  • Page 10: Emc

    EN 61326-1 Electromagnetic interference may affect the measured value. A grounded protective steel conduit is recommended for the sensor line for this type of interference. Calibration If calibration services are required, we suggest the following options: • Factory calibration by Brüel & Kjær Vibro •...
  • Page 11: Product Specification Of Vsi-1Xx

    Brüel & Kjær Vibro │Instructions Velocity Sensors of the VSI series Product Specification of VSI-1xx Product Specification of VSI-1xx Features Sturdy design M12 connector, 4-pin Constant current supplied For universal applications Application Velocity sensor VSI-1xx is especially well suited for measurements on slowly rotating machines. It covers a wide range of applications such as monitoring turbines, fans, pumps and generators, etc.
  • Page 12: Order Code

    Order Code VSI-10x/xx/xx Mechanical design 10 = straight Connection 1 = M12 Frequency response 01 = 1 - 5000 Hz 02 = 3 - 5000 Hz Sensitivity 01 = 10mV/mm/s Optional Accessories AC-1405: Connection cable with straight M12 connector AC-1406: Connection cable with angled M12 connector AC-3360: Threaded bolt, ¼"...
  • Page 13: Product Specification Of Vsi-2Xx

    Brüel & Kjær Vibro │Instructions Velocity Sensors of the VSI series Product Specification of VSI-2xx Product Specification of VSI-2xx 10.1 Features Sturdy design M12 connector, 4-pin Constant current supplied For universal applications 10.2 Application Velocity sensor VSI-2xx is especially well suited for measurements on slowly rotating machines. It covers a wide range of applications such as monitoring turbines, fans, pumps and generators, etc.
  • Page 14: Order Code

    10.5 Order Code VSI-20x/xx/xx Mechanical design 20 = 90° Connection 1 = M12 Frequency response 01 = 1 - 5000 Hz 02 = 3 - 5000 Hz Sensitivity 01 = 10mV/mm/s 10.6 Optional Accessories AC-1405: Connection cable with straight M12 connector AC-1406: Connection cable with angled M12 connector ©...
  • Page 15: Technical Data

    Brüel & Kjær Vibro │Instructions Velocity Sensors of the VSI series Technical Data Technical Data The following performance data applies unless otherwise specified under standard conditions (ambient temperature = 25 °C, constant current = 4 mA). Dynamic Sensitivity, nom. (at 80 Hz): 10 mV/mm/s ±10 % Frequency response (typ.): VSI-10x/01/0x...
  • Page 16 Measuring range: 500 mm/s < 50 g Resonance frequency: typ. 20 kHz Amplitude linearity: typ. ±1 % Cross-sensitivity: < 5 % Electrical Maximum output voltage: 27.5 V Constant current supply (protected against reverse polarity): 3 mA .. 12 mA (24 V nom.) Bias voltage, typical: 12.0 VDC ..
  • Page 17: Connection Diagram

    Brüel & Kjær Vibro │Instructions Velocity Sensors of the VSI series Connection Diagram Connection Diagram © Brüel & Kjær Vibro ● C108110.002 / V01 Page 17 of 20 Subject to technical changes! UNRESTRICTED DOCUMENT...
  • Page 18 CE Declaration © Brüel & Kjær Vibro ● C108110.002 / V01 Page 18 of 20 Subject to technical changes!
  • Page 19 Brüel & Kjær Vibro │Instructions Velocity Sensors of the VSI series CE Declaration © Brüel & Kjær Vibro ● C108110.002 / V01 Page 19 of 20 Subject to technical changes! UNRESTRICTED DOCUMENT...
  • Page 20: Brüel & Kjær Vibro ● C108110.002 / V01

    Contact Brüel & Kjær Vibro GmbH Brüel & Kjær Vibro A/S BK Vibro America Inc Leydheckerstrasse 10 Lyngby Hovedgade 94, 5 sal 1100 Mark Circle 64293 Darmstadt 2800 Lyngby Gardnerville NV 89410 Germany Denmark Tel.: +49 6151 428 0 Tel.: +45 69 89 03 00 Tel.: +1 (775) 552 3110...
