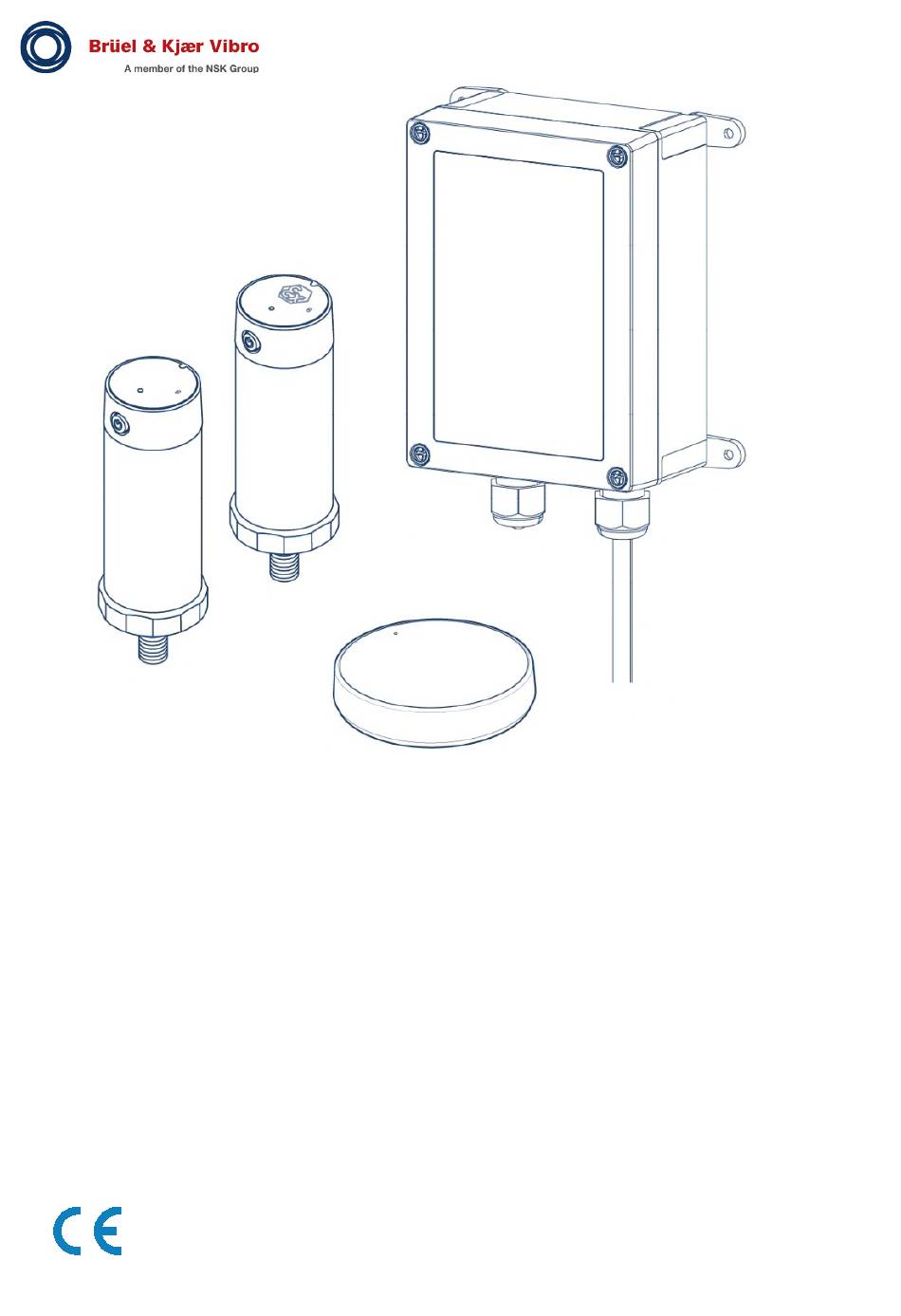

  • Page 1 Instructions BKV Wireless Sensor Solution BKV Collect Wireless Sensor BKV Connect Gateway Please keep this document for future reference...
  • Page 2 Trademarks and Copyrights All trademarks, service marks, and/or registered trademarks used in this document belong to Brüel & Kjær Vibro GmbH, except as noted below: Microsoft, Excel, Windows, and Outlook and their respective designs are marks of Microsoft Corporation in the United States and other countries.

  • Page 3: Table Of Contents

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Table of Contents System Overview ..................... 6 BKV Wireless Sensor Solution ......................6 1.1.1 General ................................... 6 1.1.2 Terms Used in the Instructions ..........................7 1.1.3 Definition of a Site ..............................8 1.1.4 Definition of an Asset ..............................
  • Page 4 Pre-Configuration Tool (BKV Ignite) ..............28 General Steps to Create a Project ..................... 28 Overview and Detail Pages......................... 29 5.2.1 SITES Overview ..............................29 5.2.2 Site Details ................................29 5.2.3 PROJECTS Overview ............................30 5.2.4 Project Details ...............................30 5.2.5 Asset Details................................31 5.2.6 Measuring Point Details ............................32 Logging in to the Pre-Configuration Tool (BKV Ignite) ..............
  • Page 5 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Maintenance ......................79 Cleaning Sensors and Gateways ....................... 79 Sensor Battery Life ..........................79 9.2.1 Impact of Routing Data on Sensor Battery Life......................79 Disposal ........................80 Technical Data ......................81 11.1 Technical Data Gateways (BKV Connect 1 & 2) ................81 11.2 Technical Data Wireless Sensors (BKV Collect 6 &...

  • Page 6: System Overview

    System Overview BKV Wireless Sensor Solution 1.1.1 General The BKV Wireless Sensor Solution offers the following advantages: • Monitoring the condition (tri-axial vibration, surface temperature data) of machines in large industrial facilities Acquiring data with wireless sensors • Exchanging data by a mesh network with gateways and processing, storing, and sending the •...

  • Page 7: Terms Used In The Instructions

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 1.1.2 Terms Used in the Instructions In the instructions, the following terms are used synonymously: BKV term Description Brüel & Kjær Vibro GmbH system with BKV Collect wireless sensors BKV Wireless Sensor Solution and BKV Connect gateways Wireless sensor - BKV Collect 6...

  • Page 8: Definition Of A Site

    1.1.3 Definition of a Site A Site can consist of several Areas. • Each Area can contain multiple Assets. • Figure 1-2) Definition of a site 1.1.4 Definition of an Asset An Asset can consist of several Components (for example, 1, 2) •...

  • Page 9: Gateway

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 1.1.5 Gateway A gateway connects a mesh network of a few to several dozens of wireless devices to a backend. The gateway exchanges data with the mesh network and can process, store, and send data to local or cloud backends.

  • Page 10: Software

    1.1.7 Software 1.1.7.1 Pre-Configuration Tool (BKV Ignite) Within the BKV Ignite pre-configuration tool (https://ignite.bkvbeyond.com) you will be able to: • Set up your sites and areas • Set up your assets and components • Set up your monitoring devices (gateways, sensors, etc.) •...

  • Page 11: Safety

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Safety Disclaimer Observing these instructions is a basic requirement for the proper and safe operation of the product. We accept no liability for personal injury, damage to property or financial loss caused by failure to observe this technical documentation.

  • Page 12: Intended Use

    Intended Use The BKV Wireless Sensor Solution system is intended solely for measuring tri-axial vibration and surface temperature of rotating equipment, such as pumps, motors, and compressors. • The gateways and sensors are designed for indoor industrial environment • The gateway is also available in a protective enclosure that can be used in industrial environments that require a higher degree of water and dust protection.

  • Page 13: Risks And Hazards

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Risks and Hazards WARNING! Failure to follow the safety instructions in these instructions could result in death, serious personal injury and/or property damage and may void warranty. Read this guide carefully before installing or using the device.

  • Page 14: Electrical Hazards

    2.5.2 Electrical Hazards WARNING! Any adjustment, maintenance, and repair of the open product under voltage must be avoided as far as possible and, if unavoidable, must be carried out only by trained service. NOTICE! Switch off all power to equipment before connecting or disconnecting their digital interface.

  • Page 15: Danger Of Burns Due To Hot Surfaces

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 2.5.5 Danger of Burns Due to Hot Surfaces WARNING! Hot Surfaces • When mounted at external heat sources (e.g., machine parts), gateways, sensors and cables can adopt dangerous temperatures, whereby burning, among other things, can occur in the event of contact.

  • Page 16: Small Children

    2.6.4 Small Children The device is not a toy. It may contain small parts. Keep them out of the reach of small children. 2.6.5 Handling the Lithium Batteries in the Sensors The sensors are equipped with a 3.6V A lithium thionyl chloride (LI-SOCI2) bobbin cell primary battery.

  • Page 17: User Qualification

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution User Qualification Personnel must be trained according to IEC 60079-14. In addition, personnel must be aware of the general installation regulations for electrical equipment and the relevant national regulations regarding the construction of explosion-protected facilities.

  • Page 18: System Description

    System Description Structure The system consists of several components: BKV Collect (wireless sensors) • BKV Connect (gateways) • BKV Deploy (installation and commissioning app) • BKV Ignite (pre-configuration tool) • • BKV Beyond (SaaS based predictive maintenance solution empowered by AI) •...

  • Page 19: General Workflow

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution General Workflow It is good practice to set up your BKV Wireless Sensor Solution system according to the following main steps: • Getting an overview of the operational environment area ○...

  • Page 20: Planning The Mesh Network

    Planning the Mesh Network 3.3.1 Overview It is important to plan the mesh network before the actual on-site installation. The layout of the operational environment area defines where the individual sensors and gateways need to be placed. Therefore, it is important to plan the entire mesh network layout before deployment so that all data from the sensors can be transmitted smoothly to the backend.

  • Page 21: Placement Of Devices And Optimal Layout

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 3.3.3 Placement of Devices and Optimal Layout 3.3.3.1 Installation Sequence of the Devices Based on the operational environment area, you can determine the locations of the sensors. They must be installed in the places where they will collect data. From this starting point, you can plan where to place the gateways and sensors that only work as routing sensors.
  • Page 22 3.3.3.3 Short Routes The data from each sensor should be able to reach the gateway by the shortest route. The longer the routing chain, the more data is transferred through sensors closer to the gateway. This can lead to data congestion and high battery consumption. Figure 3-2) Short routes 3.3.3.4 Gateway to Sensor Ratio...
  • Page 23 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 3.3.3.5 Gap Bridging If the gateway and sensors are too far apart for efficient data transmission, place one or more routing sensors between them to transmit data from one sensor to the other. Avoid layouts where one sensor routes traffic from multiple other sensors.

  • Page 24: Impact Of Routing Large Data On Mesh Network Performance

    3.3.4 Impact of Routing Large Data on Mesh Network Performance An important factor when designing the layout for a mesh network is the amount of data that will be transmitted through the mesh network to the gateway. In general, we distinguish between the following data: •...

  • Page 25: Positioning Of The Gateway

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Positioning of the Gateway Also refer to 3.3 Planning the Mesh Network. The following guidelines apply to the positioning of the gateways to ensure adequate data transmission: • Mount and install the gateway in a central position in the area of the installed sensors so that as many sensors as possible are directly within its operating range.

  • Page 26: Positioning Of The Sensors

    Positioning of the Sensors Also refer to 3.3 Planning the Mesh Network and 7.2.2 Mounting the Sensors. When mounting the sensors to a monitored equipment, it is important to consider the location of the sensor and the contact between the sensor and the machine. The best location to attach the sensor depends on the machine and the monitored vibration source.

  • Page 27: Delivery, Transport And Storage

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Delivery, Transport and Storage Delivery Check the packaging for damage upon delivery and make sure that the contents are complete. Report any defects immediately as a complaint. Transport Also refer to 2.6.5 Handling the Lithium Batteries in the Sensors. The sensors contain lithium thionyl chloride batteries (LI-SOCI2) and are therefore classified as dangerous goods during transport.

  • Page 28: Pre-Configuration Tool (Bkv Ignite)

    Pre-Configuration Tool (BKV Ignite) Within the BKV Ignite pre-configuration tool (https://ignite.bkvbeyond.com) you will be able to: Set up your sites and areas (refer to 1.1.3 Definition of a Site) • • Set up your assets and components (refer to 1.1.4 Definition of an Asset) •...

  • Page 29: Overview And Detail

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Overview and Detail Pages 5.2.1 SITES Overview Figure 5-1) SITES overview 5.2.2 Site Details Figure 5-2) Site details © Brüel & Kjær Vibro ● C108377.002 / V05 Page 29 of 94 UNRESTRICTED DOCUMENT...

  • Page 30: Projects Overview

    5.2.3 PROJECTS Overview Figure 5-3) PROJECTS overview 5.2.4 Project Details Figure 5-4) Project details Page 30 of 94 © Brüel & Kjær Vibro ● C108377.002 / V05 UNRESTRICTED DOCUMENT...

  • Page 31: Asset Details

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 5.2.5 Asset Details Figure 5-5) Asset details © Brüel & Kjær Vibro ● C108377.002 / V05 Page 31 of 94 UNRESTRICTED DOCUMENT...

  • Page 32: Measuring Point Details

    5.2.6 Measuring Point Details Figure 5-6) Measuring point details Page 32 of 94 © Brüel & Kjær Vibro ● C108377.002 / V05 UNRESTRICTED DOCUMENT...

  • Page 33: Logging In To The Pre-Configuration Tool (Bkv Ignite)

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Logging in to the Pre-Configuration Tool (BKV Ignite) Log in to the BKV Ignite pre-configuration tool (https://ignite.bkvbeyond.com). The login data is provided by the Brüel & Kjær Vibro GmbH. After logging in, the SITES overview (5.2.1 SITES Overview) is displayed, which contains information about the already existing sites.

  • Page 34: Create New Monitoring Device (Gateway)

    Create New Monitoring Device (Gateway) On the Site details page (5.2.2 Site Details) click Add monitoring device. A. Monitoring Device Name: Enter the name of the monitoring device. B. Monitoring Device Type: Select the monitoring device type. C. Area: Select the area where the monitoring device will be mounted.

  • Page 35: Add New Asset (Machine)

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Add New Asset (Machine) On the Site details page (5.2.2 Site Details), click Add asset. A. Machine name: Enter the name of the machine. B. Machine details: Enter the Manufacturer. Select an Area and a Machine type.

  • Page 36: Add Component (Of The Machine)

    Add Component (of the Machine) On the Site details page (5.2.2 Site Details), select the asset from the Assets list to which you want to add a component. The Asset details page is displayed (5.2.5 Asset Details). Click Add component. A.

  • Page 37: Add Measuring Point

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Add Measuring Point On the Site details page (5.2.2 Site Details), select the asset from the Assets list to which you want to add a measuring point. The Asset details page (5.2.5 Asset Details) is displayed. Click Add measuring point.

  • Page 38: Create Sensor

    Create Sensor On the Asset details (5.2.5 Asset Details) page, select the measuring point from the Measuring points list to which you want to add a sensor. The Measuring point details page (5.2.6 Measuring Point Details) is displayed. Click Add sensor. A.

  • Page 39: Create A New Project

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 5.10 Create a New Project On the Site details page (5.2.2 Site Details), click CREATE PROJECT. A. Project name: Enter the name of your new project. B. Select customer: Select a customer.

  • Page 40: Export Setpoint Configuration (For Setpoint Only)

    5.11 Export SETPOINT Configuration (for SETPOINT only) Export the configuration from BKV Beyond Ignite using the SETPOINT CONFIGURATION button from the Site Details screen (refer to 5.2.2 Site Details). Figure 5-14) SETPOINT CONFIGURATION This will open a screen where the assets to be included in this exported configuration can be selected.

  • Page 41: Installation And Commissioning App (Bkv Deploy)

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Installation and Commissioning App (BKV Deploy) Within the BKV Deploy installation and commissioning app you will be able to get guidance on how to set up, install and commission the sensors, the gateways, and the connection to either BKV Beyond or SETPOINT CMS based on AVEVA PI.

  • Page 42: Home Screen Of The App

    Home Screen of the App A. Opens the navigation drawer (refer to 6.4 Navigation Drawer). B. Displays the name of the present project. Tab on the v-arrow to select another project. C. Opens a filter screen. Enter text to search for a task. D.

  • Page 43: Navigation Drawer

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Navigation Drawer To open the navigation drawer, tab on the hamburger icon in the upper left corner of the home screen. A. Home: Opens the home screen. B. Registration Opens the general Registration & Configuration screen for sensors and gateways.

  • Page 44: Detail Screen Of A Machine

    Detail Screen of a Machine A. Back to the previous screen B. Detailed information on the machine (name, number of measuring points) C. Graphical representation of the machine You can zoom and move the graphical representation. D. Information on the measuring points E.

  • Page 45: Registration & Configuration Screen 1 (Gateway)

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Registration & Configuration screen 1 (Gateway) A. Opens the navigation drawer (refer to 6.4 Navigation Drawer). B. Information on the prerequisites for registration Tab on More info to display a list of instructions for configuration.

  • Page 46: Admin App (Gateway)

    6.8.1 Admin App (Gateway) After tabbing Launch admin app in the Registration & Configuration screen 1 (Gateway), see above, the home screen of the Admin app is displayed. A. Tab on CONTINUE to open the second screen of the Admin app. Figure 6-7) Admin app (gateway) 1 B.

  • Page 47: Registration & Configuration Screen 2 (Gateway)

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Registration & Configuration screen 2 (Gateway) A. Back to the previous screen B. Select a gateway task from the list. C. Select an area from the list. D. Enter the serial number of the gateway. You can also scan the QR code on the gateway.

  • Page 48: Registering A Gateway (Step By Step)

    6.11 Registering a Gateway (Step by Step) You can register a device from the home screen (as described below) • You can register a device from the general Registration & Configuration screen. The • procedure is very similar to the one described below To go to the general Registration &...
  • Page 49 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 4) Switch to the configuration mode of the BKV Connect. Press the configuration button on the BKV Connect until the status light starts blinking. The gateway becomes a Wi-Fi access point.

  • Page 50: Registering A Sensor (Step By Step)

    6.12 Registering a Sensor (Step by Step) You can register a device from the home screen (as described below) • You can register a device from the general Registration & Configuration screen. The • procedure is very similar to the one described below To go to the general Registration &...
  • Page 51 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 4) In the detail screen of the measuring point, tab on Register. Result: The Registration & Configuration screen of the measuring point is displayed. 5) In the Registration & Configuration screen of the measuring point, enter the Sensor S/N.

  • Page 52: Mounting And Installation

    Mounting and Installation Gateway 7.1.1 Keys and Parts 7.1.1.1 Protective Enclosure A. Status light B. Ethernet cable gland C. Air vent D. Power cable gland E. Power cable (not included) F. Adjustable mounting brackets G. Lid screws H. Gateway inside enclosure Figure 7-1) Keys and parts (protective enclosure) Page 52 of 94 ©...
  • Page 53 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 7.1.1.2 Gateway USB A host port J. Power cable connector K. Ethernet cable connector L. Configuration button M. Micro SIM card slot Figure 7-2) Keys and parts (gateway) © Brüel & Kjær Vibro ● C108377.002 / V05 Page 53 of 94 UNRESTRICTED DOCUMENT...

  • Page 54: Gateway Without Enclosure

    7.1.2 Gateway Without Enclosure 7.1.2.1 Mounting the Gateway (Wall Mount) The gateway without enclosure can be mounted on the wall. For this, you need a wall mounting adapter (Wall mount for BKV Connect 1, AC-375). 1) Attach the wall mount adapter to the surface with five screws (A), maximum diameter 3.5 mm (0.138 in).

  • Page 55: Gateway In Protective Enclosure

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 7.1.3 Gateway in Protective Enclosure 7.1.3.1 Mounting the Gateway in Protective Enclosure INFORMATION AUSTRALIA, NEW ZEALAND: This device should be mounted at a height of less than 2 m (6.56 ft). 1) Turn the four adjustable mounting brackets (A) outwards.
  • Page 56 7.1.3.2 Opening the Protective Enclosure of the Gateway DANGER! Hazardous Voltage/Electricity Do not work on the device when it is under voltage! • • Always disconnect the power cable from the mains before opening the enclosure • Do not remove the finger guard of the power cable as this may result in electric shock 1) Always disconnect the power cable from the mains before opening the enclosure.
  • Page 57 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 7.1.3.3 Connecting the Power Supply of the Gateway DANGER! Hazardous Voltage/Electricity Do not work on the device when it is under voltage! • • Always disconnect the power cable from the mains before connecting it to the device INFORMATION It is a good practice to use a H07RN-F, 2x1.5 qmm (AWG 16), outer diameter about 9 mm (0.35 in), cable for connecting the power supply of the gateway.
  • Page 58 4) Pull the power cable through cable gland cap and install the rubber sealing around cable. Push the rubber sealing inside the cable gland. 5) Connect the two wires (D) of the power cable to the terminal block. 6) Re-install the finger guard (E). 7) Adjust the cable length to appropriate length and tighten the power cable gland cap.

  • Page 59: Connecting The Gateway

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 7.1.4 Connecting the Gateway You can connect the gateway: 7.1.4.1 Using an Ethernet Cable Connection • 7.1.4.2 Using a Cellular Connection • 7.1.4.3 Using a Wi-Fi Connection • INFORMATION The Ethernet and cellular connections automatically override the Wi-Fi connection. INFORMATION Ensure that port 8883 is open on the customer network so that the gateway can •...
  • Page 60 7.1.4.1 Using an Ethernet Cable Connection 1) Open the protective enclosure lid as described in section 7.1.3.2 Opening the Protective Enclosure of the Gateway. 2) Unscrew the Ethernet cable gland cap (A). Remove the sealing rubber (A1) and plug (A2) by pushing from inside out.
  • Page 61 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 7.1.4.2 Using a Cellular Connection INFORMATION To investigate whether this connection type can be used in your region, please contact your local Brüel & Kjær representative. 1) Open the protective enclosure lid as described in section 7.1.3.2 Opening the Protective Enclosure of the Gateway.

  • Page 62: Powering Up The Gateway

    7.1.5 Powering Up the Gateway 1. Make sure that the power cable is attached to the gateway. 2. Close the protective enclosure lid. 3. Plug the gateway power cable into a wall outlet. The gateway switches on automatically. INFORMATION Use only the power supply unit provided together with the device. Status light colors: Green light: The gateway is connected.

  • Page 63: Configuring The Gateway

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 7.1.6 Configuring the Gateway A. Configuration button B. Status light Figure 7-10) Configuring the gateway 1. Open the protective enclosure lid as described in section 7.1.3.2 Opening the Protective Enclosure of the Gateway. 2.

  • Page 64: Sensors

    Sensors 7.2.1 Keys and Parts A. Status light B. Orientation notch C. Power button D. NFC tag E. M8 bolt F. Nut adapter G. Magnetic epoxy mount adapter* H. Glue mount adapter * The adapter G is not included in the standard sales packaging.
  • Page 65 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Generally, there are four installation methods: Installation Curved Manual Bonding Surface Thread hole method surface alignment 32 mm Glue Glue mount adapter None (1.26 in) Mechanical / 9.5 mm 25 mm Nut adapter Epoxy (0.37 in)
  • Page 66 7.2.2.3 Mounting Ex-certified Sensors The sensors in Ex-certified variant are certified for use in potentially explosive atmospheres. DANGER! When a sensor is installed in a potentially hazardous area, the following requirements must be met: The installation for Ex-certified devices must be made in conformity to the •...
  • Page 67 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 7.2.2.4 Installation with Glue Mount Adapter Using the glue mount adapter, a sensor can be mounted to a flat surface with glue without drilling a hole for a screw. It is possible to align the sensor manually. Installation with a glue mount adapter requires a flat surface of 32 mm (1.26 in) diameter.
  • Page 68 7.2.2.4.1 Option A: Alignment During Installation 1) Thoroughly clean the machine surface at the location where the sensor should be attached and in a larger area around it. 2) Thoroughly clean the non-magnetic top surface of the glue mount adapter. If you are not sure which surface is the correct one, test the magnetic surface of the adapter with a metal surface and then choose the opposite surface for this step.
  • Page 69 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 7.2.2.4.2 Option B: Pre-Alignment of the Glue Mount Adapter 1. Screw the glue mount adapter and the sensor together and tighten by hand. 2. Place the glue mount adapter with the sensor to the machine surface where it is planned to be installed.
  • Page 70 7.2.2.5 Installation with Nut Adapter You can install the sensor either with or without epoxy. Option A: Nut adapter installation with epoxy: • Minimum thread length can be less than 9 mm (0.35 in) depending on the amount of epoxy. •...
  • Page 71 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 7.2.2.5.1 Connect the Nut Adapter to the Sensor 1) Thoroughly clean the larger surface of the nut adapter. 2) Apply silicone grease and spread it around the hole in the nut with your finger. Therefore, use an unpowdered latex glove.
  • Page 72 7.2.2.5.3 Option A: Installation With Epoxy INFORMATION We used the WÜRTH Epoxy-Stick Metal for this step and have had good experience with it. Of course, you can use any suitable high-quality epoxy resin. 1. Put on protective gloves. 2. Cut a suitable piece of the epoxy resin. Knead it between your fingers until the two components have mixed and the color is uniform.
  • Page 73 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 7.2.2.5.4 Option B: Installation Without Epoxy 1. Carefully screw the sensor by hand onto the cleaned and greased surface of your machine. INFORMATION Optionally, you can use a threadlocker if needed to secure the sensor in place. 2.
  • Page 74 7.2.2.6.1 Connect the Magnetic Epoxy Mount Adapter to the Sensor 1) Thoroughly clean the non-magnetic top surface of the magnetic epoxy mount adapter. If you are not sure which surface is the correct one, test the magnetic surface of the adapter with a metal surface and then choose the opposite surface for this step.
  • Page 75 Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 7.2.2.7 Installation without Adapter For this installation method, the sensor is directly attached to the machine surface. This minimizes the vibration transmission route for best measurement quality. Installation without an adapter requires a flat surface of 32 mm (1.26 in) diameter, and a hole for an M8 bolt with 18.5 mm (0.73 in) depth of threading.

  • Page 76: Aligning The Sensor

    7.2.3 Aligning the Sensor For accurate interpretation of the measurement data, the centerline of the sensor is often aligned with the shaft of the rotating machine. This can be done by manually aligning the sensor with the shaft. Manual alignment requires using the epoxy or glue mount adapter. After applying the fixative and hand tightening the sensor to the machine, align the sensor axis directly toward drive or non-drive end of monitored machine.

  • Page 77: Verifying The Connection

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 7.2.5 Verifying the Connection To verify if the sensor is connected to the gateway, proceed as follows: Press the power button briefly. The status light turns green (the sensor is on) and the status light goes off again.

  • Page 78: Setpoint Condition Monitoring Software Based On Aveva Pi

    SETPOINT Condition Monitoring Software based on AVEVA PI A comprehensive online condition monitoring software solution for critical and non-critical machinery. It is designed for use in the hydrocarbon processing, petrochemical, power generation and other industries. SETPOINT CMS provides powerful visualization tools for analysis and diagnostics of ®...

  • Page 79: Maintenance

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Maintenance Cleaning Sensors and Gateways Use only a soft, clean, and dry cloth to clean the surface of the device. Do not clean the device • with solvents, toxic chemicals, or strong detergents, as they may damage your device and void the warranty.

  • Page 80: Disposal

    Disposal Check the local regulations for proper disposal of electronic products. The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on 13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life.

  • Page 81: Technical Data

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Technical Data 11.1 Technical Data Gateways (BKV Connect 1 & 2) Type Gateway to connect BKV Collect wireless sensors Mesh network wireless 2.4 GHz ISM band low energy mesh radio network communication (maximum power +4 dBm) Power source...

  • Page 82: Technical Data Wireless Sensors (Bkv Collect 6 & 6 Ex)

    11.2 Technical Data Wireless Sensors (BKV Collect 6 & 6 Ex) Type Triaxial MEMS based vibration sensor with integrated temperature measurement Vibration measurement Acceleration: RMS, peak, peak-peak Velocity: RMS, peak, peak-peak Others: Kurtosis, Crest factor and raw data (time waveform) Frequency range 10 - 6300 Hz +- 3dB Dynamic range...

  • Page 83: Order Codes

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 11.3 Order Codes BKV Collect 6 Wireless sensor C108344.001 (with glue mount attached and nut adapter separate) BKV Collect 6 Ex Wireless sensor for hazardous areas C108345.001 (with glue mount attached and nut adapter separate) BKV Connect 1 Gateway C108346.001...

  • Page 84: Explosion Protection

    Explosion Protection The following applies to the BKV Collect 6 Ex (sensor in Ex-certified variant): ATEX & IECEx markings II 2 G Ex ib IIC T4 Gb II 2 D Ex ib IIIC T135°C Db Ambient Temperature: -40 °C to +60 °C | -40 °F to +140 °F MET markings Class I Zone 1 AEx ib IIC T4 Gb Zone 21 AEx ib IIIC T135°C Db...

  • Page 85: Appendix 1: Declaration Of Conformity

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Appendix 1: Declaration of Conformity 13.1 Gateway (BKV Connect 1) © Brüel & Kjær Vibro ● C108377.002 / V05 Page 85 of 94 UNRESTRICTED DOCUMENT...
  • Page 86 Page 86 of 94 © Brüel & Kjær Vibro ● C108377.002 / V05 UNRESTRICTED DOCUMENT...

  • Page 87: Gateway In Protective Enclosure (Bkv Connect 2)

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 13.2 Gateway in Protective Enclosure (BKV Connect 2) © Brüel & Kjær Vibro ● C108377.002 / V05 Page 87 of 94 UNRESTRICTED DOCUMENT...
  • Page 88 Page 88 of 94 © Brüel & Kjær Vibro ● C108377.002 / V05 UNRESTRICTED DOCUMENT...

  • Page 89: Sensor (Bkv Collect 6)

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 13.3 Sensor (BKV Collect 6) © Brüel & Kjær Vibro ● C108377.002 / V05 Page 89 of 94 UNRESTRICTED DOCUMENT...
  • Page 90 Page 90 of 94 © Brüel & Kjær Vibro ● C108377.002 / V05 UNRESTRICTED DOCUMENT...

  • Page 91: Sensor In Ex-Certified Variant (Bkv Collect 6 Ex)

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution 13.4 Sensor in Ex-certified variant (BKV Collect 6 Ex) © Brüel & Kjær Vibro ● C108377.002 / V05 Page 91 of 94 UNRESTRICTED DOCUMENT...
  • Page 92 Page 92 of 94 © Brüel & Kjær Vibro ● C108377.002 / V05 UNRESTRICTED DOCUMENT...

  • Page 93: Appendix 2: Additional Documentation

    Brüel & Kjær Vibro │ Instructions BKV Wireless Sensor Solution Appendix 2: Additional documentation Document type Document title Document no. Product Specifications BKV Wireless Sensor Solution C108380 and Ordering Information Quickstart Guide BKV Wireless Sensor Solution C108376 Instructions BKV Wireless Sensor Solution C108377 ©...
  • Page 94 Contact Us Brüel & Kjær Vibro GmbH Brüel & Kjær Vibro A/S BK Vibro America Inc. Wittichstrasse 6 Lyngby Hovedgade 94, 5 sal 1100 Mark Circle 64295 Darmstadt 2800 Lyngby Gardnerville NV 89410 Germany Denmark Phone: +49 6151 428 0 Phone: +45 69 89 03 00 Phone:...
