PowerBase 660834 Instruction Manual

PowerBase 660834 Instruction Manual

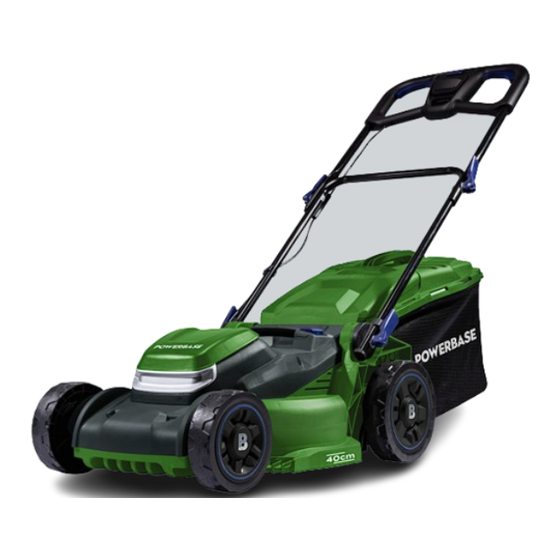

40cm 40v cordless lawn mower

Advertisement

40cm 40V Cordless
Lawn Mower
660834
These instructions contain important information that will help you get the best
from your product, ensuring it is assembled correctly and safely. If you need help
or have damaged or missing parts, call the Customer Helpline on 01904 727 509.
Instruction
Manual
IMPORTANT!
Please read these
instructions fully before
starting assembly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 660834 and is the answer not in the manual?

Questions and answers

dorothy parker
April 6, 2025

how long to recharge batterys for product 660834

1 comments:
Mr. Anderson
April 6, 2025

It takes 120 minutes to recharge the batteries for PowerBase product 660834.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for PowerBase 660834

  • Page 1 IMPORTANT! 40cm 40V Cordless Please read these Lawn Mower 660834 instructions fully before starting assembly. These instructions contain important information that will help you get the best from your product, ensuring it is assembled correctly and safely. If you need help...
  • Page 2: Table Of Contents

    Contents General safety warnings Intended use Warning symbols In the box Assembling the lawn mower Operation Maintenance and storage Troubleshooting Technical data Havs Disposal Getting help Warranty...
  • Page 3: General Safety Warnings

    General Safety Warnings WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”...
  • Page 4 Electrical safety • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. • Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
  • Page 5 Personal safety • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 6 • If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. • Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
  • Page 7 Power tools are dangerous in the hands of untrained users. • Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  • Page 8 • Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. • When a battery pack is not in use, keep it away from other metallic objects, like paper clips, coins, keys, nails, screws or other small metallic objects, that can make a connection from one terminal to...
  • Page 9 Service • Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. • Never service damaged battery packs Service of battery packs should only be performed by the manufacturer or authorised service providers.
  • Page 10 • Do not expose battery packs to heat or fire. Avoid storage in direct sunlight. • Do not subject battery packs to mechanical shock. • In the event of the battery leaking, do not allow the liquid to come into contact with the skin or eyes.
  • Page 11 charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. • Do not use any battery pack which is not designed for use with the equipment.
  • Page 12 • Children should be supervised to ensure that they do not play with the appliance. • Before charging, read the instructions. • After charging, disconnect the battery and charger from the mains supply. Then remove the chassis connection and then the battery connection.
  • Page 13 • When charging batteries, ensure that the battery charger is in a well-ventilated area and away from flammable materials. Batteries can heat up quickly whilst charging. Ensure that batteries and chargers are not left unsupervised during charging. • Do not recharge non-rechargeable batteries, as they can overheat and break.
  • Page 14 foreign objects. Thrown objects can cause personal injury. • Before using the lawn mower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury. •...
  • Page 15 • Do not operate the lawn mower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury. • When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction.
  • Page 16: Intended Use

    Intended Use This lawn mower is designed for domestic lawn mowing only. Use in any other way is considered contrary to the intended use. Compliance with the operation, service and repair, as specified in this manual, also constitutes essential elements of the intended use.
  • Page 17 Avoid using the lawn mower in the rain. Wait until all lawn mower components have completely stopped before touching them. Keep bystanders away. Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation.
  • Page 18 Warning symbols on the battery pack To reduce the risk of injury, the user must read the instruction manual carefully. Do not throw into water. Do not throw on fire. Do not subject the battery to strong sunlight over long periods of time.
  • Page 19: In The Box

    In the Box Parts A. Lawn mower with upper handle B. Grass collection bag C. Lower handle D. Quick-release clamps (fixed in screw) x 2 E. Teeth clamps x 2 F. Quick-release clamps (curved head) x 2 G. Cable clips x 2 H.
  • Page 20: Assembling The Lawn Mower

    Assembling the Lawn Mower Parts Switch box 2. Lower handle 3. Carry handle 4. Battery pack tank cover 5. Front wheel 6. Cutting height adjustment button Rear wheel 8. Grass bag 9. Quick-release clamp 10. Top handle 11. Switch lever...
  • Page 21 WARNING: Ensure the battery pack is disconnected from the mower before starting assembly. Attach the lower handle Attach the two tooth clamps to the lower handle. Attach the lower handle to the lawn mower Install the lower handle to the lawn mower with two quick-release clamps (with fixed in screw).
  • Page 22 Attach the top handle to the lawn mower Mount the top handle to the lower handle using two quick-release clamps (screw with curved head). Fitting the cable clip Ensure that the cable clips supplied are used to fix the cable to the lower handle.
  • Page 23 Attach the grass bag Insert the grass bag handle into the groove of the grass bag. Then press the grass bag handle into the clip of the grass bag, and hear “click” to indicate that the handle is in place. iii.
  • Page 24: Operation

    Operation Charging the battery pack NOTE: The battery pack comes partly charged. Charge the battery pack prior to first use, ideally at least 60 minutes. • Always pull out the plug of the charger from the mains before removing or connecting the battery pack to the charger.
  • Page 25 Digital display: 100% Battery pack fully charged Battery is flat and needs to be No digital display lights charged Charge the battery pack before operating when it is at medium or low battery charging level. Button Digital Display Lights Connect the battery pack to the battery charger. Insert the mains plug into the socket.
  • Page 26 USB- A PORT The USB-A port is on the top cover of the battery pack. Connect your electric device to the USB-A port on the battery pack using the USB-A cable. Push the button to start charging. To obtain the best life from the battery Never allow the battery to completely discharge before recharging.
  • Page 27 Align the battery pack with its compartment on the lawn mower. Push the battery pack into the tank until you hear a click. This means the battery pack has been locked in position, then close the battery pack tank cover. Removing the battery pack from the lawn mower Open the battery pack tank cover.
  • Page 28 Switching on and off Switch on: Press and hold the safety button on the side of the switch box with one hand. 2. Pull the switch bar towards the handle and hold it with the other hand. 3. Release the safety button. Switch off: Release the switch bar.
  • Page 29 Operating the lawn mower WARNING: Ensure the battery pack is disconnected from the mower before making any adjustment, cleaning and maintenance. Operation on a slope: Slopes increase the risk of slip-and-fall accidents, which can result in severe injury. Always be sure of your footing on slopes. Operation on slopes requires extra caution.
  • Page 30 Battery high temperature protection The battery pack will generate heat during operation. The heat dissipates slower in hot weather. If the battery temperature exceeds more than 70°C during operation, the protection circuit will immediately turn off the mower to protect the battery pack from damage.
  • Page 31: Maintenance And Storage

    Maintenance and Storage WARNING: Before performing any maintenance or cleaning work, always ensure that the battery pack/safety key has been removed. Wait until the blade has stopped completely and the machine has cooled down. Cleaning Cleaning the product Use a soft brush to remove accumulated dust and debris. Wear safety glasses to protect your eyes whilst cleaning.
  • Page 32 Use the correct size wrench to uninstall the blade bolt nut. 2. Wearing heavy-duty gloves, hold the blade still and turn the wrench anti-clockwise to remove the bolt. 3. Fit the replacement blade correctly with the markings facing up and align the pegs, refit the bolt and retighten securely to torque 20N.m.
  • Page 33 Transport Use the original packaging to ship whenever possible. Consumable parts Part No. 660834 Powerbase 40cm 40V Part Name Cordless Lawn Mower 1055993000 Grass bag...
  • Page 34: Troubleshooting

    Troubleshooting WARNING! Before performing any repair work, always ensure that the battery pack has been removed. WARNING! Always wear heavy-duty gloves when adjusting or cleaning, especially when handling sharp objects. Fault Possible cause Solution Mower fails to Safety key is Insert safety key start not inserted...
  • Page 35: Technical Data

    Technical Data Property Value Model no. Y0J44040-ZA Nominal voltage of product with 40V(2X20V) / 2.5Ah battery No-load cutting speed 3000min Cutting width 40cm Cutting height 25-75mm, 7 positions Capacity of grass bag Weight 13.6kg Measured sound pressure level(L 79.4dB(A), K=3dB(A) Measured sound power level(L 93.04dB(A), K=1.69dB(A) Guaranteed sound power level...
  • Page 36: Havs

    HAVS WARNING! This equipment may cause Hand-Arm Vibration Syndrome (HAVS) if its use is not adequately monitored and managed. Preventative measures include, among others, regular maintenance and care of the product and cutting attachments, keeping hands warm and periodical breaks, as well as proper planning of work processes.
  • Page 37: Warranty

    Warranty This product is covered by a 3 year warranty. The warranty covers any manufacturing defect in materials, workmanship and finish. Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 3 years of the date of purchase.
