PowerBase 577179 Instruction Manual

32cm 400w electric cylinder lawn mower
Hide thumbs

Advertisement

Table of Contents

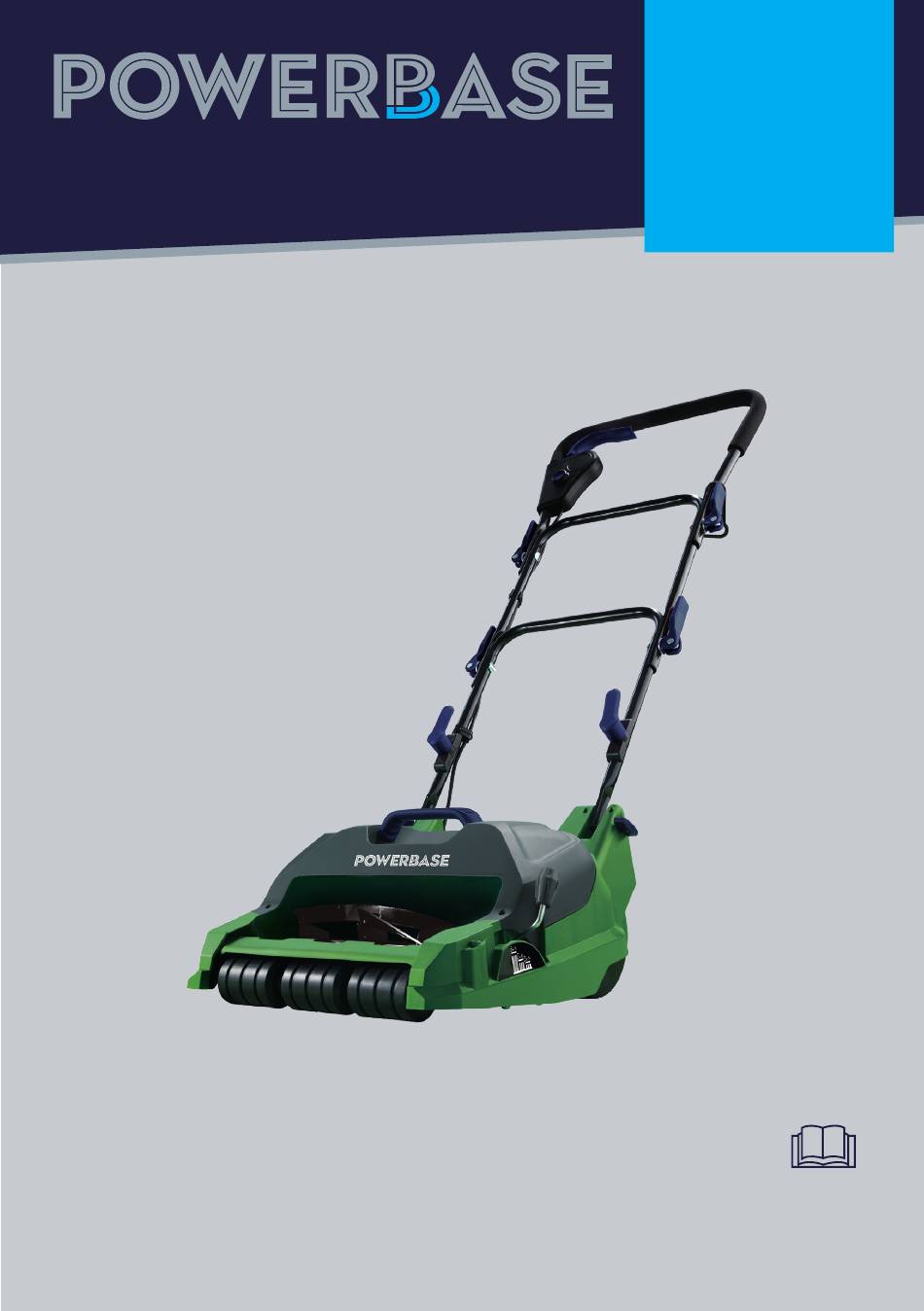

32cm 400W Electric Cylinder
Lawn Mower
These instructions contain important information that will help you get the best
from your product, ensuring it is assembled correctly and safely. If you need help
or have damaged or missing parts, call the Customer Helpline on 01904 727 509.
53cm Self Propelled Petrol
Rotary Lawn Mower
577179
Instruction
Manual
IMPORTANT!
Please read these
instructions fully before
starting assembly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 577179 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerBase 577179

Summary of Contents for PowerBase 577179

  • Page 1 IMPORTANT! 32cm 400W Electric Cylinder Please read these Lawn Mower 577179 instructions fully before starting assembly. These instructions contain important information that will help you get the best from your product, ensuring it is assembled correctly and safely. If you need help...

  • Page 2: Table Of Contents

    Contents Safety Information................3 In the Box.....................14 Assembly....................15 Preparing to Operate the Cylinder Mower....19 Operating the Cylinder Mower..........22 Maintenance and Repair............23 Storage and Transportation..........24 Troubleshooting................26 Technical Data................27 Recycling and Disposal............28 Plug Replacement...............29 Getting Help..................30 Warranty....................31...

  • Page 3: Safety Information

    Safety Information Warning Symbols The following warning symbols appear throughout this assembly manual and indicate the appropriate safety measures you should take when assembling and operating the rear roller cylinder mower. This symbol indicates there is a danger of serious personal injury or death if you do not observe the warning.
  • Page 4 IMPORTANT! Before assembling the rear roller cylinder mower, check all the parts indicated in the manual are in the box. Inspect all the parts for signs of damage. Do not assemble the rear roller cylinder mower if you observe any damaged components.
  • Page 5 Unless they have been given supervision or instruction concerning the use of the product by a person responsible for their safety. 5. Children should be supervised to ensure that they do not play with the product. Warning Symbols Caution/Warning! Read the operator’s manual. The product complies with the applicable European directives and an evaluation method of conformity for...
  • Page 6 Keep bystanders away. Class II equipment. Beware of sharp blades. Blades continue to rotate after the motor is switched off. Remove the plug from the mains before maintenance or if the cord is damaged. Keep the flexible supply cord away from cutting means.
  • Page 7 Recycle unwanted materials instead of disposing of them as household waste. All tools, cables and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally-friendly way. Guaranteed sound power level value in 96dB.
  • Page 8 Safety Information General Safety WARNING! – Keep this operating and maintenance manual in a safe place for future reference. – Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. – Never allow children or people unfamiliar with these instructions to use the rear roller cylinder mower.
  • Page 9 Personal Safety – Use Personal Protective Equipment (PPE). Always wear eye protection and protective equipment, such as a dust mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions, to reduce personal injuries. – Dress appropriately. Do not wear loose clothing or jewellery, as these can be caught in moving parts.
  • Page 10 – Do not touch the rotating blades until they have completely stopped. General Safety – – Be certain the parts are fully tightened before operating the machine. Check periodically for tightness during use, to avoid serious injury. – Risk of injury. Do not touch or try to stop the blades when they are moving.
  • Page 11 – Do not overload the mower. Only work in the performance range stated. Do not use if you do not have sufficient power for heavy jobs. Do not use the mower for any use other than that intended by the manufacturer.
  • Page 12 lawn in private, residential and hobby gardens. Do not force small tools or attachments to do the job of a heavy-duty machine. – Keep work areas clean. Check the terrain on which the mower will be used, and remove stones, sticks, wires or other foreign objects that may be caught up and thrown out.
  • Page 13 sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. – When operating a power tool outside, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. Operation Safety 、...
  • Page 14 instructions and with feet well away from the blade(s). – Do not tilt the lawn mower when switching on the motor, except if the lawn mower has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator.
  • Page 15 g) Replace or repair any damaged parts. h) Check and tighten any loose parts. Maintenance and Storage – Maintain with care. Keep equipment clean and in good condition for better and safer performance. Follow the instructions for maintenance and changing accessories. Keep handles and switches dry, clean and free from oil and grease.

  • Page 16: In The Box

    In the Box Parts A. Main unit with upper handle B. Lower handle C. Grass bag D. CAM levers x 4 E. Cable clips x 2 F. Cable retainer G. Screws x 2 H. Middle handle If there are any parts missing, please call the customer helpline on 01904 727509.

  • Page 17: Assembly

    Assembly Preparing to assemble the Rear Roller Cylinder Mower Remove all parts of the rear roller cylinder mower from the box and carefully remove all packaging. Take care not to lose any instructions which may be attached to the parts. These provide important information, which will be required while assembling the rear roller cylinder mower.
  • Page 18 Step 2 - Assembling the middle and upper handles Slide the cord retainer onto the middle handle, sliding it around to the top of the handle so it does not fall off during the following assembly steps. 2. Slide the middle handle into the profiled area of the lower handle frame.
  • Page 19 Step 4 - Fitting the grass box extension plastic part Assembling the grass bag/frame Assembling the grass bag to the machine Fix all of the P-Clip plastic extrusions over the metal frame. 2. When assembling the grass bag onto the machine, lift the front plastic cross strap and locate the pins into the slot holes on the deck.
  • Page 20 – This rear roller cylinder mower is fitted with a non-rewireable plug. If it is necessary to change the fuse in the plug or the fuse cover becomes loose or damaged, the plug must not be used until a suitable replacement is obtained. A 13amp fuse must be fitted.

  • Page 21: Preparing To Operate The Cylinder Mower

    Preparing to Operate the Mower Preparing to operate the rear roller cylinder mower Always wear safety gloves when doing any work on the rear roller cylinder mower. WARNING! Always unplug the power cord from the power source before doing any work on the rear roller cylinder mower.
  • Page 22 Step 2 - Switch on/off CAUTION! For your safety, this machine is equipped with a double switch system. This system prevents starting the mower inadvertently. You must press the switch lock button (A) first before pulling the switch lever (B). WARNING! Never attempt to pull the switch lever without pressing the switch lock button first! Switching ON...
  • Page 23 Turn the mower upside down and use a screwdriver to turn each adjustment screw, as shown above, clockwise a little at a time. 2. Wearing gloves, carefully rotate the cutting cylinder (C) by hand to ensure it very lightly brushes across the whole width of the bottom blade.

  • Page 24: Operating The Cylinder Mower

    Operating the Cylinder Mower Operating WARNING! – Always keep a firm grip on the machine with both hands and watch your feet. The blades may cause an accident. Be careful while moving backwards - there is a danger of tripping! To avoid damage to the rear roller cylinder mower: –...

  • Page 25: Maintenance And Repair

    Maintenance and Repair Cleaning, Maintenance and Repair WARNING! Always switch the product off and let it cool down before performing inspection, maintenance and cleaning work! After every use Clean the product with a slightly damp cloth and pH-neutral soap. Use a brush for areas that are hard to reach. 2.
  • Page 26 Storage and Transportation Cable tidy system cable clip cable hook After use, wrap your extension cable around the cable hooks and secure the plug in place. To release the extension cable for using the machine, just rotate the cable hook. Handle positions for storage Handle - operating Handle - park...
  • Page 27 3. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles. 4. Secure the product to prevent it from slipping or falling over. Plug Replacement Replacing the Plug Your rear roller cylinder mower is fitted with a moulded plug; however, if you need to replace a fitted plug then follow the instructions below.

  • Page 28: Troubleshooting

    Troubleshooting General Troubleshooting WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist, if you cannot solve the problem yourself! Problem Possible cause Solution Product...

  • Page 29: Technical Data

    Excessive 1. Cutting blades 1. Contact customer vibration/ damaged helpline noise 2. Cutting blades 2. Blades require not adjusted evenly adjustment (see ‘Adjusting the blade clearance’) Rollers do Roller is blocked by Clean all roller slots not rotate debris Technical Data Technical Data Table WARNING! The vibration emission value during actual use of the tool can differ from the declared value, depending on...
  • Page 30 HAVS WARNING! This equipment may cause Hand-Arm Vibration Syndrome (HAVS) if its use is not adequately monitored and managed. Preventative measures include, among others, regular maintenance and care of the product and cutting attachments, keeping hands warm and periodical breaks, as well as proper planning of work processes.

  • Page 31: Getting Help

    Getting Help Our dedicated UK-based customer helpline is open 7 days a week to assist you with assembly, parts queries and technical support. We are open during office hours but you can always send an email via support@coreservice.co.uk. Our experts are here to get you back enjoying your garden in no time.
