Active Controls ActiveStart ACS20PT Installation, Operation & Application Manual

Installation, Operation & Application Guide
For further information visit us at www.active-controlsllc.com.
Important Safety Information
Fully Insert all plugs.

Keep away from children and pets.

Do not repair or modify.

For outdoor use only.

Store indoors when not in use.

Features
 Starting current reduction and programable
startup power.
 Mobile app is Bluetooth-enabled and
compatible with iOS and Android devices.
 Built in Surge protection.
 Waterproof, UV-proof module resists weather
extremes.
 Anti-theft design to easily secure to power
source.
 Diagnostic LED indicators inside of box for
technicians.

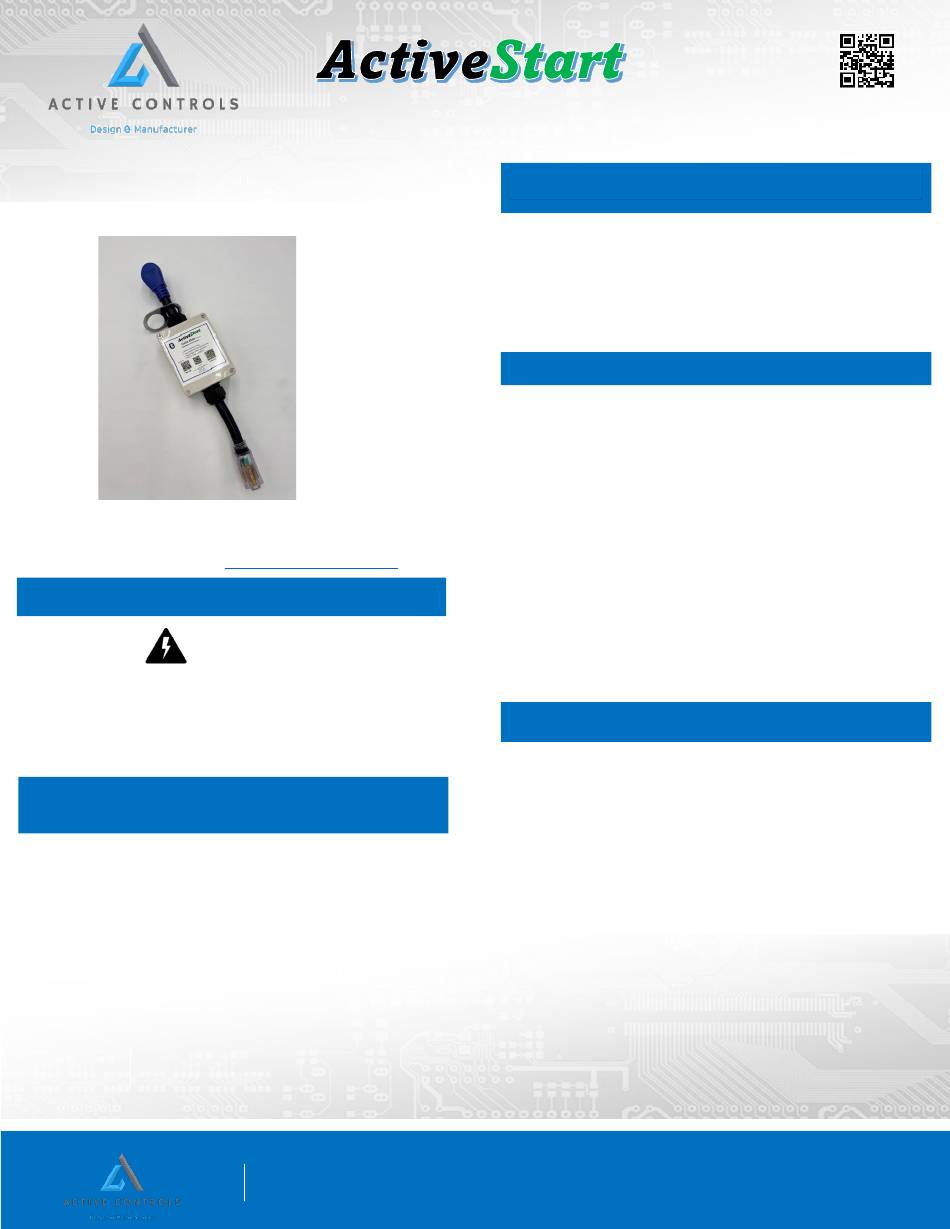

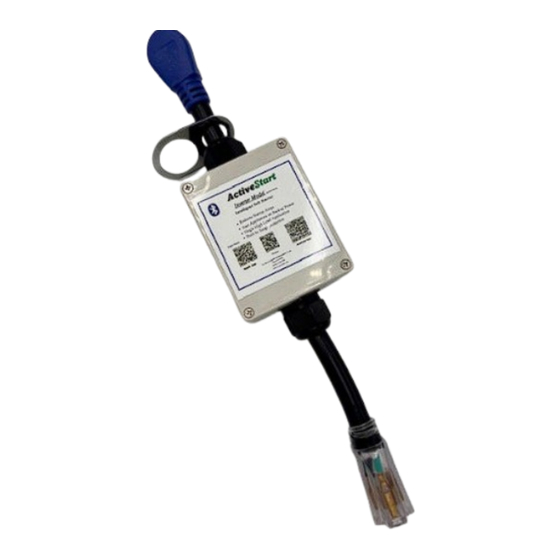

ACS20PT
SoftStarter
Designed and
Assembled in
the USA
Application
The ACS20PT (20amps) is intended for starting a single high load
such as a table saw or other power tools with a high starting
current. The Power Tools starter is monitoring the current and
when it detects a rise in the current it will enter the softstart
mode and limit the current. These devices will monitor system
health including current, voltage, frequency, with programmable
startup power.
S
PECIFICATIONS
Inputs: L1 & N.

Nominal Voltage: 120 VAC, 50-60 Hz.

Over Voltage Limits: =132 VAC.

Under Voltage Limits: =103 VAC.

Surge Protection: 2100 Joules.

Current: Maximum nominal= 20 Amp and 30 Amp.

Over Current Limits:

ACS20P = 22A.
Operating Temperature: -4

Storage Temperature: -40

Humidity: 5-95% Non-considering.

Weight: 2.1 Lbs. (0.95kg).

Warranty: One year limited warranty (standard)

Installation
1. Plug unit into your most convenient power source or
generator.
2. Allow self-diagnostic function to determine if power is
good.
3. After 45-60 seconds, the Output LED will indicate when
there is "live" power.
4. Plug the appliance power cord into the ActiveStart
outlet.
If the Output LED shuts off and power to the appliance is off, that
indicates a Power fault related to Current, Voltage or any other
fault that has occurred. The Mobile App will show the cause of
the shutdown.
