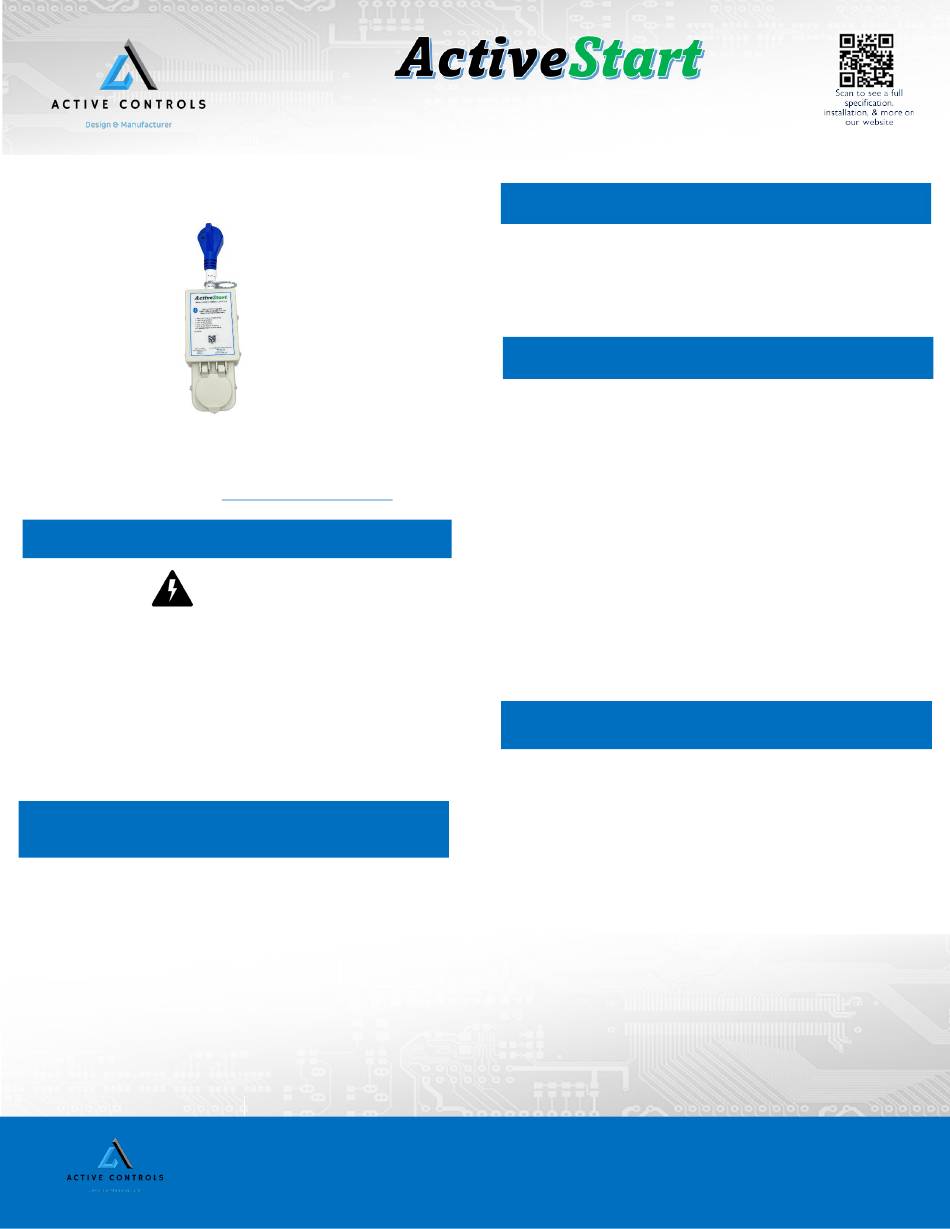

Active Controls ActiveStart ACS30 Series Installation, Operation & Application Manual

Installation, Operation & Application Guide
For further information visit us at www.active-controlsllc.com.
Important Safety Information
Fully Insert all plugs.

Keep away from children and pets.

Do not repair or modify.

For outdoor use only.

Store indoors when not in use.

Please ensure all connections are tight for wired version

Features
 Starting current reduction (50%) and programable
startup power.
 Two independent starting circuits for better starting
capability.
 Mobile app is Bluetooth-enabled and compatible with
iOS and Android devices.
 Built in EMS and Surge protection per power leg.
 Waterproof, UV-proof module resists weather extremes.
 Anti-theft design to easily secure to power source.
 Diagnostic LED indicators inside of box for technicians.
EMS, Surge and SoftStarter
If power to the RV/house/boat is off, that indicates a Power Alert
related to Current, Voltage or any other fault that has occurred.
The Mobile App will show the cause of the shutdown. The unit
will automatically reset and turn on the outputs after a 2-3
minute delay. This will occur 3 times before user reset is required.
Designed and
Assembled in
the USA

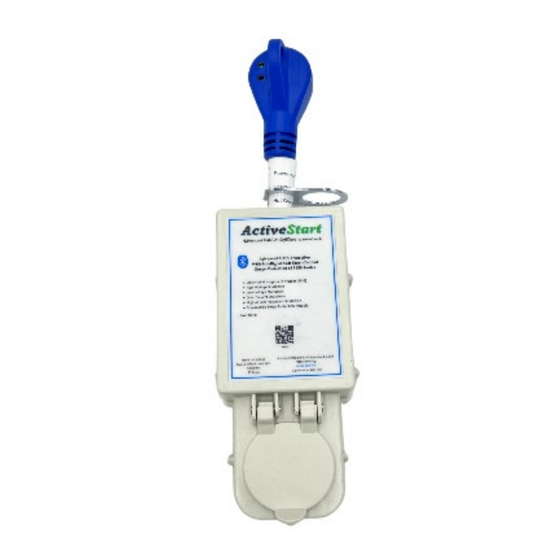

ACS30xx
Application
The ACS30xx is intended for recreational vehicle (RV), residential,
and commercial applications. The ACS30M is an ActiveStart
Marine version for boats. These devices will monitor system
health including current, voltage, frequency, and have
programmable startup power.
S
PECIFICATIONS
Inputs: L1, N and Ground

Nominal Voltage: 120 VAC, 50-60 Hz.

Over Voltage Limits: 132 VAC per leg

Under Voltage Limits: 103 VAC per leg

Surge Protection: 3150 Joules

Current: Maximum nominal= 30 Amps

Over Current Limits:

ACS30xx = 33A
Operating Temperature: -4

Storage Temperature: -40

Humidity: 5-95% Non-condensing

Weight: 4 Lbs. (1.81kg)

Warranty: One year limited warranty (standard)

Installation
1. Plug unit into your most convenient power pedestal or
generator.
2. Allow self-diagnostic function to determine correct
polarity. If Input LED is green only, then the source
power is ready to use.
3. After 45-60 seconds, the green Output LED will indicate
when there is "live" power on marine cables only.
4. Plug the RV, residential, and/or boat power cord into
the ActiveStart outlet.
2003 West McNab Road STE 1, Pompano Beach FL 33069
Email: sales@active-controlsllc.com Call: 754-307-1303
www.active-controlsllc.com
º ºF (-20ºC to 80ºC)
F to 176
º ºF (-20ºC to 65ºC)
F to 149
