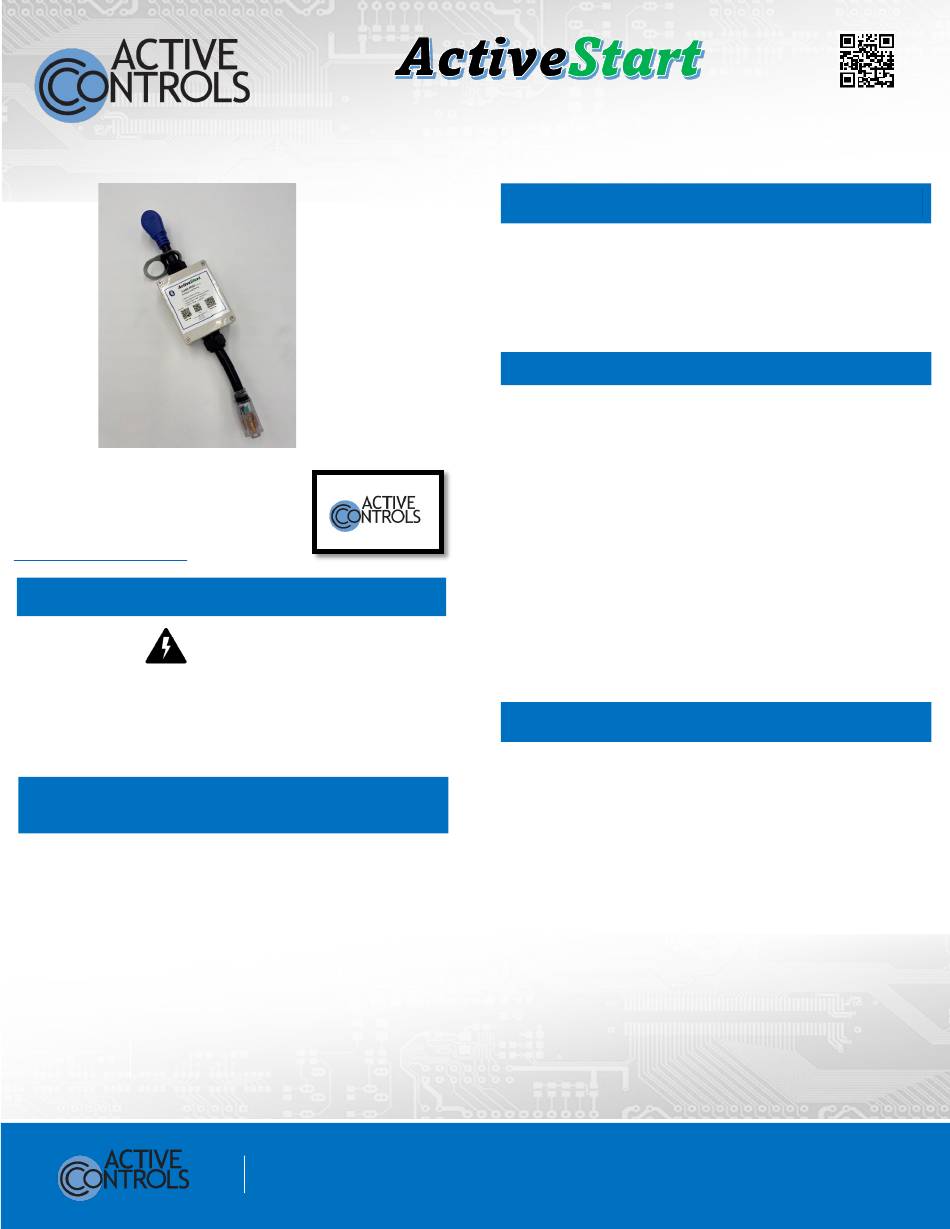

Active Controls ActiveStart SoftStarter ACS20PIM Installation, Operation & Application Manual

Installation, Operation &
Application Guide
For further information visit us at
www.active-controlsllc.com.
Important Safety Information
Fully Insert all plugs.

Keep away from children and pets.

Do not repair or modify.

For outdoor use only.

Store indoors when not in use.

Features
 Starting current reduction and programable
startup power.
 Mobile app is Bluetooth-enabled and
compatible with iOS and Android devices.
 Built in Surge protection.
 Waterproof, UV-proof module resists weather
extremes.
 Anti-theft design to easily secure to power
source.
 Diagnostic LED indicators inside of box for
technicians.
Designed and
Assembled in
the USA

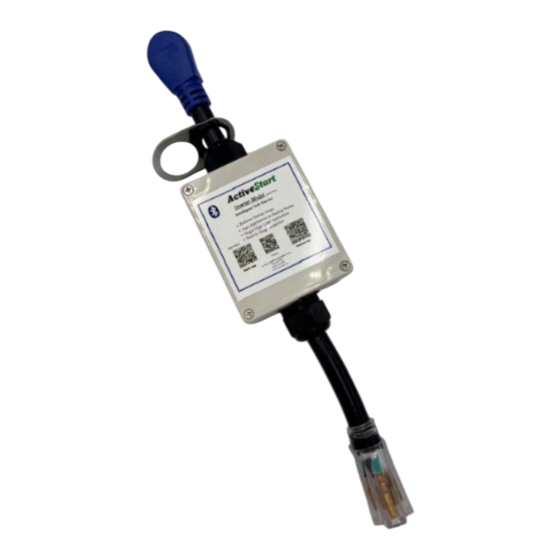

ACS20PIM
SoftStarter
Application
The ACS20PIM (20amps) is intended for starting a single high load
such as an air conditioner or freezer. This will allow other minor
loads to run on the unit but only 1 large motor will be started until
unit resets for next load. These devices will monitor system health
including current, voltage, frequency, with programmable startup
power.
S
PECIFICATIONS
Inputs: L1 & N.

Nominal Voltage: 120 VAC, 50-60 Hz.

Over Voltage Limits: =132 VAC.

Under Voltage Limits: =103 VAC.

Surge Protection: 2100 Joules.

Current: Maximum nominal= 20 Amp and 30 Amp.

Over Current Limits:

ACS20P = 22A.
Operating Temperature: -4

Storage Temperature: -40

Humidity: 5-95% Non-considering.

Weight: 2.1 Lbs. (0.95kg).

Warranty: One year limited warranty (standard)

Installation
1. Plug unit into your most convenient power source or
generator.
2. Allow self-diagnostic function to determine if power is
good.
3. After 45-60 seconds, the Output LED will indicate when
there is "live" power.
4. Plug the RV, or appliance power cord into the
ActiveStart outlet.
If the Output LED shuts off and power to the RV/house or
appliance is off, that indicates a Power Alert related to Current,
Voltage or any other fault that has occurred. The Mobile App will
show the cause of the shutdown.
2003 West McNab Road STE 1, Pompano Beach FL 33069
Email: sales@active-controlsllc.com Call: 754-307-1303
www.active-controlsllc.com
Scan to see a full
specification,
installation, & more on
our website
º ºF (-20ºC to 80ºC)
F to 176
º ºF (-20ºC to 65ºC)
F to 149
