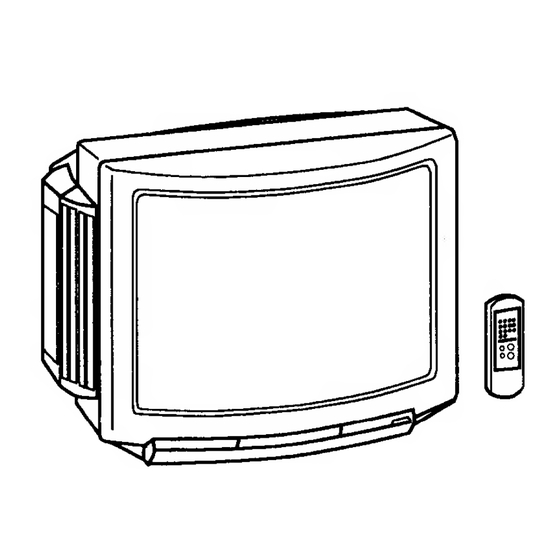

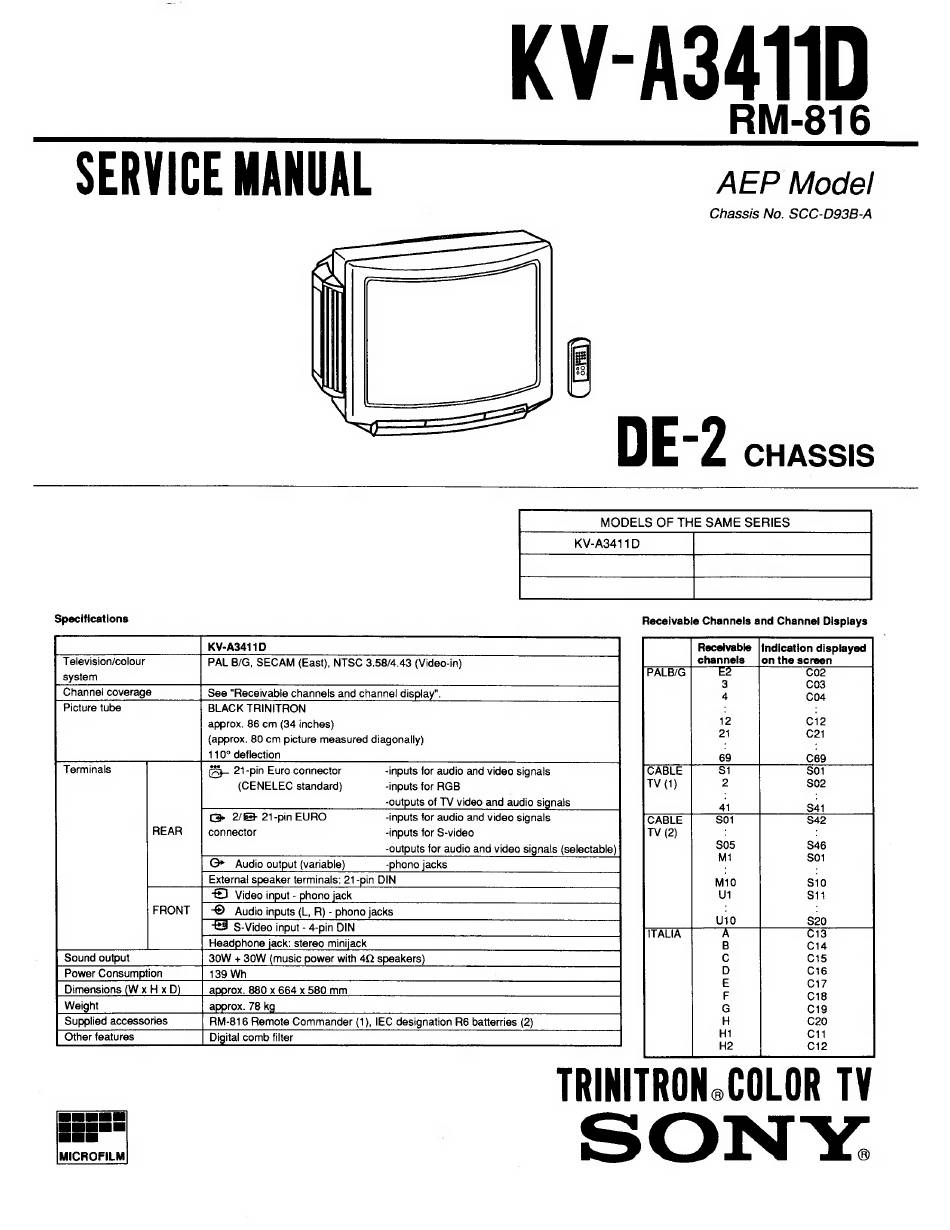

Sony TRINITRON KV-A3411D Service Manual

SERVICE MAN
EZ
411D
RM-816
AEP Model
Chassis No. SCC-D93B-A
CHASSIS
Specifications
JJ TT s
Television/colour PAL B/G, SECAM (East), NTSC 3.58/4.43 (Video-in)
11 ia
See "Receivable channels and channel display".
Picture tube BLACK TRINITRON
approx. 86 cm (34 inches)
ME (approx. 80 cm picture measured diagonally)
110? deflection
Terminals + 21-pin Euro connector -inputs for audio and video signals
(CENELEC standard) -inputs for RGB
-outputs of TV video and audio signals
Ca 2/Е% 21-pin EURO -inputs for audio and video signals
REAR connector -inputs for S-video
-outputs for audio and video signals (selectable)
©» Audio output (variable) -phono jacks
External speaker terminals: 21-pin DIN
£J Video input |
FRONT | © Audio inputs (L, R) - phono jacks
3 S-Video input - 4-ріп DIN
Headphone jack: stereo minijack
30W + 30W (music power with 4Q speakers)
139 Wh
approx, 880 x 664 x 580 mm
approx. 78 kg
RM-816 Remote Commander (1), IEC designation R6 batterries (2)
Digital comb filter
MODELS OF THE SAME SERIES
KV-A3411D
PALB/G
Receivable |Indication displayed
channels [on the screen
3
4
ITALIA
Бтоттоош>»
TRINITRON. COLOR TV
