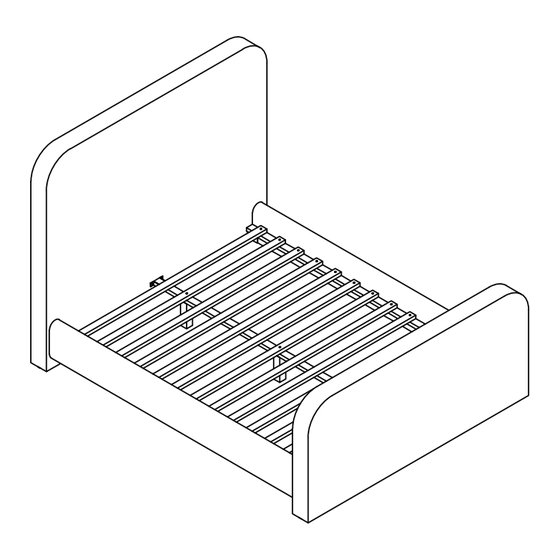

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 302052Q (B1-B3) Queen Bed REVISION 0: 11/02/2023 PAGE 1 OF 5 COASTERFURNITURE.COM...
-
Page 2: Assembly Instruction
302052Q (B1-B3) ITEM: ASSEMBLY INSTRUCTION ASSEMBLY TI PS: 1. Remove hardware from box and sort by size. 2.Please check to see that all hardware and parts a represent prior to start of assembly. 3.Please follow attached instruction in the same sequenceas numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
1.Don't attempt to repair or modify parts that are broken or defective. Please contact the store immediately. 2.This product is for home use only and not intended for commercial establishment. HARDWARE IDENTIFICATION Z-B3 (BOX3) - HARDWARE PACK IS LOCATED IN 302052Q (B3) ALLEN WRENCH (5mm - RBW) - Page 4 STEP 1 STEP 2 P AGE 4 OF 5 AGE 3 OF 4 COASTERFURNITURE.COM...
- Page 5 STEP 3 STEP 4 P AGE 5 OF 5 AGE 3 OF 4 COASTERFURNITURE.COM...
- Page 6 302052Q (B1-B3) ITEM: Inner size: 60.00"W x 80.00"D 72.25" 60.00'' 59.50" 32.25" 7.00'' 5.00" 1.00" 81.00" 91.00" 72.25" Note: Dimension tolerance ±5% COASTERFURNITURE.COM...
