Summary of Contents for Coaster 302046KE

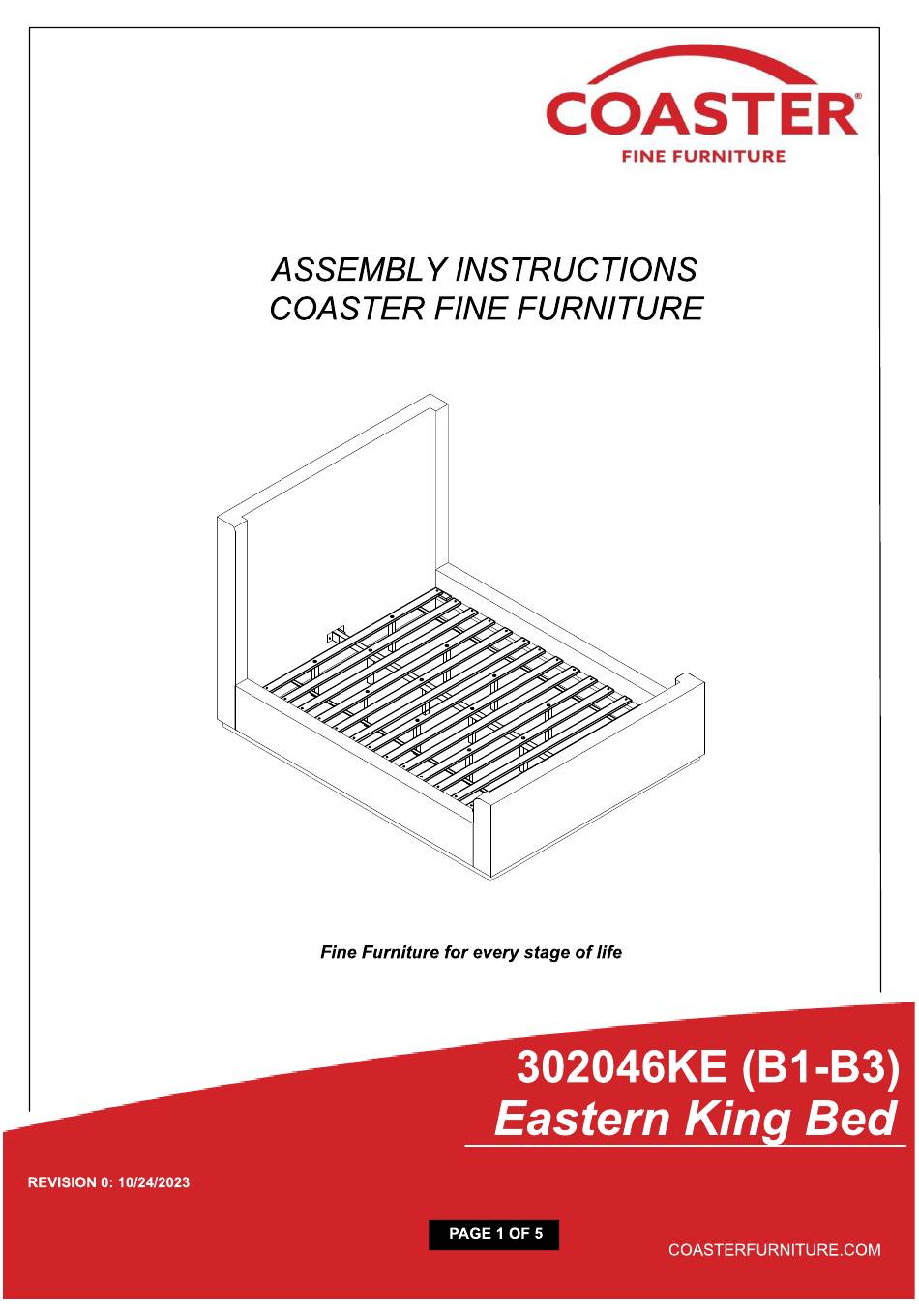

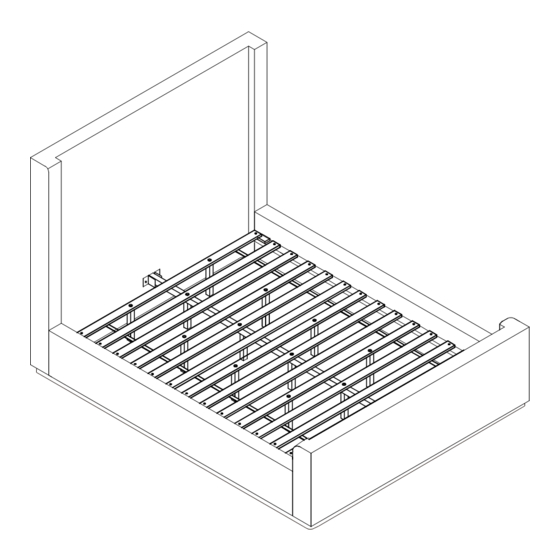

- Page 2 302046KE (B1-B3) ITEM ASSEMBLY INSTRUCTION ASSEMBLY TI PS: 1. Remove hardware from box and sort by size. 2.Please check to see that all hardware and parts a represent prior to start of assembly. 3.Please follow attached instruction in the same sequenceas numbered to assure fast & easy assembly.
- Page 3 1.Don't attempt to repair or modify parts that are broken or defective. Please contact the store immediately. 2.This product is for home use only and not intended for commercial establishment. HARDWARE IDENTIFICATION Z-B3 (BOX3) - HARDWARE PACK IS LOCATED IN 302046KE (B3) 1 ALLEN WRENCH (5mm - RBW)
- Page 4 302046KE (B1-B3) ITEM...
- Page 5 302046KE (B1-B3) ITEM...
- Page 6 302046KE (B1-B3) ITEM 76.00'' 8.25'' 87.25'' Note: Dimension tolerance ± 5%...
