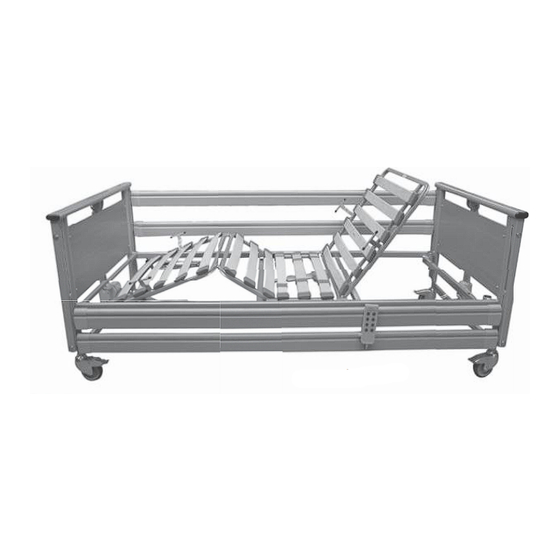

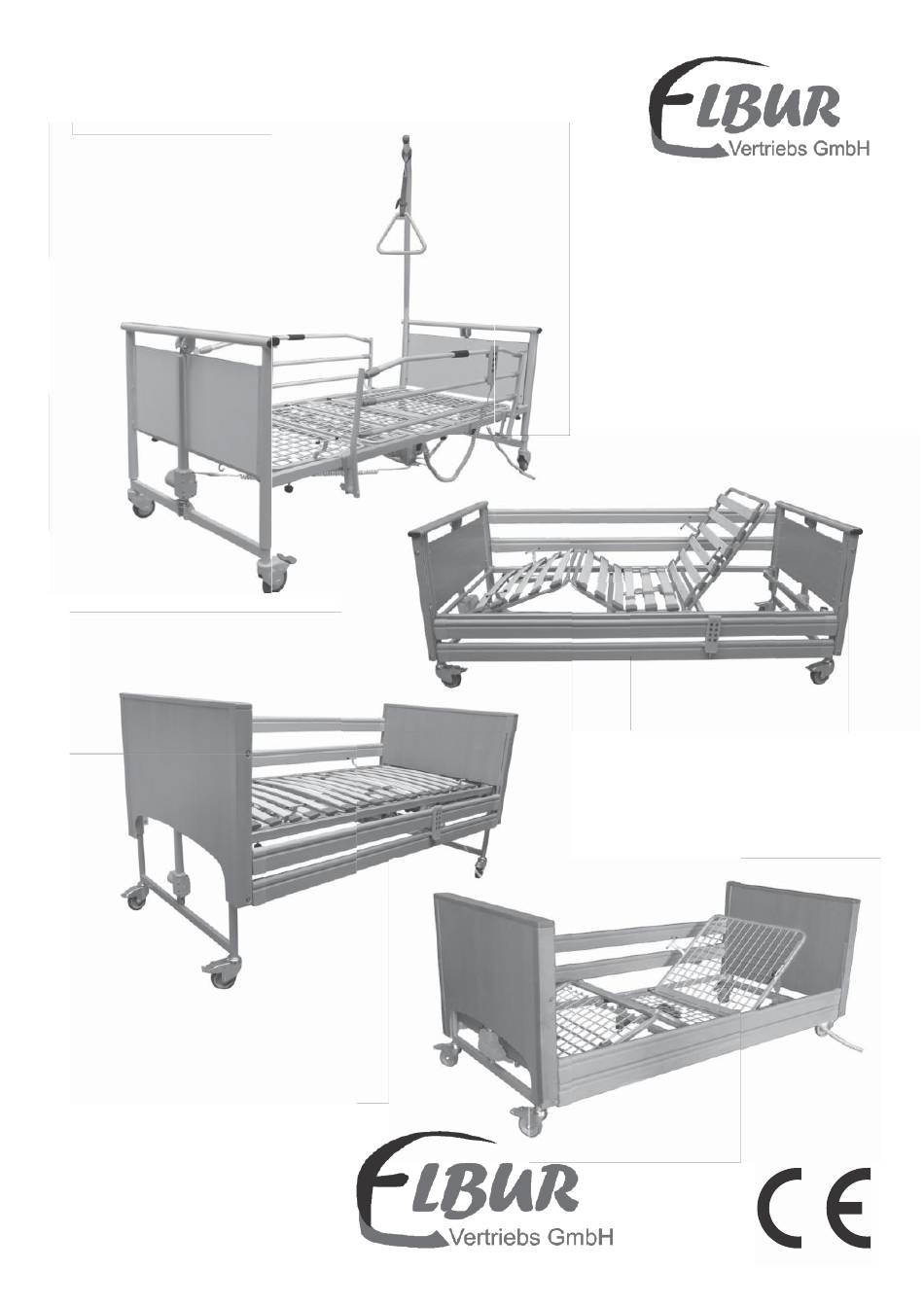

- Page 1 NURSING BEDS: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T OPERATING MANUAL PB 321T PB 321T PB 331T PB 325T PB 337T...
- Page 2 OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T Elbur nursing beds by Elbur are manufactured using the most modern technical achievements to ensure the highest comfort possible. Their great value is simple handling and operation.
-
Page 3: Table Of Contents
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T 1.0 Safety instructions 1.1 Symbols used 1.2 Proper use 1.3 General information 1.4 Notes on electrical fittings 1.5 Notes for nursing personnel 1.6 Notes on setting up the nursing beds 1.7 Notes on maintenance and inspection... -
Page 4: Safety Information
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T 1.4 Notes on electrical fittings 1.0 Safety information Risk of short-circuit and fire! 1.1 Symbols used • Always ensure that the mains cable cannot be run This instruction manual contains the following symbols over when moving the nursing bed or by cleaning. -
Page 5: Notes On Setting Up The Nursing Beds
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T Danger due to the nursing bed lifted too high! • Always move the nursing bed to the lowest height when unsupervised or for entering or exiting the bed. - Page 6 OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T Nursing bed models PB 321T PB 325T PB 331T PB 337T...
-
Page 7: Extent Of Delivery
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T Carton box with accessories 2.0 Extent of delivery 1 x mattress support motor with a control unit All components are on a transport 1 x mattress support motor... -
Page 8: Mattress Support
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T 3.3 Angle adjustment foot section using Rastomat Mattress support motor The Rastomat mounted at the foot end of the mattress support enables incremental adjustment of the lower leg adjustment. -
Page 9: Preparation When Supplied With Transport System
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T 4.2 Preparation when supplied with transport system 4.4 Fixing the bed ends Pull the raising mechanism out of the transport system Loosen the safety screw and remove one end from the and remove all cartons. -
Page 10: Inserting The Mattress Support Motor With Control Unit In The Head Section
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T 4.6 Inserting the mattress support motor with control Place the motor end between the mattress support re- unit in the head section ceptacles. Insert the quick-release bolt and secure by closing the retainer. -
Page 11: Installing The Bed Rails
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T NOTE: 4.10 Installing the bed rails (applies to ELBUR PB 326, The guide groove at the sleeve must match the bolt lo- ELBUR PB 331 only) cated over the raising mechanism tube. -
Page 12: Operating The Nursing Bed
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T 6.0 Operating the nursing bed Always check that the mains cable, the mains socket and plug are in perfect working order before plugging the Accident hazard! bed in. -
Page 13: Hand Set
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T 6.4 Hand set The key being in the handset can interrupt the function of the handset. As soon as you move the key below on the left from the handset, the hand service is not active any more. -
Page 14: Adjusting The Slatted Frame Springiness
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T 6.8 Adjusting the slatted frame springiness Wooden and wood-based elements The springiness for the individual slats can be adjusted Use a spray for wood supplied by Elbur to clean and using the 6 bars fixed to the centre of the slatted frame. -
Page 15: Inspection Plan
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T mains cable and mains plug. Route the mains cable so that it cannot be crushed or run over. 6-monthly inspection Lock all adjustment functions at the hand set. -
Page 16: Check List
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T 10.1 Check list DEFECT Visible inspection of parts for wear deformation, and damage Mattress support and its plastic elements Bedframe side panels Bedframe head and foot... -
Page 17: Troubleshooting
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T Cable fixings Tension protection Anti-kink sheaths Performance inspection of electrical components Motor switch-off caused by limit position switches Switch-off is working correctly if: The switching noise in the switch-off relay is audible Motors (noises, speed) 11.0 Troubleshooting... -
Page 18: Storage Of The Nursing Bed
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T 12.0 Storage of the nursing bed Please proceed as follows to store the nursing bed: Dismantling the nursing bed Remove raising mechanism. Secure the mattress support with the retaining belts on the bed frames. -
Page 19: Technical Data
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T 14.0 Technical data General conditions Storage temperature: + 5°C bis + 45°C Storage humidity: 30% bis 75% Max. working load 180,0 kg Raising mechanism 80,0 kg... -
Page 20: Nursing Bed Labelling
OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T 15.0 Nursing bed labelling Elbur gives a guarantee of 24 months perfect functioning for The nameplate is located on the bed end of the nursing the nursing bed. - Page 21 OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T...
- Page 22 OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T...
- Page 23 OPERATING MANUAL: ELBUR PB 321T, ELBUR PB 325T, ELBUR PB 331T, ELBUR PB 337T...
