Summary of Contents for Bush BIE7030FF

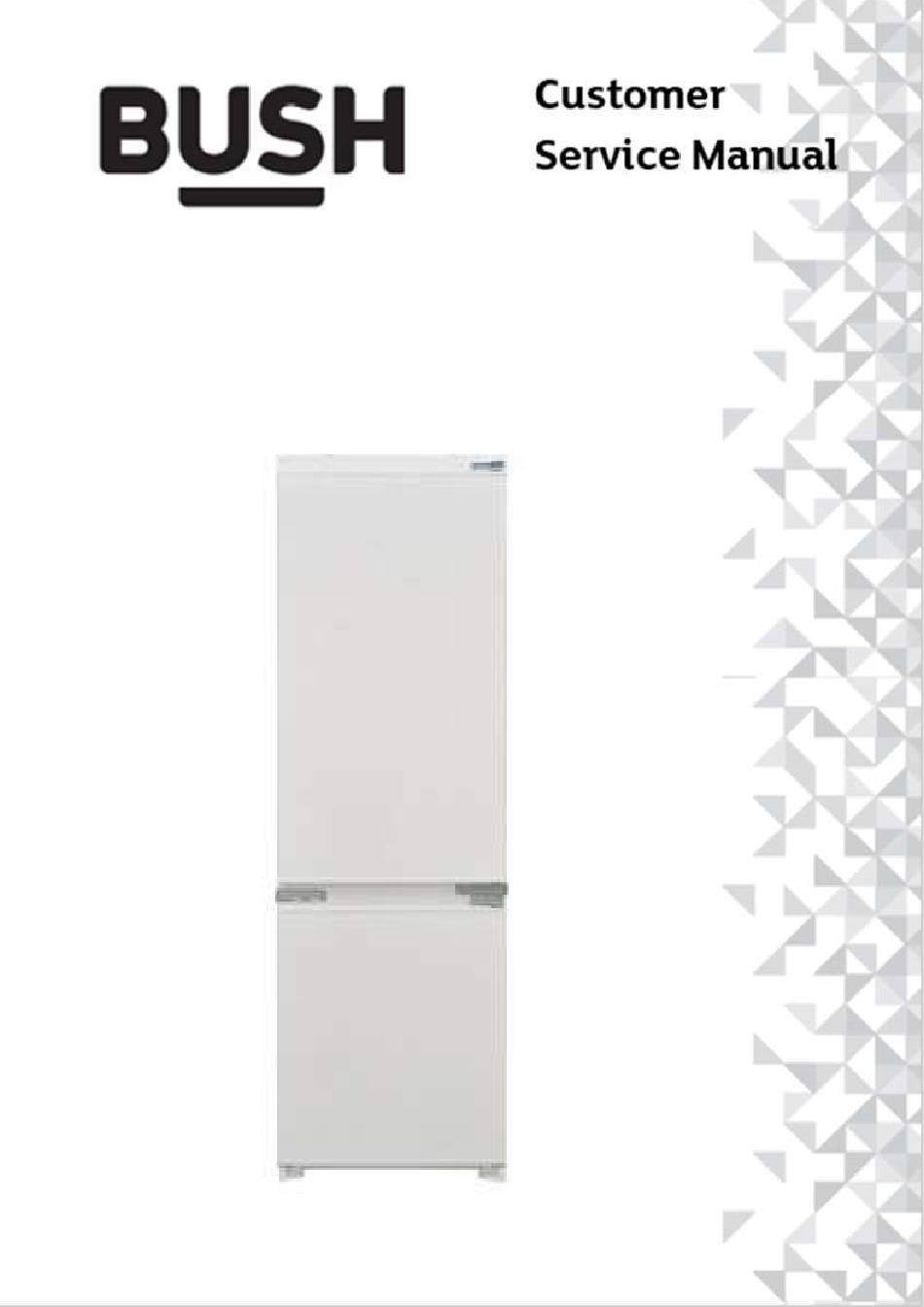

  • Page 1 BIE7030FF BIE7030FFE...

  • Page 2: Table Of Contents

    Customer service manual Contents Precautions Page 3 Tools for disassembly and reassembly Page 4 Door hinges Page 5 Glass shelf Page 6 Flap Cover Page 7 Door Shelf Page 8 Adjustable Door Shelf Page 9 Basket, Chiller, Crisper Change Page 10 Maxifresh Change Page 11 Door gaskets...

  • Page 3: Precautions

    SAFETY PRECAUTIONS...

  • Page 5: Replacement Procedure

    Applicable models REPLACEMENT PROCEDURE General Part name Door hinge 1 - Unscrew the two screws fixing the top hinge (Pic-1) and remove the refrigerator door. (Pic-2) 2 - Unscrew the two screws fixing the middle hinge side bracket and remove it. (Pic-3) 3.

  • Page 6: Glass Shelf

    Applicable models REPLACEMENT PROCEDURE General Part name Glass Shelf First gently lift the front side of glass up. Then you can pull the glass out by directly pulling towards yourself.

  • Page 7: Flap Cover

    Applicable models REPLACEMENT PROCEDURE General Part name Flap Cover First open the flap slightly, now push the flap up from its bottom edge, focusing on only one side. When the flap is freed from this side, repeat same operation for the other side.

  • Page 8: Door Shelf

    Applicable models REPLACEMENT PROCEDURE General Part name Door Shelf Gently pull the shelf up using both hands, without bending or twisting the shelf. When shelf is free from assembly details on right and left side, you can take the shelf out by pulling to yourself.

  • Page 9: Adjustable Door Shelf

    Applicable models REPLACEMENT PROCEDURE General Part name Adjustable Door Shelf First grip the door shelf by both hands, at the same time using your thumbs, pull latches on sides towards yourself. This will unlock the mechanism, so you can lift the shelf all the way up and free the shelf from its guides on the door.

  • Page 10: Basket, Chiller, Crisper Change

    Applicable models REPLACEMENT PROCEDURE General Part name Basket, Chiller, Crisper Change First pull the basket out until it reaches end position. Then gently pull front side up until frees from its guides on the sides. Finally continue pulling it out and remove it from place.

  • Page 11: Maxifresh Change

    Applicable models REPLACEMENT PROCEDURE General Part name Maxifresh Change...

  • Page 12: Door Gaskets

    Applicable models REPLACEMENT PROCEDURE General Part name Door Gasket After the replacement check if there any non-fitting point on the gasket. Also check if there any opening at the gasket while the door is closed. If so that might cause condensation/icing or insufficient cooling/freezing.
  • Page 13 The following parts are available for the customer to undertake repairs at their own risk. Please carefully follow the guidance given in this manual including all safety measures. • Door • Door hinge and seals • Other seals • Door locking assembly •...
