Summary of Contents for Bush BIEF7030FF
-
Page 2: Table Of Contents

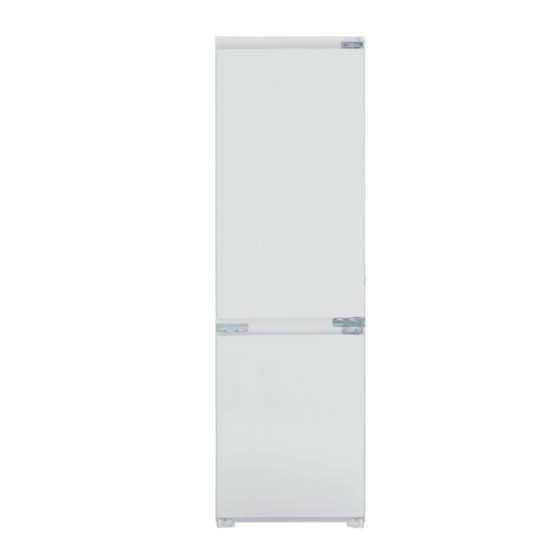

Customer service manual Bush Built-In Combi Fridge – Freezer BIE7030FF Contents Precautions Page 2 Door Page 4 Glass Shelf Change Page 6 Flap Cover Change Page 7 Door Shelf Change Page 8 Adjustable Door Shelf Change Page 9 Basket, Chiller, Crisper Change... - Page 3 SAFETY PRECAUTIONS...
-
Page 4: Door
Applicable models REPLACEMENT PROCEDURE General Part name Door Changing the Door Swing Direction to Right Hand 1 - Unscrew the two screws fixing the top hinge (Pic-1) and remove the refrigerator door. (Pic-2) Picture-2 Picture-1 2 - Unscrew the two screws fixing the middle hinge side bracket and remove it. (Pic-3) Picture-3 3. - Page 5 Applicable models REPLACEMENT PROCEDURE General Part name Door 6-Assemble the refrigerator door. Rotate the middle hinge by 1800and screw it to the left side. (Pic-9) Than screw the middle hinge side bracket on the middle hinge. (Pic-10) Picture-10 Picture-9 7-Remove the top hinge screw caps (big) on the left side (Pic-11) and insert them to the right side. (Pic-12) (You can find the new caps in the user manual bag) Picture-11 Picture-12...
-
Page 6: Glass Shelf Change
Applicable models REPLACEMENT PROCEDURE General Part name Glass Shelf Change First gently lift the front side of glass up. Then you can pull the glass out by directly pulling towards yourself. -
Page 7: Flap Cover Change
Applicable models REPLACEMENT PROCEDURE General Part name Flap Cover Change First open the flap slightly, now push the flap up from its bottom edge, focusing on only one side. When the flap is freed from this side, repeat same operation for the other side. -
Page 8: Door Shelf Change
Applicable models REPLACEMENT PROCEDURE General Part name Door Shelf Change Gently pull the shelf up using both hands, without bending or twisting the shelf. When shelf is free from assembly details on right and left side, you can take the shelf out by pulling to yourself. -
Page 9: Adjustable Door Shelf Change
Applicable models REPLACEMENT PROCEDURE General Part name Adjustable Door Shelf Change First grip the door shelf by both hands, at the same time using your thumbs, pull latches on sides towards yourself. This will unlock the mechanism, so you can lift the shelf all the way up and free the shelf from its guides on the door. -
Page 10: Basket, Chiller, Crisper Change
Applicable models REPLACEMENT PROCEDURE General Part name Basket, Chiller, Crisper Change First pull the basket out until it reaches end position. Then gently pull front side up until frees from its guides on the sides. Finally continue pulling it out and remove it from place... -
Page 11: Maxifresh Change
Applicable models REPLACEMENT PROCEDURE General Part name Maxifresh Change Applicable models... -
Page 12: Thermostat Setting
REPLACEMENT PROCEDURE General Part name Thermostat Setting... -
Page 13: Additional Support
Applicable models ADDITIONAL SUPPORT General The following parts are available for the customer to undertake repairs at their own risk. Please carefully follow the guidance given in this manual including all safety measures. • Door Handles • Door Hinges • Trays •...
